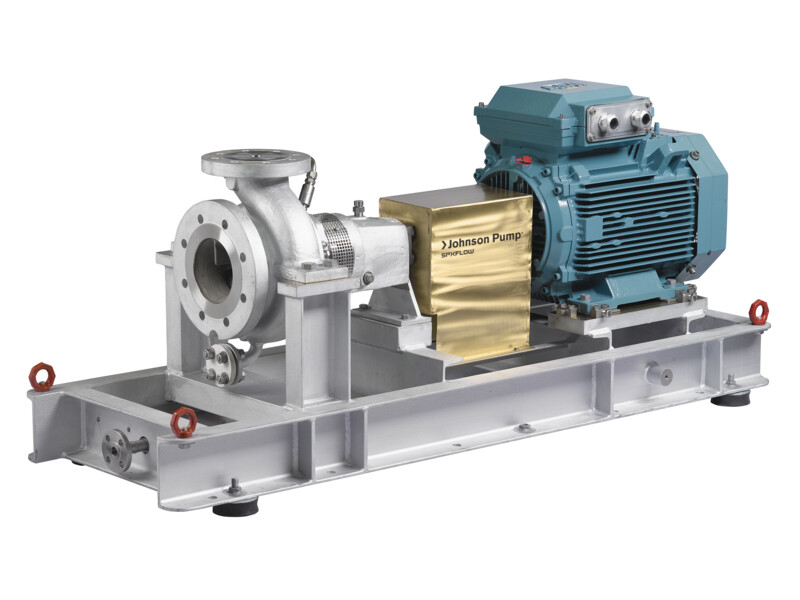

CombiPro - Heavy Duty Process Pump

Product Type(s) : Centrifugal Pumps
Description :

Heavy duty horizontal process pump according to API 610, API 682

WHERE TO BUY

FEATURES

Heavy duty horizontal process pump to API 610, API 682

  • Centre-line mounted end-suction pump overhung single stage process pump
  • Design requirements according to API 610
  • Seal chamber to API 682
  • Pump casing and cover metal-to-metal fit with fully confined, controlled compression spiral wound gasket
  • Fully integrated design pump, motor, base plate, and accessories
  • Outstanding hydraulic performance
  • High efficiency impeller
  • Closed impeller or half open impeller with wear plate and external adjustment
  • Dynamically balanced impeller
  • Flanges according to ISO 7005 PN 50 / 300 lbs ANSI B 16.5 or ISO 7005 PN 20 / 150 lbs ANSI B 16.5
  • Atex certification
  • Robust shaft design
  • Extended life time
  • 2 angular contact thrust bearings and cylindrical roller bearing
  • Oil bath lubricated bearings
  • Bearing housing cooling optional
  • Easy maintenance through the Back-Pull-Out principle
  • Renewable wear rings for casing and impeller
  • Magnetic drive version according to API 685 optional
  • Vertical version optional

Suitable for Thin, clean and slightly contaminated liquids in chemical/petrochemical industry, refineries and general industrial applications

DIMENSIONS & SPECIFICATIONS

Technical Data

Materials: Cast iron, nodular cast iron, bronze, stainless steel, carbon steel, 13% Cr-steel
Max. capacity: 350 m3/h
Max. delivery head: 160 m
Max. liquid temp: 350°C
Max. pressure: 3500 kPa (35 bar)
Max. speed: 3 600 rpm
