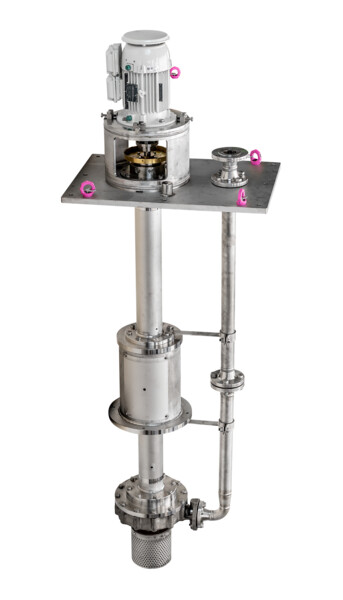

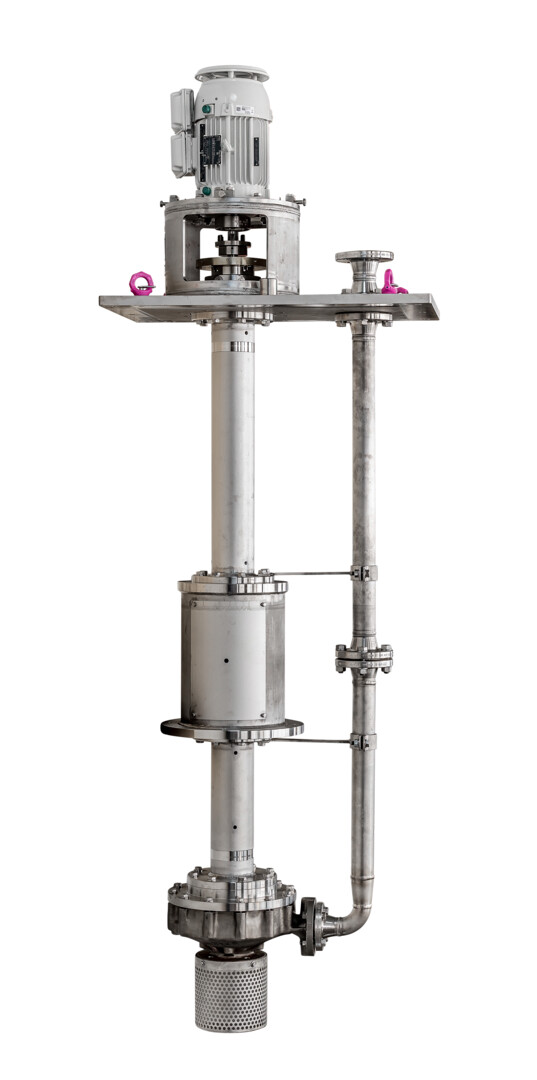

CombiSump - Vertical Long Shaft Sump Pump

Product Type:
Pumps / Centrifugal Pumps

A sump pump designed to EN 733 (DIN 24255), ISO 5199 - ISO 2858 / EN 22858, API 610 / API 682.

CombiSump is the sump pump solution for thin liquids with the pump casing submerged into the liquid and a dry motor construction.

Features

A sump pump designed to EN 733 (DIN 24255), ISO 5199 - ISO 2858 / EN 22858, API 610 / API 682.

  • Standardized and modular design
  • Magnetic driven option
  • Customized sump depths up to 10 m
  • Re-producible optimized hydraulics
  • High efficiency impeller
  • Closed impeller with back vanes providing axial balancing of impeller loads
  • Half open impeller with wear plate and external adjustment
  • Oil seal standard shaft sealing. Gas tightening option by mechanical seal or Gland Packing
  • Discharge flange according to ISO 7005 PN16, PN20, PN50 or ANSI B16.5 150 lbs, 300 lbs
  • Atex certification
  • Pumped liquid lubricated silicon carbide radial bearings
  • External lubrication optional
  • Heavy duty grease lubricated double row angular contact bearing for axial loads
  • Standard IEC flange motor
  • Mounting plate vapor tight or pressurized design
  • Rectangular or circular mounting plate
  • API 610 / API 682 execution engineered for hydrocarbon and petrochemical processing industries

Suitable for

Thin, clean or slightly contaminated liquids such as water, effluent, cleaning products, chemicals, hydrocarbons

Specifications

Technical Data

Casing: Cast iron, Nodular cast iron, Bronze, Stainless steel, Stainless steel alloys, Nickel based alloys, Duplex
Impeller: Cast iron, Bronze, Stainless steel, Stainless steel alloys, Nickel based alloys, Duplex
Max. capacity: 1500 m3/h
Max. delivery head: 160 m
Max. liquid temp: 160°C
Max. pressure: 1600 kPa (16 bar), for API 610 up to 3500 kPa (35 bar)
Max. viscosity: 200 mPas
Max. speed: 3 600 rpm
