MCH, MCV, and MCHZ - Multi-Stage Centrifugal Pumps
The range of multistage pumps includes a series of horizontal pumps, MCH, and a range of vertical pumps, MCV. The horizontal types can also be supplied in a self-priming version, MCHZ.
MCH / MCHZ / MCV Multistage Pump Range
Product Series
The range of multistage pumps includes:
- MCH: Horizontal multistage pumps

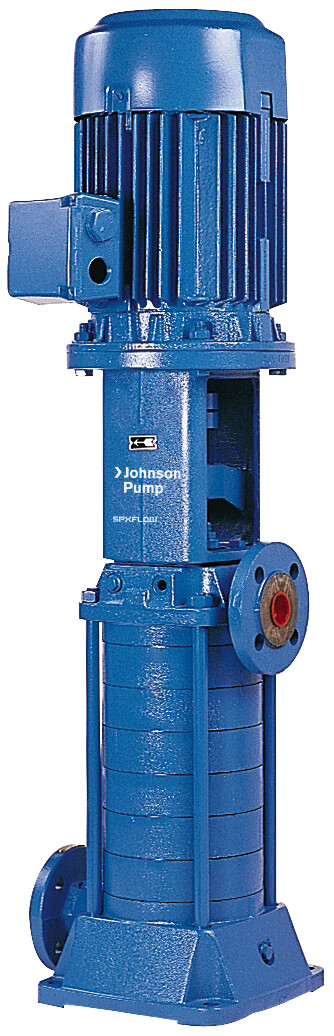

- MCV: Vertical multistage pumps

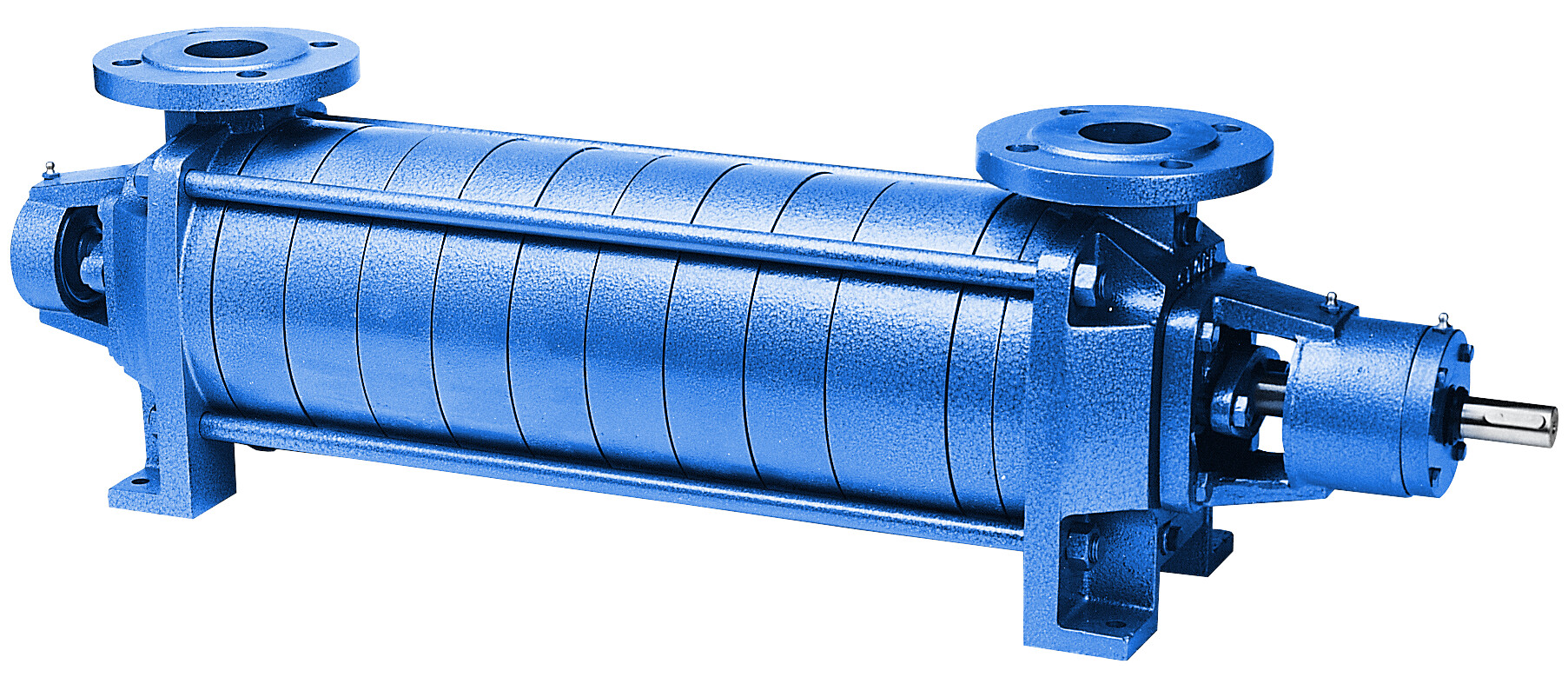

- MCHZ: Self-priming version of the horizontal type
Key Features
- Rigid and reliable construction
- High pump efficiency
- Low maintenance cost
- Available with mechanical seal or gland packing
- ATEX Certified
- CE Certified
Technical Data, General
| Casing: | Cast iron, Bronze - only the MCH-versions |
|---|---|
| Impeller: | Cast iron, Bronze |
| Max. capacity: | 100 m3/h (440 GPM) |
| Max. delivery head: | 340 m (1120 ft) |
| Max. operating pressure: | 4000 kPa (40 bar) |
| Max. speed: | 3 600 rpm (40 bar) (580 psi) |
Details
| Liquid temp. | Pump type | Shaft seal |
|---|---|---|
| -15 to +105C | MCH, MCV, MCHZ | stuffing box |
| -15 to +150C | MCHW | water-cooled stuffing box |
| -20 to +120C | MCHS, MCVS, MCHZS | mechanical seal |
