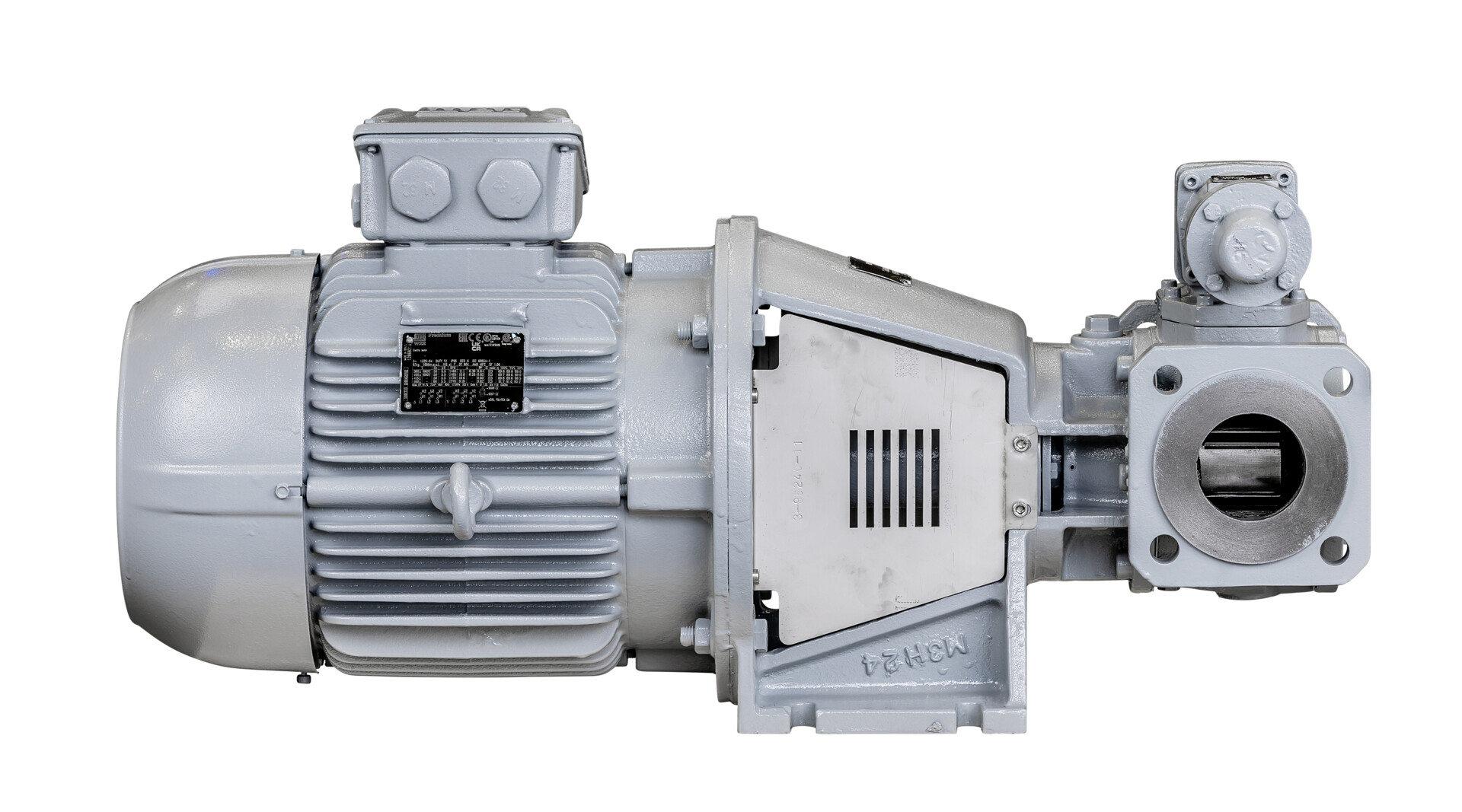

TopGear Bloc - Internal Gear Pump
Product Type(s) : Internal Gear Pumps
Description :
WHERE TO BUY

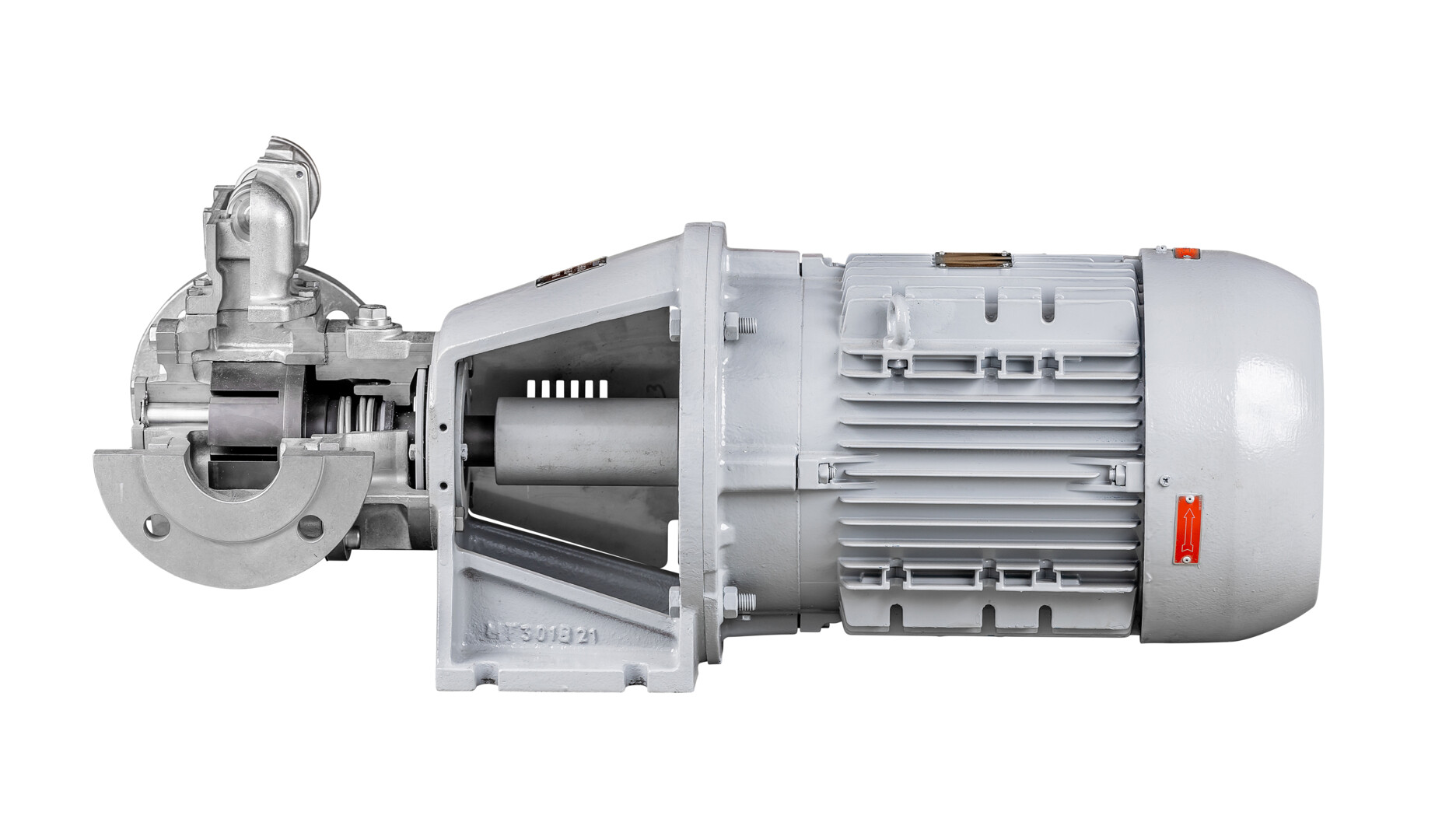

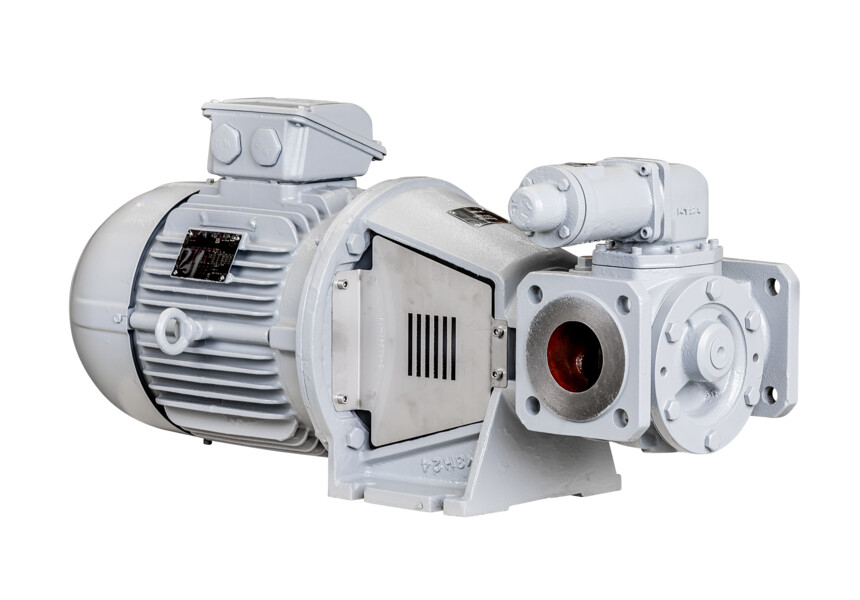

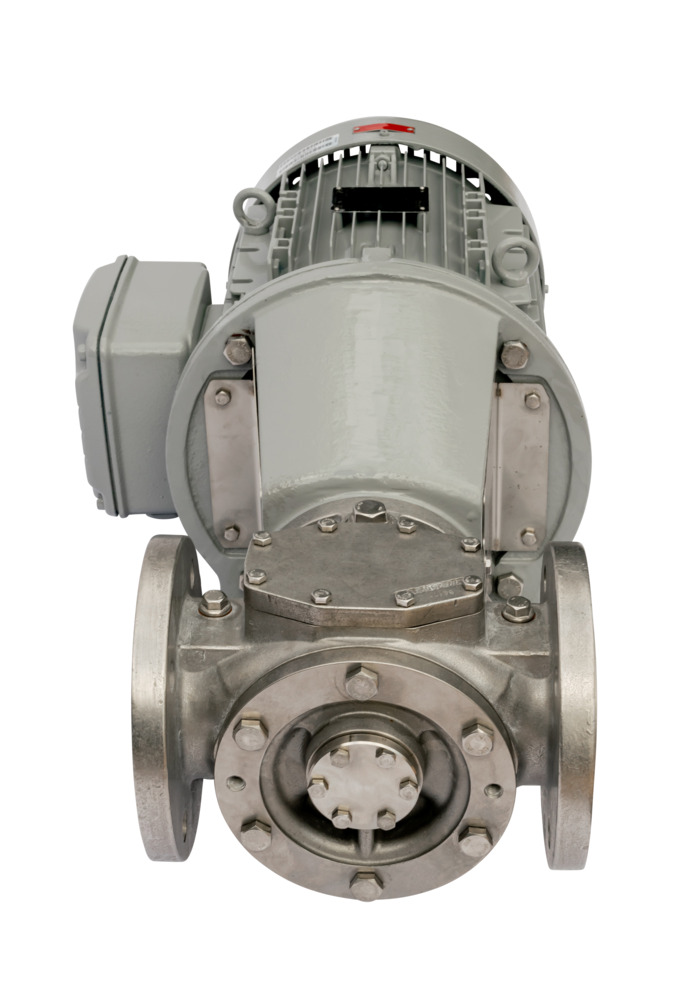

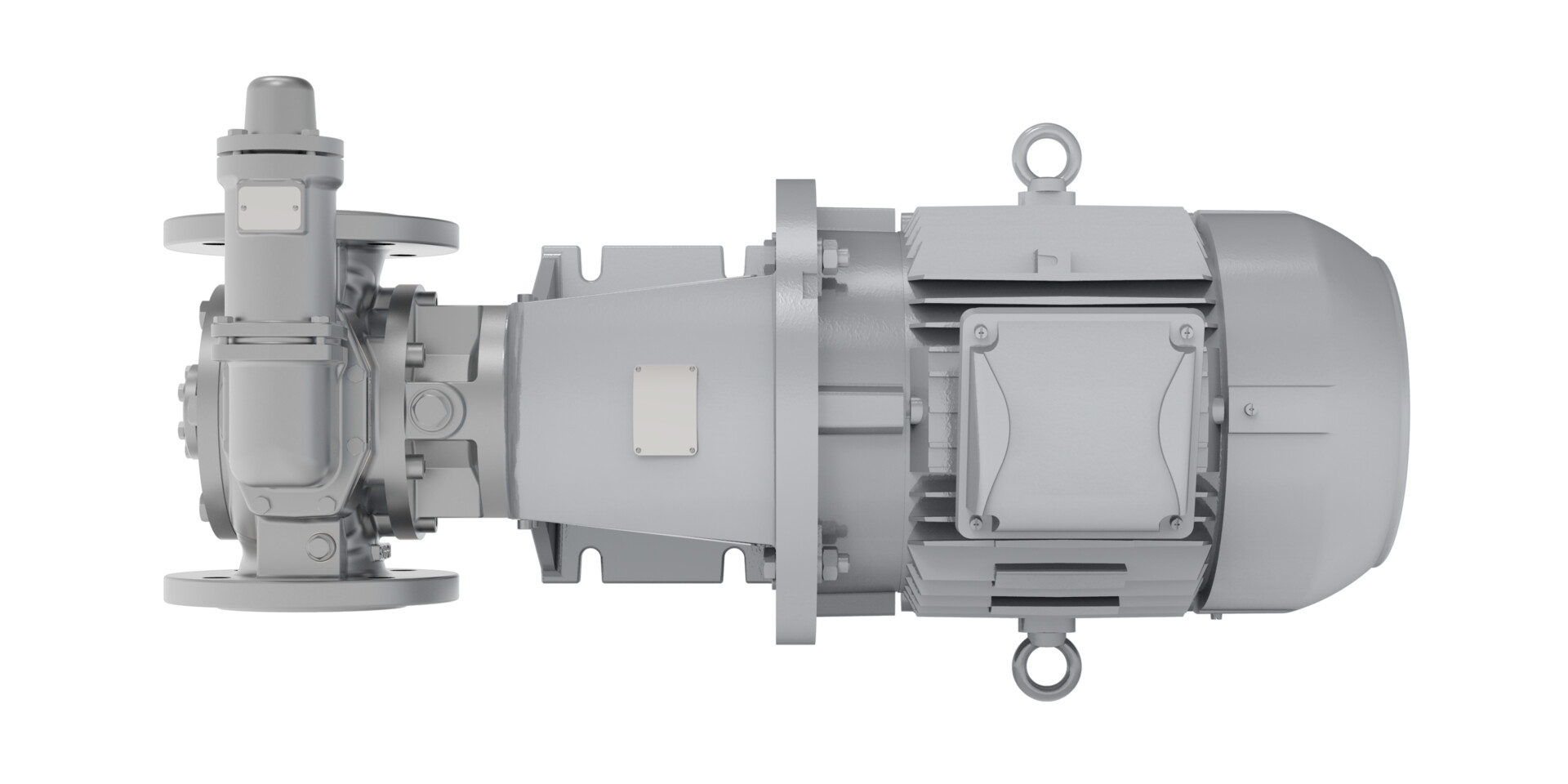

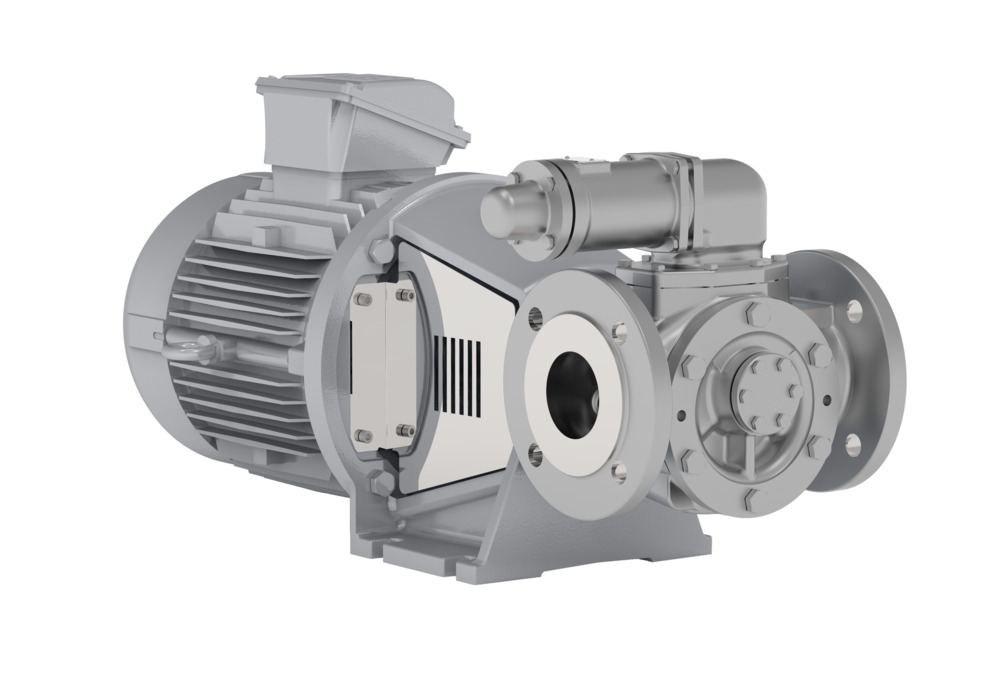

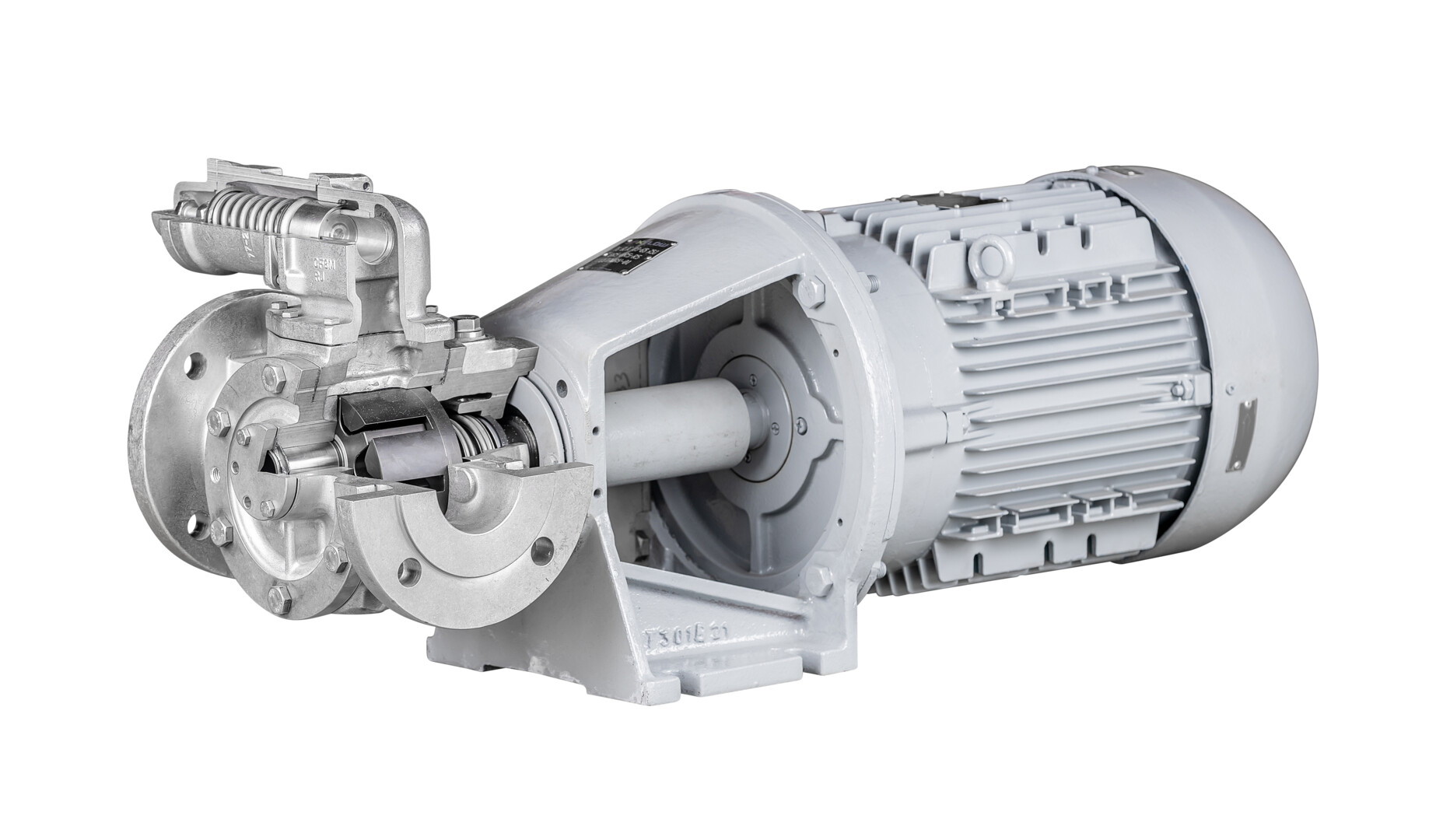

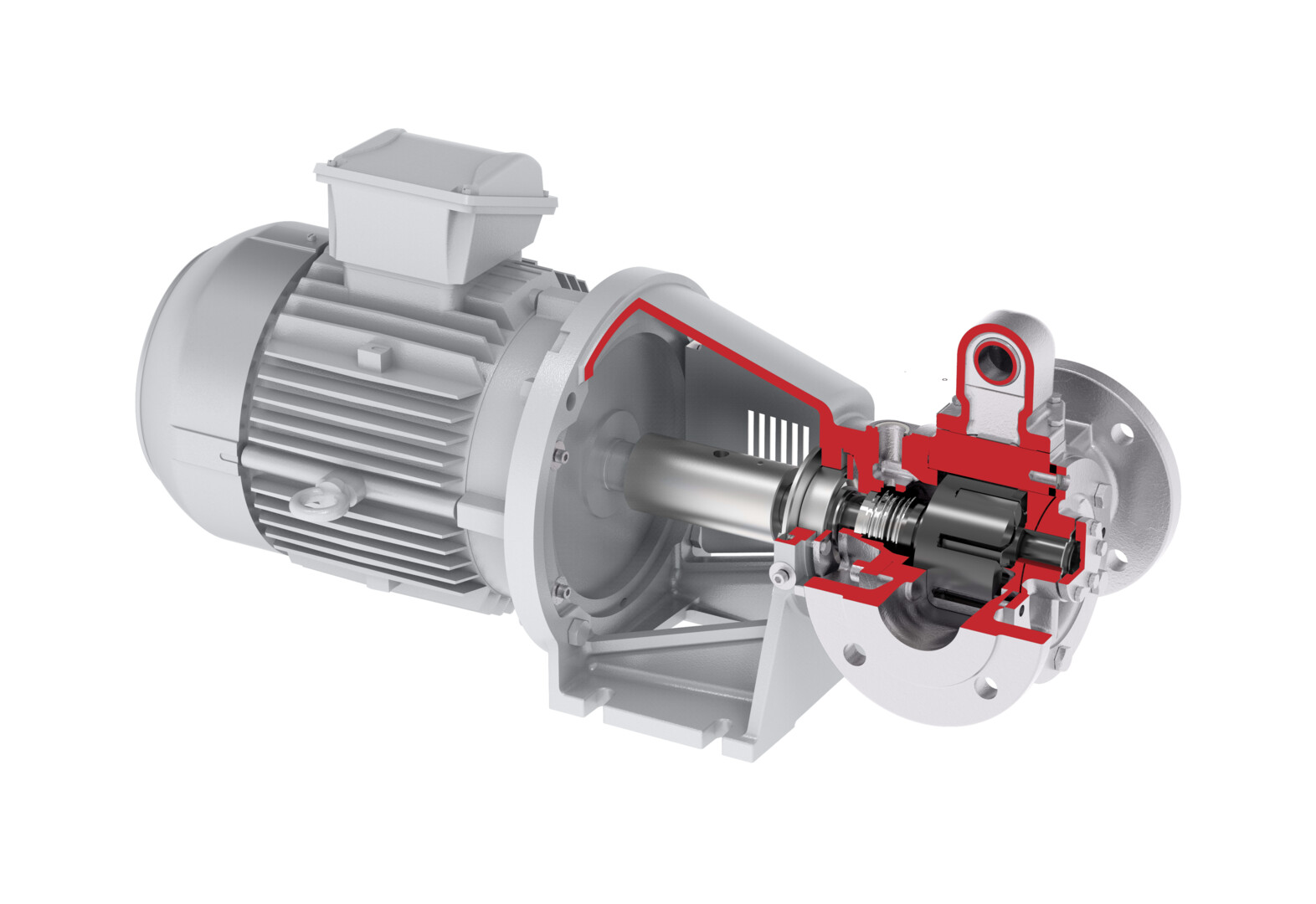

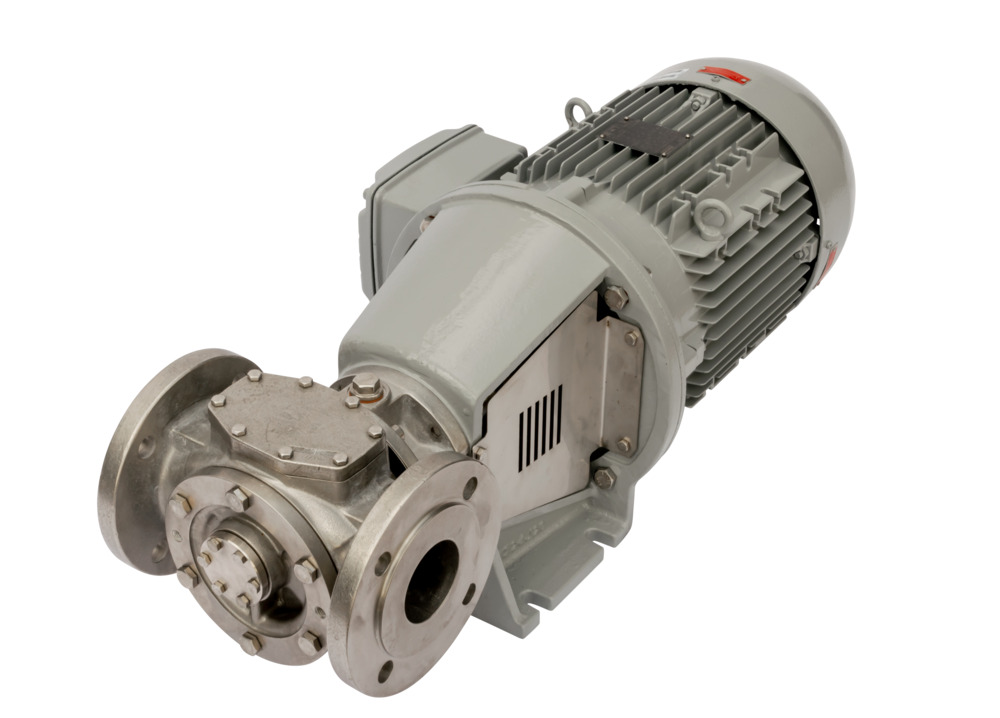

The Johnson Pump TopGear Bloc close-coupled gear pump features the proven hydraulics of our TopGear range and is available in cast iron and stainless steel. It is designed for low-to-medium viscosity, clean, and non-abrasive liquids.
Product Specifications
Technical Data
| Casing: | Cast Iron and Stainless Steel |
|---|---|
| Idler: | Hardened Steel or Nitrided Stainless Steel |
| Rotor: | Nodular Iron or Stainless Steel |
| Max. capacity: | 50 m3/h (220 GPM) |
| Max. differential pressure: | 16 bar (232 psi) |
| Max. temperature: | 180°C (356°F) |
| Max. viscosity: | 7 500 mPas/cP |
- Single Mechanical Seal Options
- Food-Grade Models (EC1935/2004 Compliance)
- Front-End Heating Options
- Safety Relief Valves
- Custom Material Options
| Models | Max. | ||||
| Diff. Pressure [bar] |
Flow [m3/h] |
Shaft Speed [rpm] |
Temperature [°C] |
Viscosity [mPas] |
|
| 15-50 | 16 | 12,6 | 1450 | 180 | 7500 |
| 23-65 | 16 | 19,7 | 1450 | 180 | 7500 |
| 58-80 | 16 | 33,2 | 960 | 180 | 7500 |
| 86-100 | 10 | 49,4 | 960 | 180 | 7500 |
