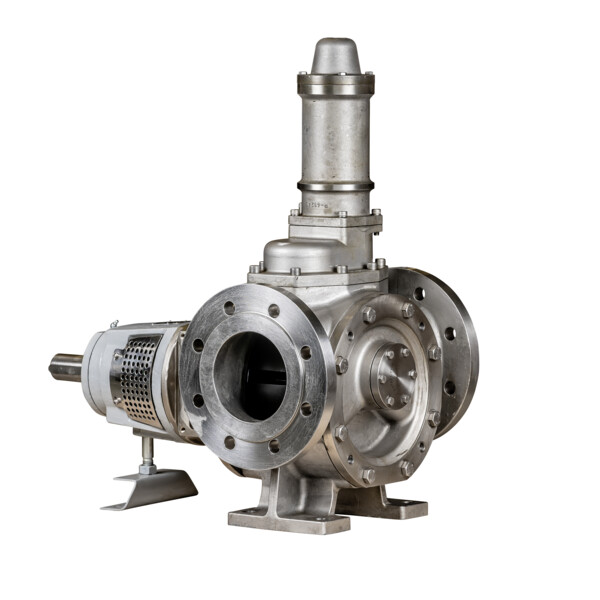

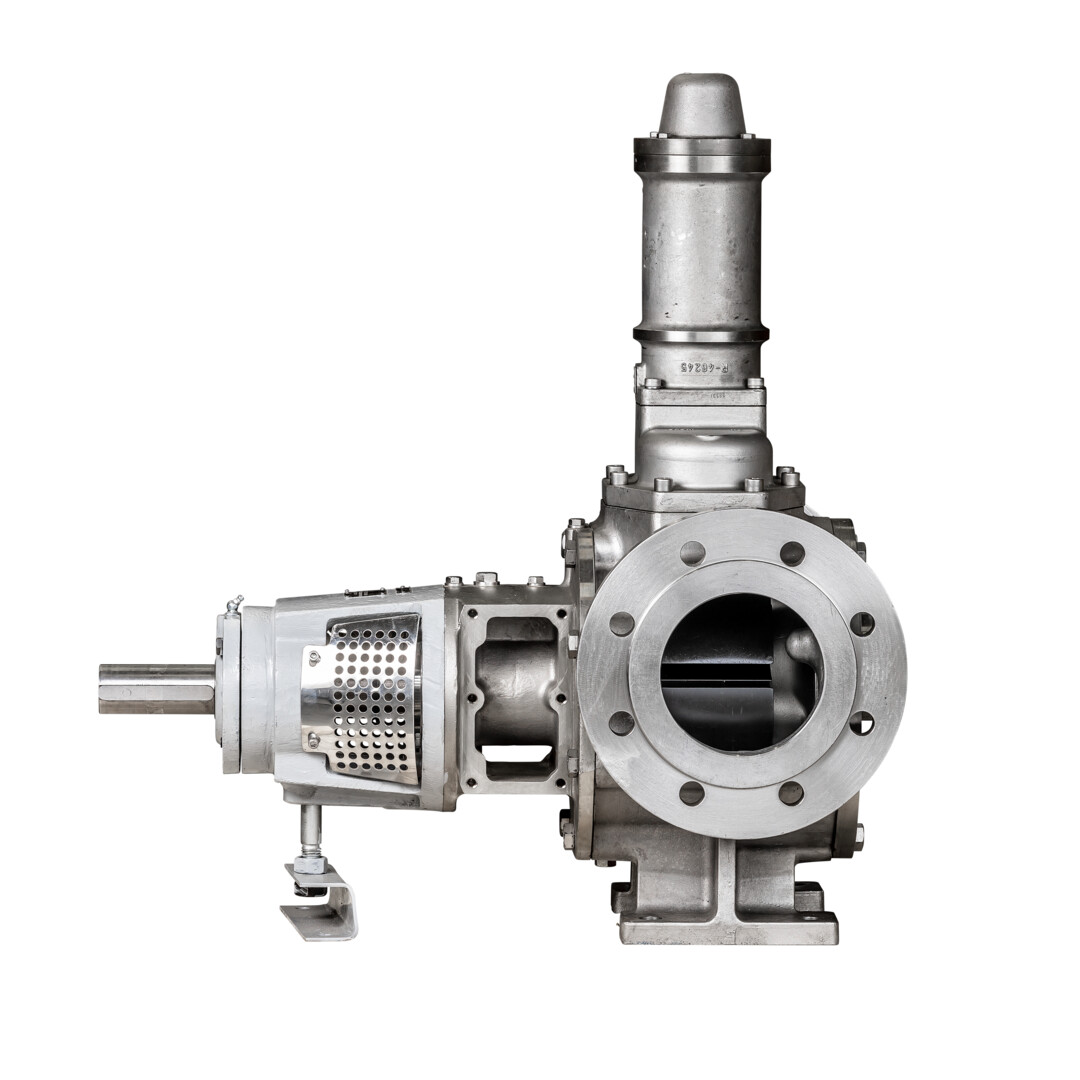

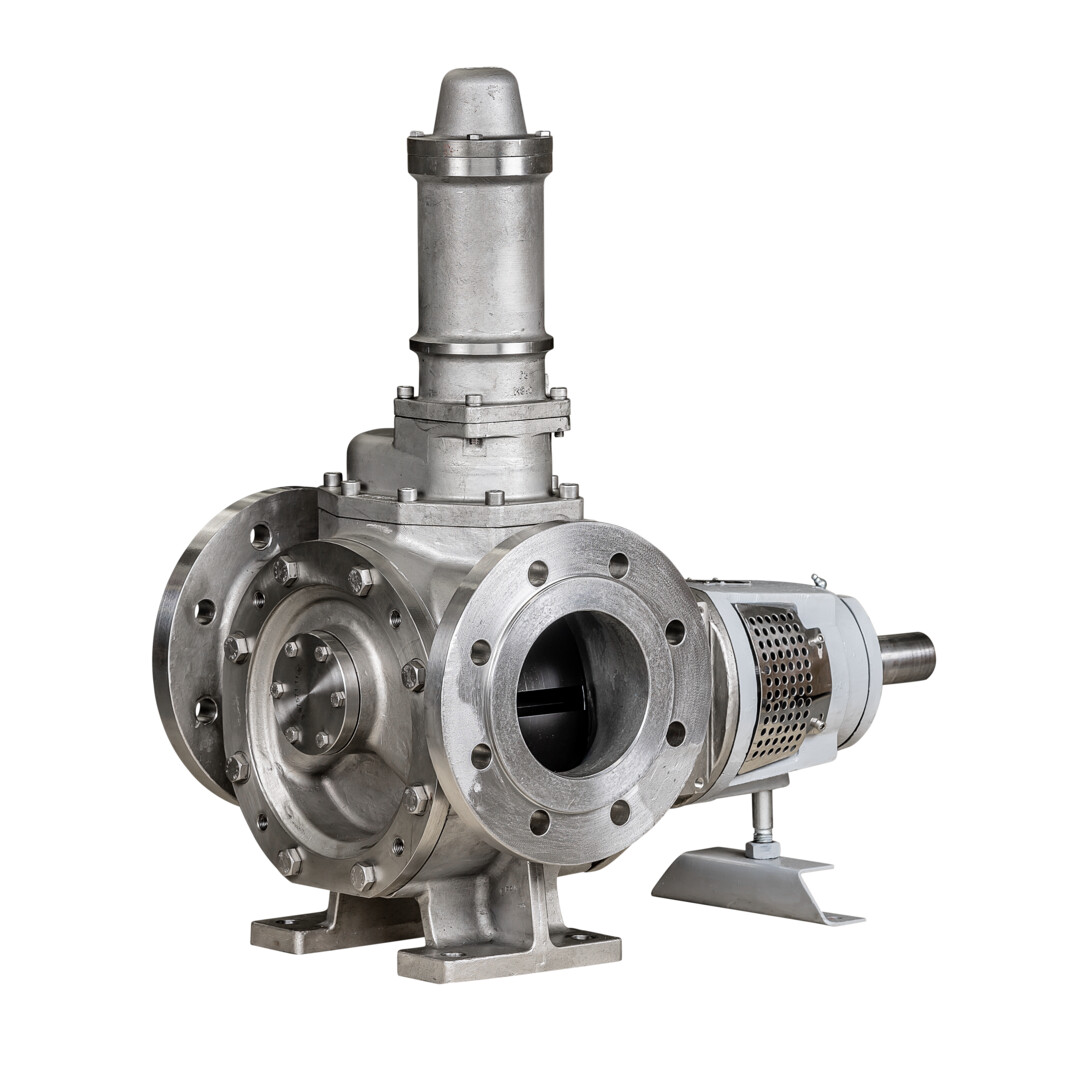

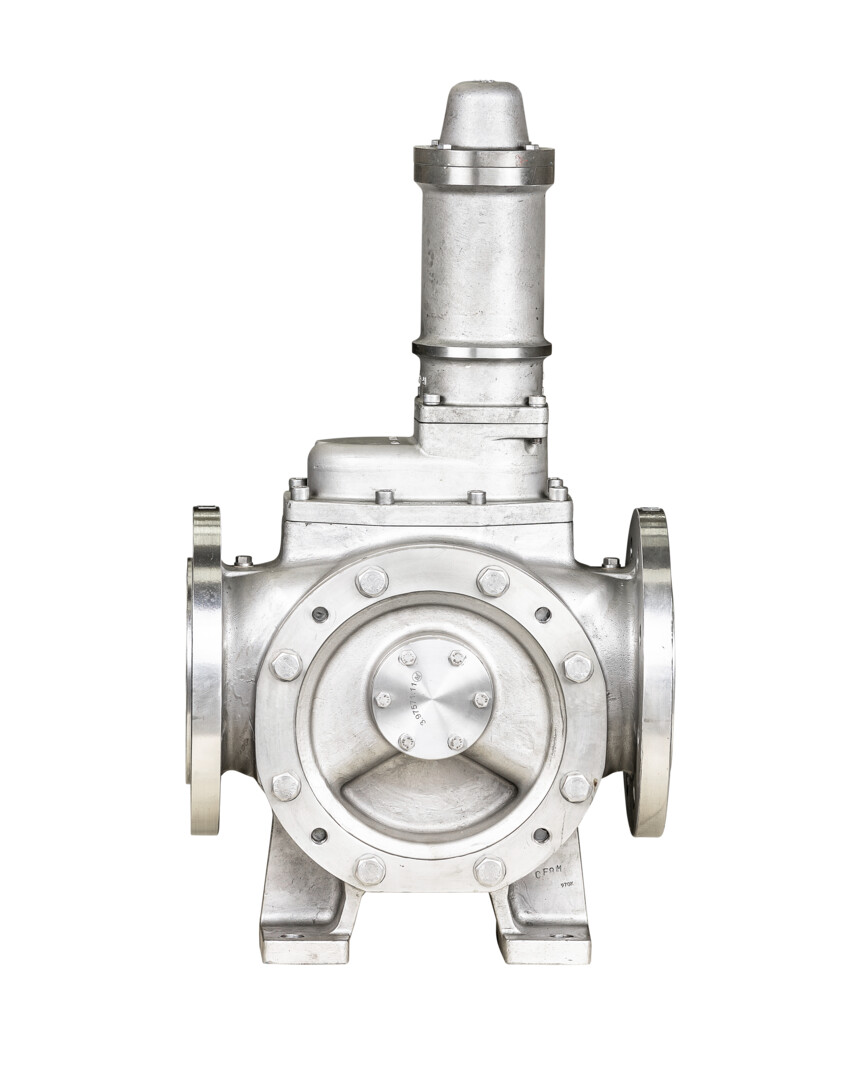

TopGear H - Internal Gear Pump

Product Type:
Pumps / Positive Displacement Pumps

TG H-range is for high demanding application

Features

TopGear H-seriesis available in nine different sizes. The modular design gives a wide range of possibilities. Shaft seal options include single and double mechanical seals as well as packed gland and cartridge seals. Baseplate-mounted.Heating and cooling jackets are available for pump cover and around shaft seal. Single or double safety relief valves are available built-on. Connections from 32 to 150 mm.

  • ATEX Certified
  • CE Certified
Specifications

Technical Data

Casing: Cast steel, Ductile iron, Stainless steel
Idler: Cast iron, Stainless steel, Steel
Rotor: Cast iron, Nodular iron, Stainless steel
Max. capacity: 130 m3/h
Max. differential pressure: 16 bar
Max. temperature: 300°C
Max. viscosity: 80 000 mPas
Drawings & Models
Drawings - 3D
3D STP zip for Bare Shaft TG H 360_150
zip
3D STP zip for Bare Shaft TG H 185_125
zip
3D STP zip for Bare Shaft TG H 86_100
zip
3D STP zip for Bare Shaft TG H 58_80
zip
3D STP zip for Bare Shaft TG H 23_65
zip
3D STP zip for Bare Shaft TG H 15_50
zip
3D STP zip for Bare Shaft TG H 6_40
zip
3D STP zip for Bare Shaft TG H 2_32/3_32
zip
Downloads
Brochures
TopGear - Internal Gear Pumps Range Brochure US GB SV FR IT PL DE ES NL
Industrial Pump Product Overview US GB DE ES FR IT NL PL SV
Manuals
TopGear H, Instruction Manual GB CZ DE ES FR HU IT NL PL
TopGear TG H, Atex Manual GB CZ DA DE ES FI FR HU IT NL PL RU SV
Spare Part Kits Manual GB
