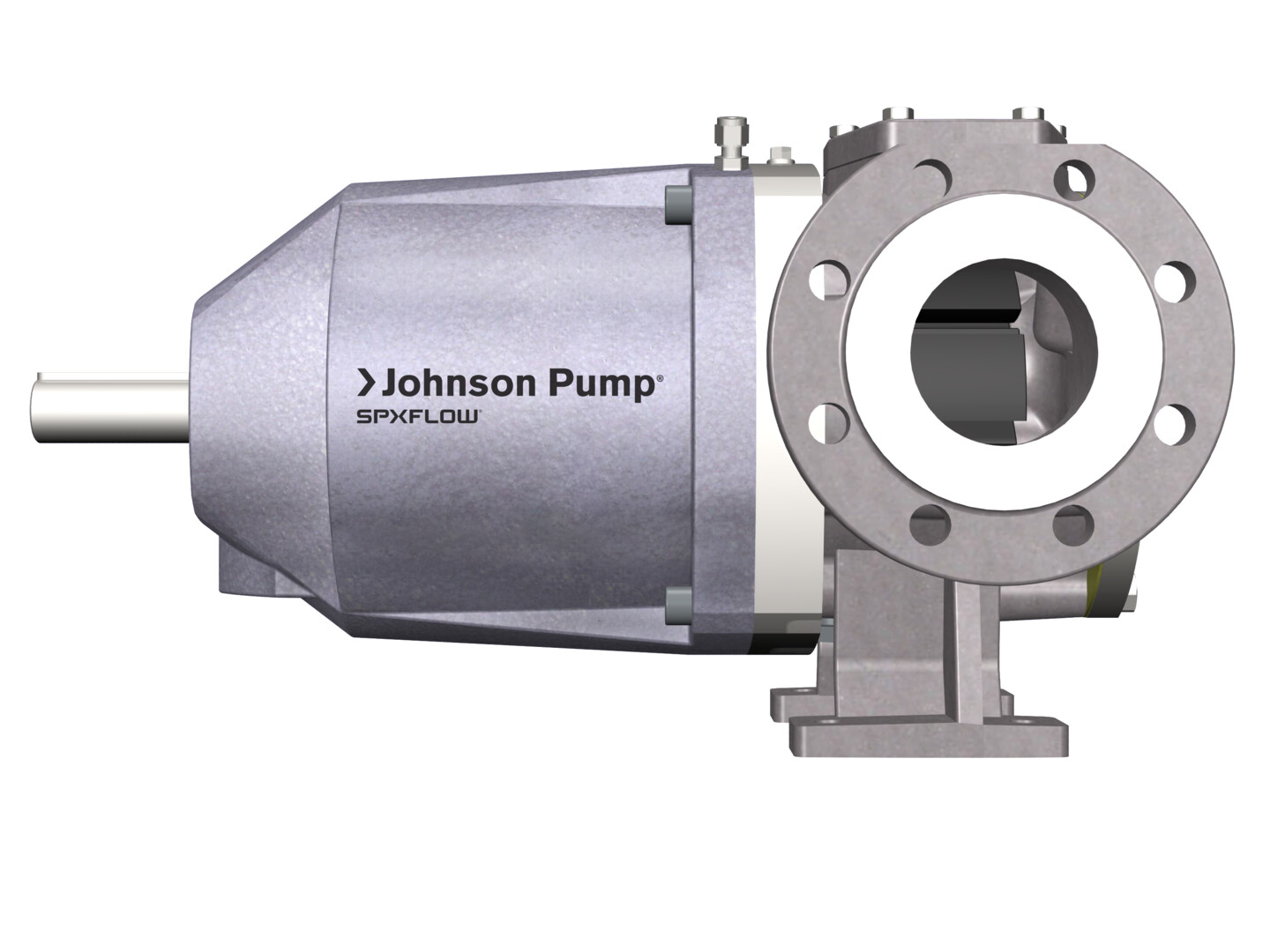

TopGear MAG -Magnetic Drive Internal Gear Pump

Product Type:
Pumps / Positive Displacement Pumps

The TG-MAG range, for toxic or hazardous media

Features

The TG-MAG range, for toxic or hazardous media

TopGear MAG is a range of leak-proof internal gear pumps for low and high viscous liquids which are corrosive, toxic, aggressive or expensive. Total containment of the liquid inside the pump is achieved using a hermetically sealed can, which isolates the liquid from the surrounding environment. This eliminates the need for shaft seals and the associated wear and leakage that would normally be experienced.

The Magnetic Drive pumps are therefore not only environmentally friendly they also contribute to improved safety in chemical and process plant environments.

Complying amongst others with the ATEX (ATmospheres EXplosibles) directive, magnetic drive pumps make an important contribution to health and safety of process plants.

  • ATEX Certified
  • CE Certified
Specifications

Technical Data

Casing: Cast steel, Stainless steel
Idler: Cast iron, Stainless steel, Steel
Rotor:  Stainless steel, Carbon steel
Max. capacity: 80 m3/h
Max. differential pressure: 16 bar
Max. temperature: 260°C
Drawings & Models
Drawings - 3D
3D STP zip for Bare Shaft TG MAG 58_80
zip
3D STP zip for Bare Shaft TG MAG 15_50
zip
Downloads
Brochures
TopGear Mag, Internal gear pumps GB DE
Industrial Pump Product Overview US GB DE ES FR IT NL PL SV
TopGear - Internal Gear Pumps Range Brochure US GB SV FR IT PL DE ES NL
Pump TopGear Internal Gear CN
Manuals
TopGear MAG, Instruction Manual GB CZ DE ES FR IT NL
TopGear MAG, Atex Manual GB CZ DA DE ES FI FR HU IT NL PL RU SV
