GP2 General Purpose Mixer

Skip Navigation

Product Type(s): Portable Mixers

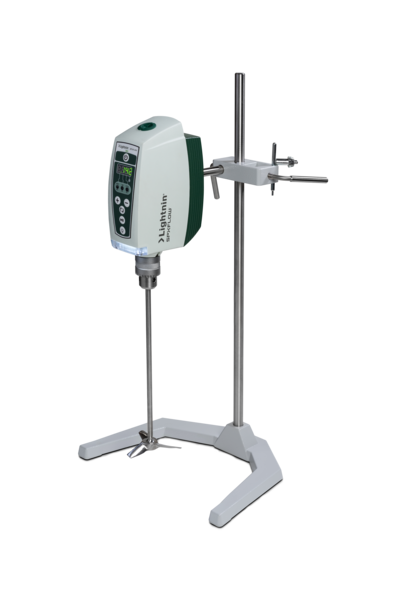

The Lightnin GP2 Mixer is designed for lab and industrial applications. The Lightnin GP2 mixer has an integrated digital control and feedback system that allows the user to precisely and easily control the mixing process. This coupled with Lightnin Impeller configuration knowhow, produces consistent results that is critical for validation and scale up.

Designed for open tank applications, the Lightnin GP2 is Multifunctional, Reversing and comes with a Countdown Timer. • Brushless DC motor – reduced maintenance• Automatic overload protection - increased life• Variable speed from 40 – 2000 rpm• Torque100Ncm (9 in-lbs.)• .07KW (1/10HP)• Through Stainless Steel Ø10mm (Ø3/8”) Shaft• Rod and Universal Clamping configurations• Clockwise and counter clockwise rotation• Countdown timer - mixing stops when time is completed• Low energy LED mixing light• Global availability, with UL, CSA, CE, RoHS certification, WEEE compliance and IP42 rating• Adjustable Ø10mm (Ø3/8”) shaft with one end turned down to Ø8mm (Ø5/16”) – non retrofit models• A310 64mm, (2.5”) and A310 86mm, (3.4”) impellers as standard – non retrofit models

Speed

40 - 2000 rpm

Mechanical Power

0.07Kw / 0.1HP

Torque

100 Ncm / 9 in-lbs

Input Power to Power Supply

Universal Single Phase 115V / 230V, 50 / 60- Hz

Electrical Power to Mixer

24V DC, 4.75A, 90W

Weight

3Kg / 7

LED Accuracy Display

± 1 rpm or 3% of reading (whichever is greater)

Modes

Countdown Timer, Clockwise, Counter Clockwise, xRx Mixing - Auto Reversing

Approvals/Environmental

UL, CSA, CE, RoHS, WEEE Compliant, IP42 rating

Standard Equipment

Stainless Steel Chuck, Chuck key, 5" Mounting post, Power Cord and operating instructions

Standard Equipment (Non-Retrofit Models)

Mounting system (excluding stand and clamp), 10mm (3/8") stainless steel shaft, A310 Ø64mm (Ø2.5") and A310 86mm (3.4") impellers

Spares/Accessories

Full range of spares and accessories
