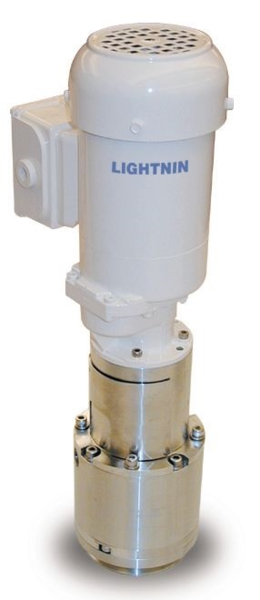

SVM - SanStar Sanitary Mixer

Product Type(s) : Top Entry Mixers
Description :

The Sanitary Vertical Mini (SVM) Mixers have been engineered for your most critical processes, collectively providing superior performance and clean operation.



  • Minimum footprint for vessels from 10 to 500 liters
  • 300 series stainless steel housing and pedestal; epoxy-painted drive
  • Designed for use in sterilizable environments
  • Vertical, in line design for closed tank applications
  • Mixer mounts on standard 3" tri-clamp flange
  • Full clean-in-place, sterilize-in-place (CIP/SIP) features
  • Single mechanical seal available with or without purge gland
  • Washdown inverter duty gear motor
  • Wide range of output speeds from 120 to 370 rpm, for maximum flexibility
  • Variety of impeller configurations and variable speed drives for a wide range of process requirements; shaft length up to 45" long
  • Designed to comply with ASME Bioprocess Equipment Specification guidelines
  • Available with Lightnin's QAD validation support package
  • Backed by Lightnin's 100% process guarantee
