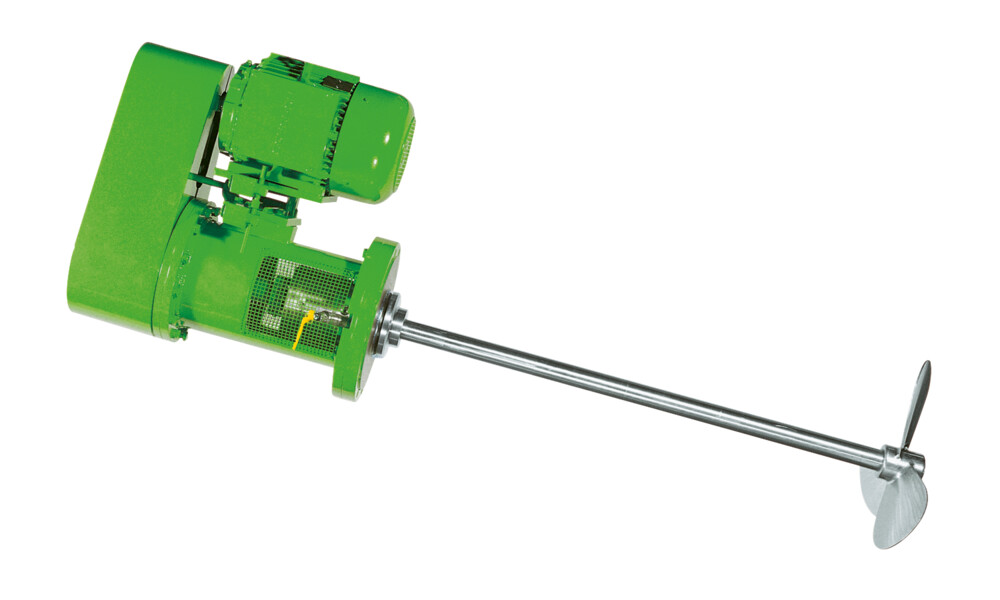

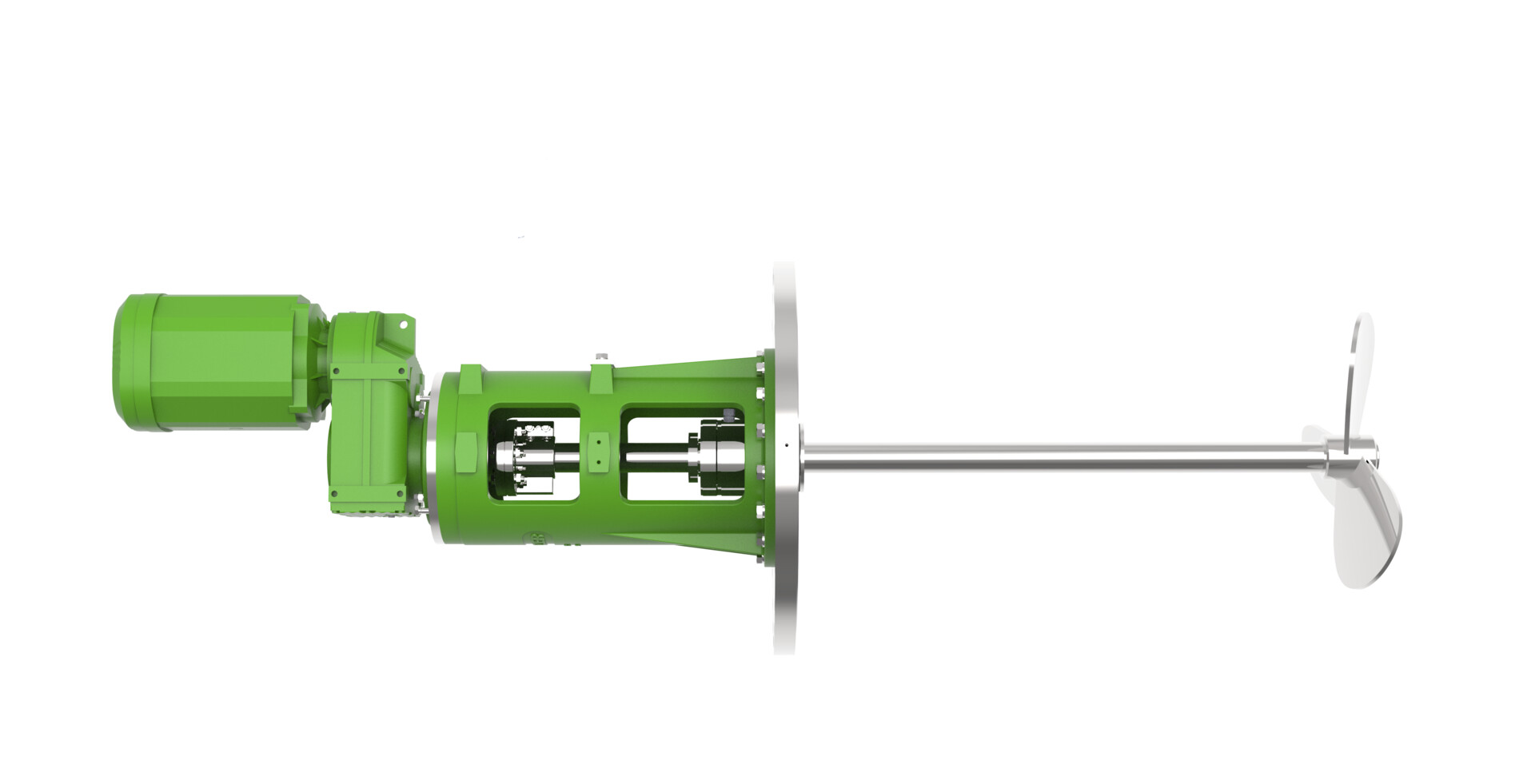

SSR Side Entry Mixer

Product Type(s) : Side Entry Mixers

Description :

The SSR side entry agitator was developed as a low cost alternative for large tank applications. It is used for blending, suspension and heat transfer applications. Features include quiet operation, high pumping capacity, advanced seal design plus shut–off for seal replacement while tank is filled.

WHERE TO BUY

Optimum design of casted or welded housing.
High efficiency axial flow impellers.
Multiple agitator arrangements with optimized vertical/lateral angle for super large tanks.
Driver unit with IEC/NEMA motor plus belt drive or gearbox and motor.
Sealing systems range from stuffing boxes to process adapted single or double acting mechanical seals.

Dimensions
Specifications

Motor Power - 4 - 90 kW

Casted housing - Optimum design of casted housing

Impeller - High efficiency marine-type impeller

Mechanical seal - Special mechanical seal designed for side-entry agitators

Shut-off device - Seal replacement while the tank is filled, shaft remains supported during removal of mechanical seal

Materials - SS304 / 316L / 316Ti or on request

Models - SSR-K, SSR-H, SSR-E
