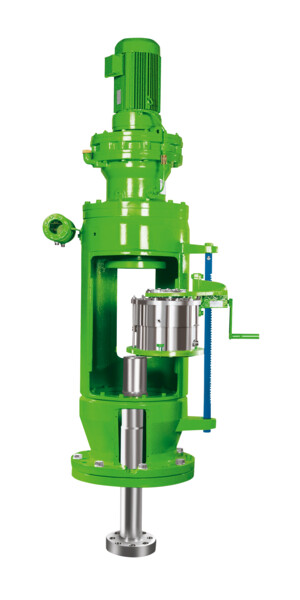

VORTEX Bottom / Top Entry Mixer

VORTEX agitators have revolutionized agitator field maintenance. The innovative design allows the lateral removal of the mechanical seal in less than 1 hour. The advanced modular system integrates easily in any environment. The VORTEX mixer can be a top entry or bottom entry mixer.

VORTEX Top / Bottom Entry Mixer

Key Features

Quick Disassembly Design: VORTEX agitators feature a standard or custom mechanical seal, intermediate shaft, and coupling replacement unit for fast lateral disassembly and assembly.
Compact Maintenance Footprint: Designed to minimize working space required for servicing and maintenance.
Flexible Drive Options: Available with fixed or variable speed systems to meet specific process demands.
Modular System Architecture: Supports both standard applications and specialized configurations such as high torque or high-pressure units.

Motor Power - 5,5 - 750 kW

Shaft Diameter - 60 - 300 mm

Mixer Orientation – Top or Bottom Entry
