Votator® II Vertical - Scraped Surface Heat Exchangers

Product Type(s): Heat Exchangers

Votator scraped surface heat exchangers replaces slow, inefficient batching operations with more uniform, controllable and repeatable continuous processing.

SSHE Tube Self-Inspection Form

Features & Benefits

Votator® II Vertical - Scraped Surface Heat Exchangers

The Votator® II incorporates the most popular features of the Thermutator® and Votator® lines. We have upgraded the Vertical Lift system to provide greater flexibility and increased uptime. The new upgrade is 3-A, ASME, and PED Certified.

Increased Uptime

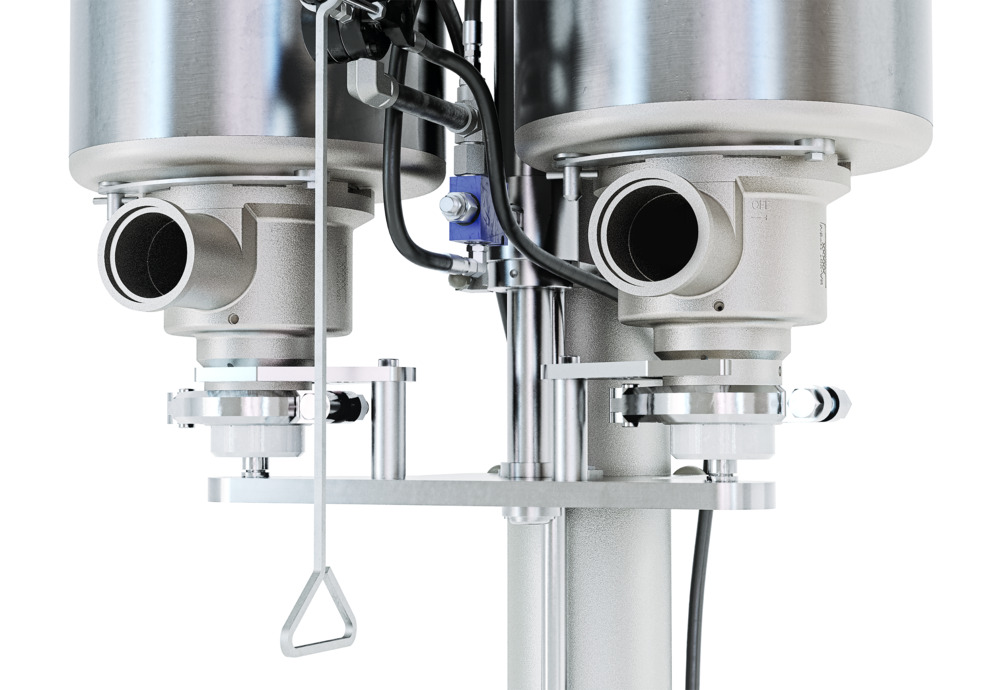

Single or dual lift for inspection, cleaning or maintenance
New blade alignment and spline tools for fast and accurate assembly

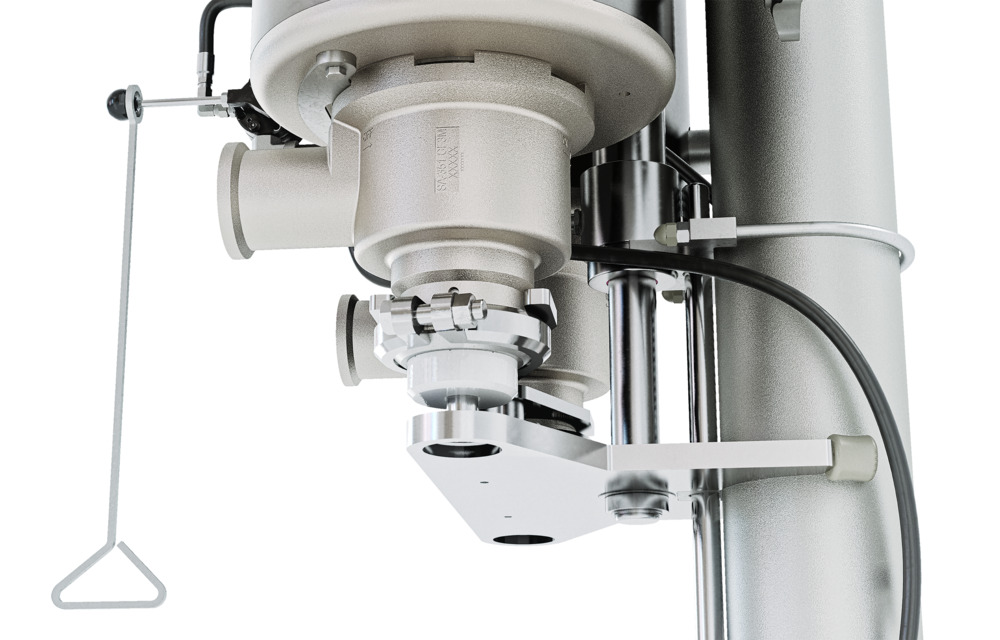

New guidance system ensures smooth lifting and lowering

Robust and Reliable Construction

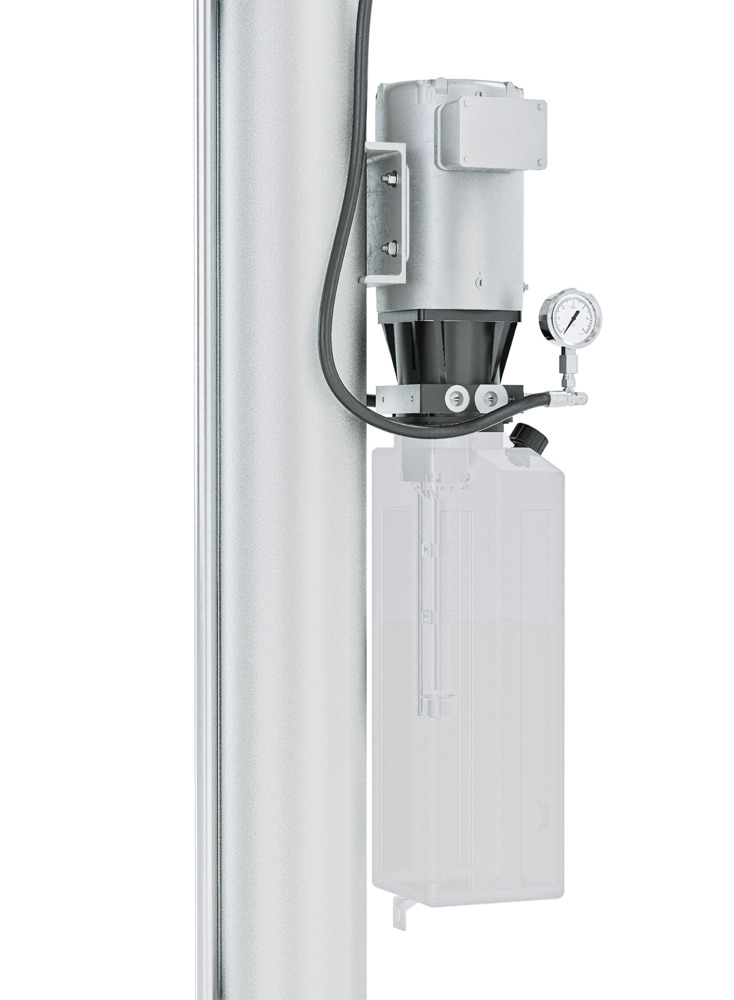

Strengthened hydraulic power pack for dual lifts

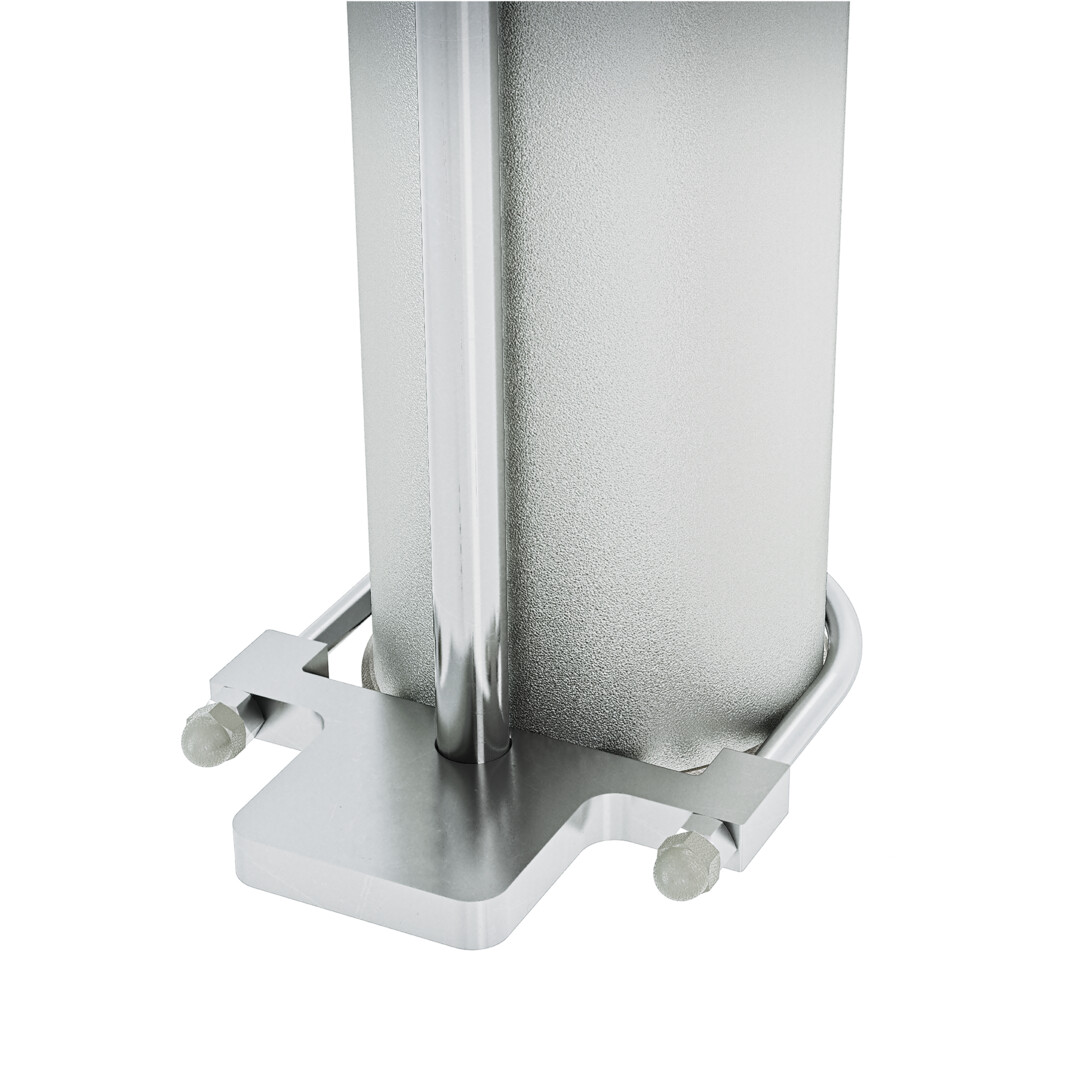

2 point locking guidance system
Heavy duty components ensure reliable operation

Easy to Maintain, Repair or Replace

System components mounted externally for easy maintenance
Retrofit kits available for existing single lift installations

Single and Double Mechanical Seals

Greater material choices for various applications (ceramic, carbon, silicon carbide, and tungsten carbide)
Available in standard and narrow faces
Ease of maintenance and lower cost of ownership

PEEK™ Blades

100% PEEK™ - no filler or inserts
Available in metal detectable version

Integral Gear Motor Drive

Gear drive is directly coupled to the mutator shaft eliminating the need for a secondary drive shaft and bearing block
Overall length of heat exchanger is reduced by 20 – 25%
Easy to maintain and self-aligning
Available with up to 30 horsepower for handling the most viscous products

Removable Heat Transfer Tube

Can be serviced without disturbing hydraulic lifting system, utility piping, or the drive assembly
Flange bolted to the jacket on the non-driven end allows for quick removal
Reliable double O-ring seal on each end eliminates the need for an expansion joint

Key Applications

Food Products

Heating and cooling cheese sauce
Pudding
Caramel
Deboned meat
Pet food
Fruit products
Soups
Sauces
Dressings
Syrups
Nut butters
Gelatin
Margarine

Personal Care and Industrial Products

Shampoos & Conditioners
Deodorants
Paraffin
Caulk
Greases

Performance

Heat Transfer Area

Units are available with up to 11 sq ft of heat transfer area (6 X 84)
