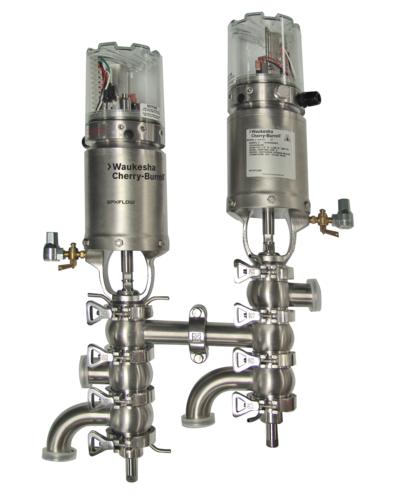

W262 / W282 / W265 / W285 Series - Single Seat HTST Flow Diversion Valves

Product Type:
Valves / Single Seat Valves

For use in HTST (High Temperature Pressure Short Time) systems for diverting product to forward flow after reaching legal pasteurization temperatures.

Features

This non-slamming design prevents water hammer or hydraulic shock conditions caused by traditional flow diversion valves, extending the life of the valve and surrounding process equipment.

The W265 HTST valve assembly comes complete with 1 or 2 Microswitches in each valve control module to meet PMO requirements for position indication. Solenoids optional.



Specifications
  • Product Wetted: ASTM 316L (UNS-S31603); (DIN-1.4404)
  • Non-Product: ASTM 304 (UNS-S30400); (DIN-1.4301)
  • Seat Material: Tef-Flow™ P (Standard)
  • Elastomers: EPDM or FKM (Fluoroelastomer)
  • Finish: < 32Ra (<0.8 mm)
Drawings & Models
2D Drawings
W60 Series Model W61 W62 W63 W65 Cherry
dwg pdf
W60 Series Model W61 W62 W63 W65 Cherry 2
dwg pdf
Flow Divert Valves - Model W265
dwg pdf
W60 Series Valve Options and Accessories
dwg pdf
W60 Series Spring Relief Actuators
dwg pdf
W60 Series Model W265TTMP with Control Top
dwg pdf
3D Models
W60 Actuators, Control Tops and Adapters STEP
zip
W60 Actuators, Control Tops and Adapters IGS
zip
W60 Pressure Relief Valves STEP
zip
W60 Pressure Relief Valves IGS
zip
W60 Valve Upper Bodies STEP
zip
W60 Valve Upper Bodies IGS
zip
W60 Valve Lower Bodies STEP
zip
W60 Valve Lower Bodies IGS
zip
Downloads
Datasheets
DS-1208 W265 & W285 HTST Flow Diversion Valves US
Flyers
FB-0050 - Construction - Mix Proof & Single Seat Valves - Product Features US
FB-0051 - Materials - Mix Proof & Single Seat Valves - Product Features US
FB-0084 - Single Seat Valve Actuators - Product Features US
FH-1804 - Control Top Cover Upgrade and NEMA 6 Upgrade Option US GB
Manuals
95-03081 - W262 / W282 FD HTST Divert Valves US
95-03088 - W265 / W285 FD HTST Divert Valves US
H326406 - APV CU4 As-interface Control Unit GB
H323871 - APV CU4 Direct Connect Control Unit GB
Technical Documents
M-B-351 FDA Certification for Flow Diversion Valves US
