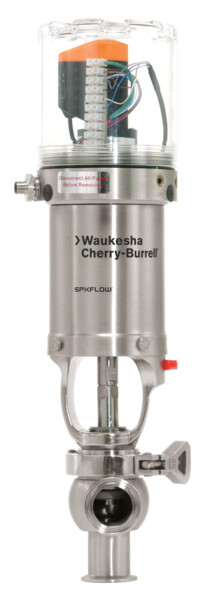

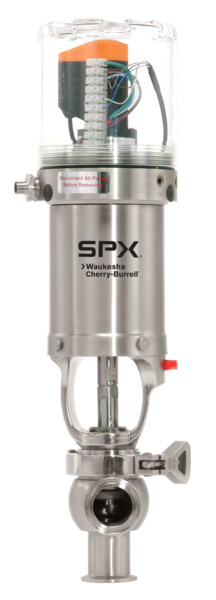

W60 Series - Shut-Off, Divert and Tank Outlet Single Seat Valves

Product Type:
Valves / Single Seat Valves

W60 series single seat valves are used to shut-off or divert flow in a process system.  These valves are pneumatically or manually operated, and offered in a wide variety of configurations.  These valves are used to process products in the beverage, food, dairy, pharmaceutical, personal care and chemical industries.

Where To Buy
Features

With multiple bodies, actuators, stem types and a wide range of control tops, these valves can be configured to precisely fit any application.

  • Bodies machined from solid bar 316L with laser welded ports
  • Standard "S" clamps used to connect adapters and bodies
  • High pressure capability
  • Seal options Tef-Flow, Tef-Flow P, Tri-Ring (FKM or EPDM), Metal Plug
  • Open yoke 3-A design
Key Applications

Beverage Processing

Beer
Cider
Fruit Drinks
Liquid Sugar and Glucose
Soft Drinks
Wine
Wort

Food Processing

Animal Oils
Flavorings
Pet Food
Soups and Sauces
Vegetable Juices
Vegetable Oils
Vinegars

Dairy Processing

Cream
Milk
Milk Concentrate
Raw Milk
Skimmed Milk
Whey
Whey Concentrate

Pharmaceutical Processing and Personal Care Processing

Emulsions
Extracts
Lotions
Perfumes
WFI (Water for Injection)
High Purity Water
Pure Water

Chemical Processing

Additives
Adhesives
Coatings
Contaminated Liquids
Detergents
Emulsions
Paint

Specifications

Sizes:

Available in 1” to 6” (25mm – 152mm) OD sizes.

Materials:

Product Wetted: ASTM 316L (UNS-S31603); (DIN-1.4404)

Non-Product: ASTM 304 (UNS-S30400); (DIN-1.4301)

Seat Material: Tef Flow™ (Standard)

Elastomers:

  • FKM (Standard)
  • EPDM (Option)
  • FFKM (Option)

Finish: < 32Ra (<0.8 µm) Other finishes available upon request



Options

Seat Types:

NEW - Metal and X-Ray Detectable Tef-Flow™ "P" Seats

SPX FLOW offers added security to its reliable Tef-Flow™ P (PEEK) seats for Waukesha Cherry-Burrell brand single seat valves.  Used in conjunction with metal or x-ray detectable o-rings, the TFP-MD gives a complete detectable solution for product zone parts on single seat valves used in critical applications such as dairy, nutritional beverages, processed meats, and personal care.

Seat Type   Maximum Temperature Application Series
Tef-Flow™ (TF)
180/82 Standard seat of choice.
General Purpose, >90% of applications		 W60
Tef-Flow™ “P” (TFP)
280/137 High Temp High Pressure Pressure Relief W60/W80

NEW


Tef-Flow™ P-MD (TFP-MD)
    W60/W80
Tri Ring (TR) E PDM, FKM
Oper. 280/137EPDM
Steril. 275/135EPDM
Oper. 350/176 FKM
Steril. Consult Factory FKM		 High Pressure Large Particulate W60/W80
Metal (M)
375/190 High Pressure High Flow Large Particulate W60/W80





Control Units:

Waukesha Cherry-Burrell Control Units




Connector Options Position Indication Interface Options Solenoid Valves
  • S/O Cord Grip for hard wire (std)
  • Quick Disconnect Pin Connectors
  • Set & Forget Switch
  • Inductive Proximity Switches 20-140V AC/DC,
  • 2-Wire (Std)
  • Intrinsically safe options 5-24VDC
  • AS-i Field Bus Card
  • Device Net Field Bus Network Card
  • 24VDC or 110VAC
  • Select from 0 to 3 Solenoids

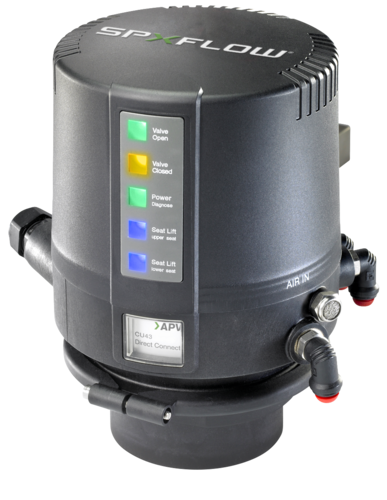

CU4 Control Units





Connector Options Position Indication Interface Options Solenoid Valves
  • S/O Cord Grip for hard wire (std)
    Quick Disconnect Pin Connectors
  • 2 internal feedback sensor switches for valve open/valve closed position detection
  • AS-i Field® Bus Card
  • 24V DC
  • Select 1 solenoid or solenoid with NOT element (air/air or air assist)

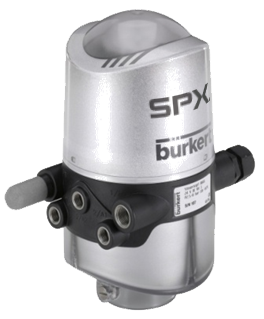

8681 Control Units





Connector Options Position Indication Interface Options Solenoid Valves
  • S/O Cord Grip for hard wire (STD)
    Quick Disconnect Pin Connectors
  • (3) programmable position sensors in control top
  • AS-i Field® Bus Card
  • DeviceNet® Field Bus Network Card
  • 24V DC
  • Manual override and air throttle adjustment
  • Up to (3) available in control top





Actuators:

W61/W63   W81/W83 - Standard Stroke

W62/W65  W82/W85 - Standard Stroke

W61/W63   W81/W83 - Long Stroke

W62/W65   W82/W85 - Long Stroke

W61 - Y-Body - Extra Long Stroke



Models and Functions:

W61 – Shut Off

  • W62 – Divert
  • W63 – Reverse Shut Off
  • W64 – Tank Outlet
  • W64R – Reverse Tank Outlet
  • W65 – Non-Slamming Divert
  • W68 – Throttling
  • W68R – Reverse Throttling
Videos
W61 Series Single Seat Valve Operation - Open and Closed Seat Positions
Downloads
Datasheets
DS-1201 W60 Series Shut-off and Divert Single Seat Valves ‖ US
VK-1000 - Single Seat, Double Seat and Ball Valve Key ‖ US
Flyers
FB-0029 - W-Series Single Seat Valves - Product Highlights ‖ US
FB-0050 - Construction - Mix Proof & Single Seat Valves - Product Features ‖ US
FB-0051 - Materials - Mix Proof & Single Seat Valves - Product Features ‖ US
FB-0084 - Single Seat Valve Actuators - Product Features ‖ US
FH-1804 - Control Top Cover Upgrade and NEMA 6 Upgrade Option ‖ US
Manuals
95-03022 - W60 and W80 Series Valves ‖ US
95-03083 - Control Tops for Waukesha Cherry-Burrell Valves and Switch-Only Options ‖ US
Application Sheet
FF-2201 - Single Seat Selection and Application Guide ‖ US
Success Stories
Valves in Action 1-17 - WCB Sanitary Single Seat Valves Help Streamline Personal Care Process ‖ US
Drawings and Models

Locate 3D STEP files below categorized by:

  • Adapters
  • Actuators
  • Control tops
  • Valve body types

Download Directions: (Recommended Browser: Google Chrome)

  1. Click on a category below
  2. Locate a part number you want to download
  3. Right click on the hyperlink
  4. Choose Save As and browse to your save your file
  5. To open files use a 3D drawing viewer such as (AutoDesk Inventor) or open using SolidWorks.



Additional Resources:



NOTES:

  • Files for reference only. Verify all port dimensions with tables on pages 8, 9 of DS-1201 Single Seat Datasheet.
  • Use Big Machines or contact Application Engineering team to verify assembly validity.



Adapters
 Type Size
  1" 1.5" 2.0" 2.5" 3.0" 4.0"
Standard 102406
102406
 102407 102408 102409 102410
High Pressure 109293 109293 109294 109295 109296 109297
Long Stroke - - - 122306 122307 122308
Actuators
 Detail Type
Fully-Maintainable 4AR / 4AL / 4AA 5AR / 5AL / 5AA 6AR / 6AL / 6AA 6XL
Maintenance-Free A1 / A2 / A3 B1 / B2 / B3 C1 / C2 / C3
Control Tops
 Detail Type
Burkert 8681 Burkert 8681 for Fully-Maintainable Actuators Burkert 8681 for Maintenance-Free Actuators
CU4 CU4 for Fully-Maintainable Actuators CU4 for Maintenance-Free Actuators
WCB WCB for Fully-Maintainable Actuators WCB for Maintenance-Free Actuators
W61 Shut-off
 Body Configuration Body Type Size
    1" 1.5" 2.0" 2.5" 3.0" 4.0"
T T 102400 102401 102402 102403 102404 102405
TD T 102144 102145 102146 102147 102148 102149
D 102785 102786 102787 102788 102789 102790
TS T 102144 102145 102146 102147 102148 102149
S 102773 102774 102775 102776 102777 102778
C C 102449 102450 102451 102452 102453 102454
CD C 102455 102456 102457 102458 102459 102460
D 102785 102786 102787 102788 102789 102790
CS C 102455 102456 102457 102458 102459 102460

S

 102773 102774 102775 102776 102777 102778
L L 107685 107686 107687 107688 107689 107690
TM TM 105580 105581 105582 105583 105584 105585
CM CM 105586 105587 105588 105589 105590 105591
TPS TPS 111709 111710 111711 111712 109955 111713
CPS CPS 112408 112409 112410 112411 112412 112413
TOP R TOP R 108321 108322 108323 108324 108325 108326
TOP L TOP L 108327 108328 108329 108330 108331 108332
COP COP 108333 108334 108335 108336 108337 108338
Y Y --- --- --- 121663 121769 121770
W63 Shut-off
 Body Configuration Body Type Size
    1" 1.5" 2.0" 2.5" 3.0" 4.0"
TS T 102144 102145 102146 102147 102148 102149
S 102773 102774 102775 102776 102777 102778
TD T 102144 102145 102146 102147 102148 102149
D 102785 102786 102787 102788 102789 102790
TB T 102144 102145 102146 102147 102148 102149
B 102779 102780 102781 102782 102783 102784
CS C 102455 102456 102457 102458 102459 102460

S

 102773 102774 102775 102776 102777 102778
CD C 102455 102456 102457 102458 102459 102460

D

 102785 102786 102787 102788 102789 102790
CB C 102455 102456 102457 102458 102459 102460

B

 102779 102780 102781 102782 102783 102784
W62 Divert
 Body Configuration Body Type Size
    1" 1.5" 2.0" 2.5" 3.0" 4.0"
TT T 102144 102145 102146 102147 102148 102149
T 102400 102401 102402 102403 102404 102405
TC T 102144 102145 102146 102147 102148 102149
C 102449 102450 102451 102452 102453 102454
CT C 102455 102456 102457 102458 102459 102460
T 102400 102401 102402 102403 102404 102405
CC C 102455 102456 102457 102458 102459 102460
C 102449 102450 102451 102452 102453 102454
TTD T 102144 102145 102146 102147 102148 102149
T 102144 102145 102146 102147 102148 102149

D

 102785 102786 102787 102788 102789 102790
TCD T 102144 102145 102146 102147 102148 102149
C 102455 102456 102457 102458 102459 102460
D 102785 102786 102787 102788 102789 102790
CTD C 102455
 102456 102457 102458 102459 102460
T 102144 102145 102146 102147 102148 102149
D 102785 102786 102787 102788 102789 102790
CCD C 102455 102456 102457 102458 102459 102460
C 102455 102456 102457 102458 102459 102460
D 102785 102786 102787 102788 102789 102790
TTS T 102144 102145 102146 102147 102148 102149
T 102144 102145 102146 102147 102148 102149
S 102773 102774 102775 102776 102777 102778
TCS T 102144 102145 102146 102147 102148 102149
C 102455 102456 102457 102458 102459 102460

S

 102773 102774 102775 102776 102777 102778
CTS C 102455
 102456 102457 102458 102459 102460
T 102144 102145 102146 102147 102148 102149

S

 102773 102774 102775 102776 102777 102778
CCS C 102455 102456 102457 102458 102459 102460
C 102455 102456 102457 102458 102459 102460

S

 102773 102774 102775 102776 102777 102778
W65 Divert
 Body Configuration Body Type Size
    1" 1.5" 2.0" 2.5" 3.0" 4.0"
TTT T 102144 102145 102146 102147 102148 102149
T 102144 102145 102146 102147 102148 102149

T

 106269 106061 106062 106063 106064 106065
CTC C 102455 102456 102457 102458 102459 102460
T 102144 102145 102146 102147 102148 102149
C 106270 106262 106263 106264 106265 106266
CTT C 102455 102456 102457 102458 102459 102460
T 102144 102145 102146 102147 102148 102149
T 106269 106061 106062 106063 106064 106065
CCT C 102455 102456 102457 102458 102459 102460
C 102455 102456 102457 102458 102459 102460
T 106269 106061 106062 106063 106064 106065
TCC T 102144 102145 102146 102147 102148 102149
C 102455 102456 102457 102458 102459 102460
C 106270 106262 106263 106264 106265 106266
CCC C 102455 102456 102457 102458 102459 102460
C 102455 102456 102457 102458 102459 102460

C

 106270 106262 106263 106264 106265 106266
TTC T 102144 102145 102146 102147 102148 102149
T 102144 102145 102146 102147 102148 102149

C

 106270 106262 106263 106264 106265 106266
TCT T 102144 102145 102146 102147 102148 102149
C 102455 102456 102457 102458 102459 102460

T

 106269 106061 106062 106063 106064 106065
W64 Tank Outlet
 Body Configuration Body Type Size
    1" 1.5" 2.0" 2.5" 3.0" 4.0"
1/8" Flange --- 114824 114824 114825 114826 114827 114828
1/4" Flange --- 114829 114829 114830 114831 114832 114833
W64T/W84T T 102144 102145 102146 102147 102148 102149
W64R/W84R

T

 102144 102145 102146 102147 102148 102149
Port Connections
Size
1" 1.5" 2.0" 2.5" 3.0" 4.0"
S-Line S-Line S-Line S-Line S-Line S-Line
