W80 Series - Aseptic Flush Shut-Off, Divert, Tank Outlet - Single Seat Valves

Product Type:
Valves / Single Seat Valves

Designed for aseptic applications, this valve series utilizes a stem flush adapter to provide a liquid or steam barrier around the valve stem.

Features

A great solution for aseptic applications, this valve series utilizes a stem flush adapter to provide a liquid or steam barrier around the valve stem.

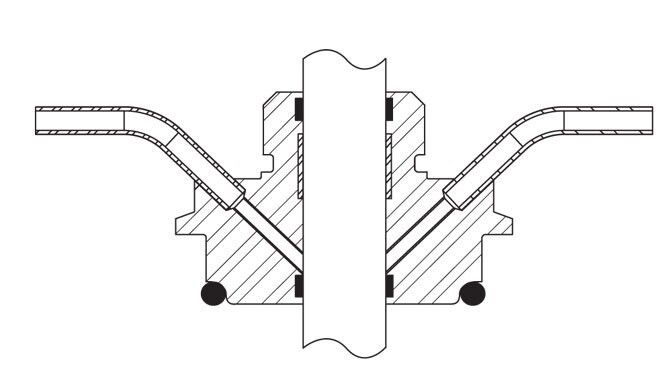

The W80 adapter has an outer perimeter seal to the valve body with an o-ring that is located forward to the product zone to minimize crevices. The product stem passes through the adapter and is sealed in the upper part and the lower part of the adapter with o-rings.

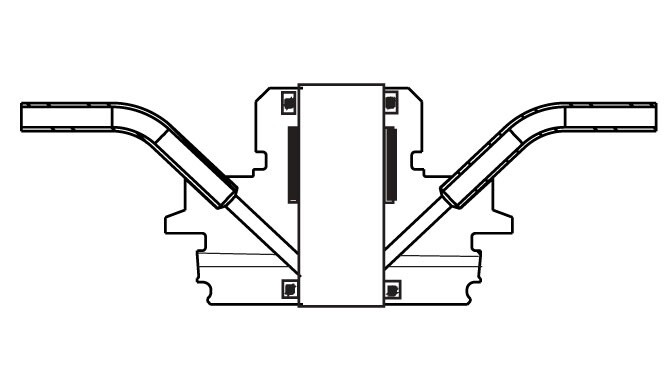

The W80A adapter provides the additional functionality to run a sterile flush on the body to adapter o-ring seal. While the W80 adapter only flushes the stem seal, the W80A adapter provides a fully aseptic sealing solution.

The flush adapter is a direct replacement for the standard adapter piece, maintaining the same dimensions as the W60 Series and providing the same complete, flexible offering.

  • 3-A Certified
  • CE Certified
  • ISO 9001 Certified
Options

Model Types

  • W81 - Shut Off
  • W82 - Divert
  • W83 - Reverse Shut Off
  • W84 - Tank Outlet
  • W84R - Reverse Tank Outlet
  • W85 - Non-Slamming Divert
  • W88 - Throttling
  • W88R - Reverse Throttling
  • W882 Series - Aseptic Divert Throttling
  • W885 Series - Aseptic Non-Slamming Divert Throttling
  • W282/W285 - Aseptic HTST
Drawings & Models
Single Seat Valve Actuators, Control Tops, Adapters - STEP & IGS
Single Seat Valve Actuators, Control Tops, Adapters STEP
zip
Single Seat Valve Actuators, Control Tops, Adapters IGS
zip
Single Seat Valve Upper Bodies - STEP & IGS
Single Seat Valve Upper Bodies STEP
zip
Single Seat Valve Upper Bodies IGS
zip
Single Seat Valve Lower Bodies - STEP & IGS
Single Seat Valve Lower Bodies STEP
zip
Single Seat Valve Lower Bodies IGS
zip
Downloads
Datasheets
DS-1201 W60 Series Shut-off and Divert Single Seat Valves US
DS-1202 W80 Series Aseptic Stem Flush Valves US
VK-1000 - Single Seat, Double Seat and Ball Valve Key US
Flyers
FB-0029 - W-Series Single Seat Valves - Product Highlights US
FB-0050 - Construction - Mix Proof & Single Seat Valves - Product Features US
FB-0051 - Materials - Mix Proof & Single Seat Valves - Product Features US
FB-0084 - Single Seat Valve Actuators - Product Features US
FH-1804 - Control Top Cover Upgrade and NEMA 6 Upgrade Option US GB
Manuals
95-03022 - W60 and W80 Series Valves US
95-03043 - W68 and W88 Series Throttling/Pressure Control Valves US
95-03083 - Control Tops for Waukesha Cherry-Burrell Valves and Switch-Only Options US
H326406 - APV CU4 As-interface Control Unit GB
H323871 - APV CU4 Direct Connect Control Unit GB
Application Sheet
FF-2201 - Single Seat Selection and Application Guide US
