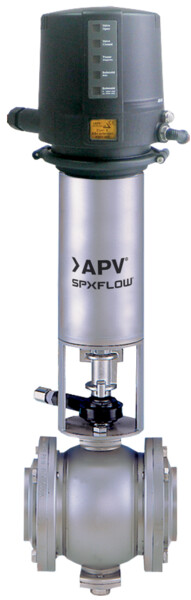

DKR2 Series - Double Seat Ball Valves

Product Type:
Valves / Ball Valves
Hygienic, cleanable (CIP) double seat ball valve.

We Are Here to Help

Find your local representatives within your region for product inquiries.
Where to Buy
Features

Double seat ball valves APV DELTA DKR2 are proving their worth day by day in the fields of brewing, beverage technology, dairies and the food industry as well as in chemistry!

The field of application of the APV DELTA DKR2 valve comprises the separation of two line sections with different fluids by two independent seals with intermediate leakage chamber and free drain to the atmosphere.

They were especially developed for use in industries where the highest priority is given to the protection against the mixing of products.

Main features and advantages

  • Safe separation of incompatible fluids by means of two independent seat seals
  • Suited for pigging systems
  • Timely detection of leakages in the event of seal wear
  • Easy seal replacement
  • Water hammer safe design
  • Hygienic design ensures no product residues
  • CIP cleaning connections to flush the leakage chamber
  • Compact, space-saving construction
  • The ball valve design provides for full pipeline diameter (full bore), there is no diversion or narrowing of the product.

All product contact parts are made of AISI 316L / 1.4404 (DIN EN 100888) stainless steel. Available seal materials are EPDM (standard), HNBR, FPM, VMQ (options). The ball seal is made of PTFE.

Nominal dimensions:

  • DN 25 - DN 125 , 1" - 4"

Variants:

  • DKRH2 valve high pressure design (DN50, DN80)
  • DKRT2 valve tank outlet design (DN50, DN80, DN100)
Videos
DKR Double Seat Ball Valve Maintenance Video
DKR Double Seat Ball Valve Operation Animations
DELTA DKR Double Seat Ball Valve Pressure Hammer Safe Design - SPX FLOW APV
DELTA DKR Double Seat Ball Valve in Pigging Systems - SPX FLOW APV
DELTA DKRT Double Seat Ball Valve Tank Outlet Design - SPX FLOW APV
DELTA DKR Double Seat Ball Valve Cleaning in Closed Position - SPX FLOW APV
DELTA DKR Double Seat Ball Valve Cleaning in Open Position - SPX FLOW APV
Downloads
Brochures
DELTA DKR Ball Valve ID-8039 GB DE FR
Datasheets
Valve Key ID-8047 GB
Manuals
DKR2 Double Seat Ball Valve with Cleaning Connection User Manual GB DE ES FR
DKR2 Double Seat Ball Valve with Cleaning Connection ATEX User Manual GB DE
