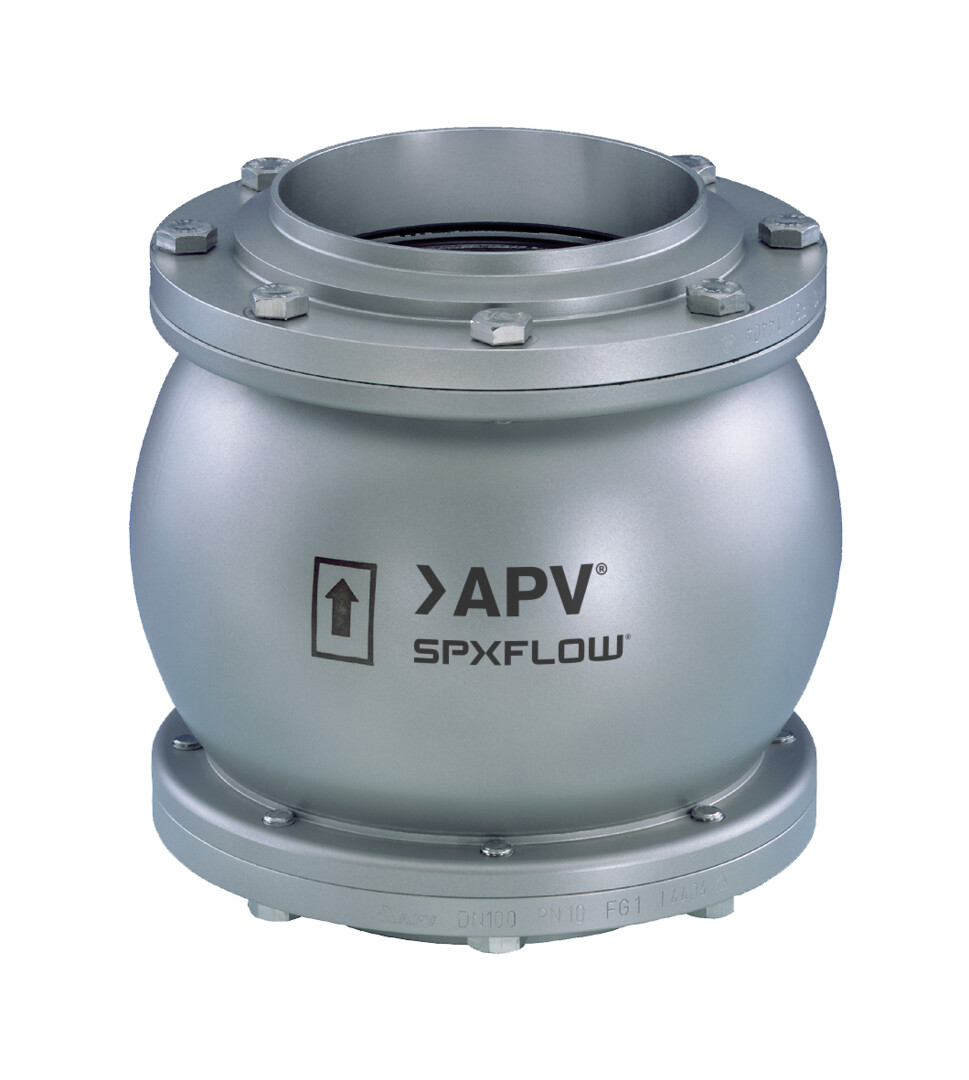

RUF3 Series - Check Valves

Product Type(s) : Check Valves
Description :

The RUF Series Check Valve is used in places where a return flow of product in pipelines must be avoided.  This check valve is utilized in brewery, dairy, chemical and pharmaceutical processing.

WHERE TO BUY

FEATURES

Advantages

  • Reduced maintenance cost due to robust and reliable bearing. The valve has minimal parts.
  • Flexible design - the valve can be installed horizontally or vertically.
  • Easy to maintain - the intermediate flange design means that the valve can easily be removed from the line.
  • Profile seals with ID markings that eliminate gaps and facilitate ordering of spares.
  • Minimum flow resistance/pressure drop
  • Smooth flow due to ball-shaped valve body
  • Minimum response pressure at 0.72 psi (0.05 bar)
  • Full opening cross-section at 1.16 psi (0.08 bar)
  • Designed for CIP cleaning
  • Soft seat seal
  • The RUF3 check valve is designed for direct welding into process pipelines
Theory of Operation

Non-return check valve working principle


A non-return valve is used in places where return flow of product in pipelines must be avoided.

The valve opens by pressure of the liquid against the spring-loaded valve disc. The closing process is initiated by the preloaded spring when the liquid flows in the flow direction stops.

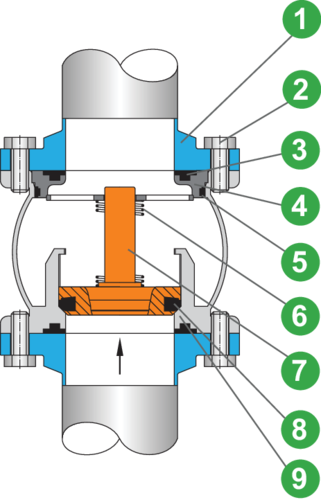

Components of the RUF3 non-return check valve:

  1. Flange
  2. Flange screw
  3. Flange seal
  4. Shaft bearing
  5. Housing seal
  6. Pressure spring
  7. Valve shaft
  8. Seat seal
  9. Valve body

DIMENSIONS & SPECIFICATIONS

Sizes:  1" - 4" / DN25 - DN100 Product Wetted Parts:  AISI 316L / 1.4404 Seal Materials:

  • EPDM,HNBR, FPM, VMQ
  • All seal materials are FDA compliant

Max. Temperature:

  • EPDM, HNBR, FPM and VMQ: 275°F/135°C
  • Short term: 284°F/140°C
  • VMQ and FPM should not be used with hot water/steam

Max. Line Pressure: 145 PSI (10 bar)

OPTIONS & PERFORMANCE

Schedule 5 and 10 pipe sizes available upon request

Pressure Ratings:

Operating Pressure:  Maximum line pressure: 145 psi (10 bar)

Temperature Ratings:

Operating temperature: Maximum  275ºF (135°C),  Short time 284ºF (140ºC) - no steam
