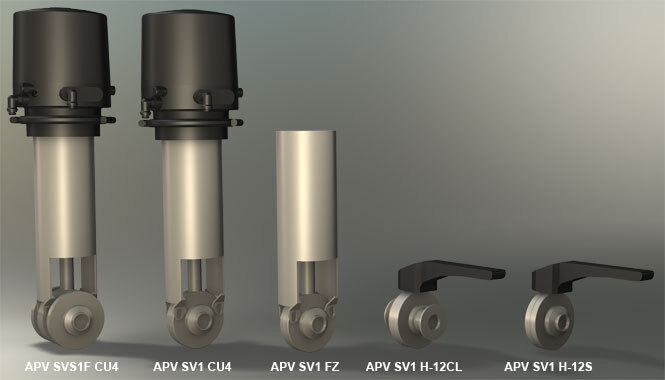

SV / SVS Series - Butterfly Valves

Product Type:
Valves / Butterfly Valves

The DELTA butterfly valves from SPX FLOW are stop valves which can be actuated either manually or pneumatically. The valves are very robust and reliable and the space saving design makes them ideal for nearly all applications - a flexible valve which is very easy to install and to service.

We are here to help!

Contact Us
Where To Buy
Features

Advantages

  • Product passages are smooth and the special seals ensure thorough cleaning.
  • Unique metallic stop prevents the valve flanges from being tightened too much and protects the valve seal from mechanical over-stress thus improving seal lifetime.
  • One actuator covers all diameters from 1″ (25 mm) - 4″ (100 mm).
  • Slide bearings on the pivots of the discs increase operating reliability.
  • Visual indication of open/closed position.
  • SVS1F intermediate flange design allows simple removal and easy access of valves that are in lengthy or fixed pipelines.
  • ATEX compliant models
  • Designs with electro-pneumatic control (flow control) with Bürkert positioner

SV1 valves are available from DN 25 DN 150, 1 4.

SVS1F valves are available from DN 25 to DN 250, 1” – 6” OD, 2”- 6” Sch5




Theory of Operation

How does an SV / SVS series butterfly valve work ?

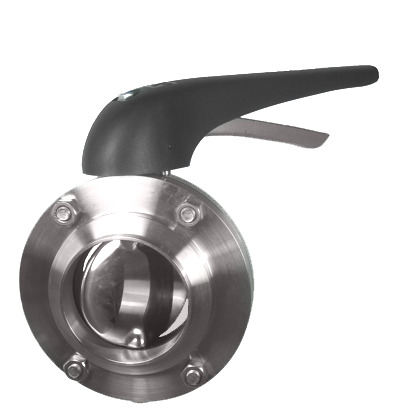

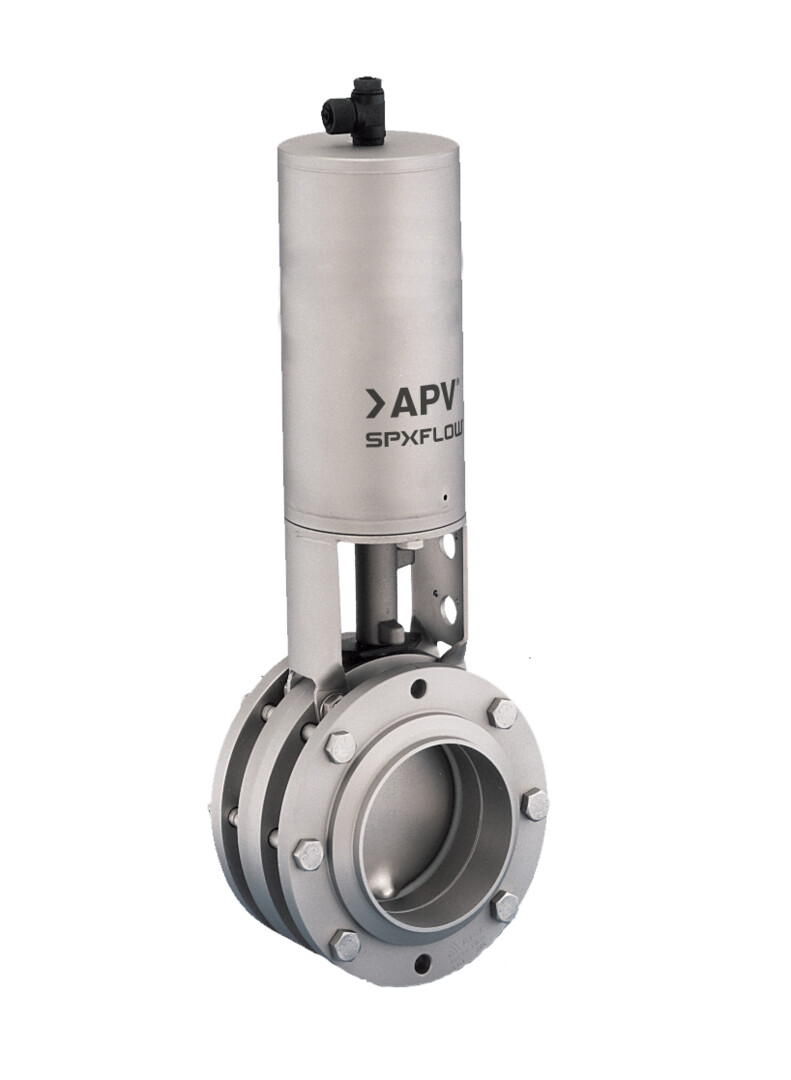

A butterfly valve is used within a processing line and can be in two states.  The open state allows flow and the closed state shuts-off flow in the line.  The valve opens and closes by turning a disc 90° which can be performed manually or remotely using a pneumatic actuator.  The pneumatic actuator opens the disc by way of compressed air and closes the disc by spring force.

Key Applications

Dairy

Beverage

Brewery

Clean in Place

Personal Care

Chemical

Specifications

Materials:
Disc and Body:

  • 316L stainless steel with sanitary finish

Seal:

  • EPDM, HNBR, FPM

Internal Surface Finish:

  • ≤32 Ra (≤0.8µ) - Other finishes available upon request

Sizes:

SV1

  • 1” - 4” O.D. Tube
  • DN25-100

SVS1F

  • 1” - 4” O.D. Tube
  • 1” - 6” Sched 5
  • DN25-250
Performance

Pressure Ratings:

Operating Pressure: Maximum line and control air pressure 145 psi (10 bar)

Temperature Ratings:

  • EPDM, HNBR - 275ºF (135ºC), short time - 284ºF (140ºC)
  • VMQ - 212ºF (100ºC)
  • FPM (not to be used for hot water) - 212ºF (100ºC)
Videos
DELTA SV Butterfly Valve Actuation Demonstration
SV/SVS Butterfly Valve Maintenance Video
Drawings & Models
DIN METRIC

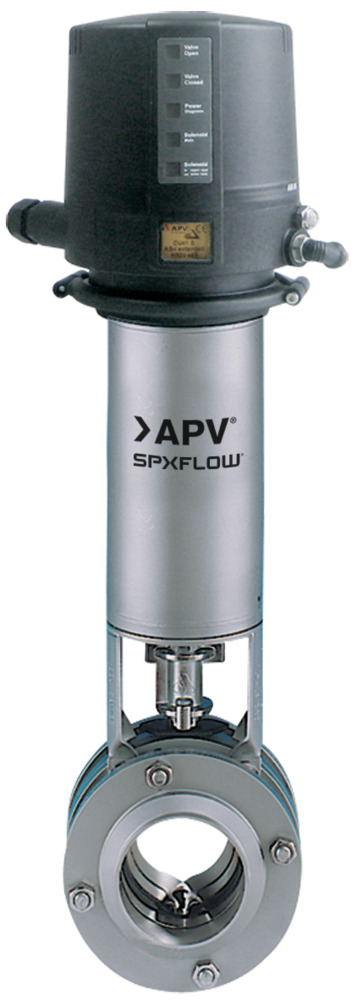

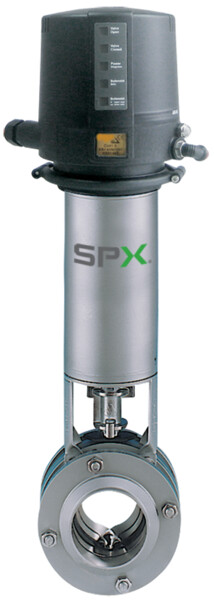

SV1 CU4 Control Unit
zip
SV1 Actuator Proximity Switch
zip
SV1 Manual
zip
SV1 Manual Proximity Switch
zip
SVS1F CU4 Control Unit
zip
SVS1F Actuator Proximity Switch
zip
SVS1F Manual
zip
SVS1F Manual Proximity Switch
zip
OD INCH TUBE
SV1 CU4 Control Unit
zip
SV1 Actuator Proximity Switch
zip
SV1 Manual
zip
SVS1F CU4 Control Unit
zip
SVS1F Actuator Proximity Switch
zip
SVS1F Manual
zip
SVS1F Manual Proximity Switch
zip
Downloads
Brochures
DELTA SV & SVS Butterfly Valves ID-8001 US GB DE
Datasheets
Valve Key ID-8047 GB
Flyers
Butterfly Valves - FB-0038 US
Manuals
SV1 Butterfly Valve User Manual GB DE DK ES FR
SV1 DN 125-150 User Manual GB DE
SVS1F Butterfly Valve User Manual GB DE DK ES FR
SVS1F-125-250 User Manual GB DE DK FR
SVS1F DN25-100 Butterfly Valve ATEX User Manual GB DE DK SV
SV1 Butterfly Valve ATEX User Manual GB DE
