W+ Series (IEC) - Centrifugal Pumps

Product Type:
Pumps / Centrifugal Pumps

W+ Centrifugal pumps are designed to achieve lifetime cost savings and lower energy consumption.

We are here to help!

Contact Us
Where To Buy
Features

W+ is a comprehensive range of premium sanitary end-suction centrifugal pumps designed with maximum operating benefits and minimal life cycle costs in mind.

  • Reliable and heavy duty design
  • Energy efficient
  • Quiet performance with minimal vibration
  • Superior shaft seal design
  • High pressure capability
  • 3-A (optional) and EHEDG (European Hygienic Engineering & Design Group) certified.
  • Designed for CIP (Cleaning In Place) as well as SIP (Sterilizing In Place)
  • Suitable for wide variety of food, beverage and pharmaceutical products
  • Wide range of optional features available
  • Easy and cost effective maintenance



W+ Pharma Model

The APV W+ Pharm model has been specifically developed to meet the stringent requirements of the pharmaceutical and biotech industries with features that provide ultra-hygienic operation.  Equipped with a drain port to enhance cleanability, this model is designed for excellent reliability, gentle product handling, high efficiency and low NPSHr, making it ideal for a wide range of pharmaceutical processes, such as producing water for injection, purified water and de-mineralized water. High efficiency impellers equipped with the patented APV spiral volute on their backplate ensures maximum efficiency, gentle product handling with direct liquid transfer from inlet to outlet.

  • Model and size: W+22/20, W+35/35, W+35/55, W+50/8, W+55/35
  • Wet surface finish: Ra<0.5 µm, electrical polish
  • Shaft seal: SiC/SiC
  • Elastomer: EPDM, USP class VI, 121°C
  • Drain port: ½” clamp connection for drain valve (drain valve NOT included)
  • Pump outlet: Standard (vertical) or turned 45°C left.





Theory of Operation

The W+ pump series is based on a proven hydraulic design that promotes high operational efficiency and reduces noise and vibration levels while maintaining hygienic standards.

Low viscous fluids enter through the center inlet and flow around the impeller which turns at various speeds based on application requirements. The fluid then moves to the outer extents of the impeller vanes by centrifugal force and is directed through the outlet. As with other SPX FLOW centrifugal pumps, impeller and casing designs are optimized to perform more efficiently over a wide range of operating conditions. The casing and port are further designed to maximize performance under low NPSH conditions.

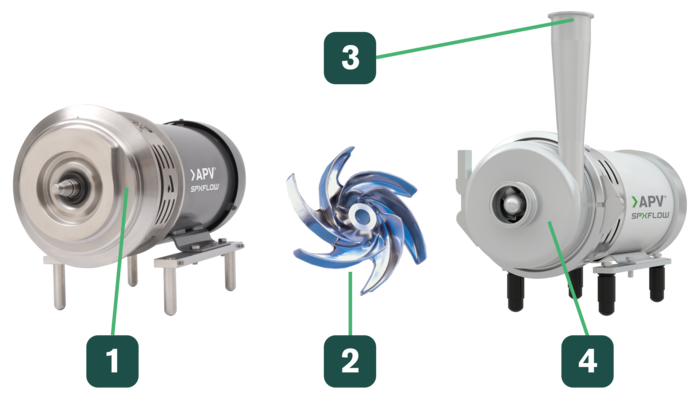

  • 1 - Unique spiral volute positioned in the back plate of the pump ensures a direct transfer of liquid from inlet to outlet
  • 2 - Advanced, high efficiency impeller design
  • 3 - Extended outlets smooth transition to process piping while reducing turbulence and preventing product build-up
  • 4 - Heavy walled pump casing insures that efficiency levels are maintained even at high pressure
Key Applications

Bakery and Confectionery

  • Batters
  • Fats & Oils
  • Flavorings
  • Sweeteners
  • Yeast Slurry
  • Syrups





Dairy

  • Whey
  • Cream
  • Milk
  • Sweetended Condensed
  • RO/UF Systems





Pharmaceutical/Cosmetics

  • Emulsions
  • Extracts
  • Slurries
  • Syrups
  • Dyes
  • Alcohols
  • Essential Oils





Chemical/Industrial

  • Detergents
  • Dyes
  • Soap Liquors & Solutions
  • Ammonium Nitrate
  • Propyl Alcohol
  • Potassium Chloride
  • Sodium Acetate
Specifications
Model Inlet Size Outlet Size Maximum Impeller Size Maximum Capacity (M³/H) Maximum Head (MWC) Maximum Discharge Pressure Maximum Operating Pressure
mm inch mm inch mm inch 1450 rpm 2900 rpm 1450 rpm 2900 rpm

18 bar (261 psi):
W+10/8, W+22/20, W+30/80, W+35/55, W+35/35, W+110/130



14 bar (203 psi):
W+25/210, W+30/120, W+50/8, W+55/35, W+55/60, W+60/110, W+65/350,
W+70/40, W+80/80



Optional:
Heavy duty clamping ring, increasing max. outlet pressure to 25 bar (263 psi): W+30/120, W+55/35, W+55/60, W+60/110, W+70/40



20 bar (290 psi):
W+80/80







95°C (203°F) as standard

>95°C (203°F) - contact SPX FLOW



10/8 38 1.5 25 1 110 4.3 7 13 3 13
22/20 51 2 51 2 142 5.6 16 33 7 28
25/210 152 6 102 4 290 11.4 300 -- 28 --
30/80 102 4 76 3 170 6.7 75 150 9 35
30/120 102 4 76 3 175 6.9 77 155 10 36
35/35 65 2.5 51 2 175 6.9 26 53 10 41
35/55 76 3 65 2.5 180 7.1 43 87 10 42
50/8 38 1.5 25 1 200 7.9 8 18 14 57
50/600 250 9.8 200 7.9 420 16.6 725 -- 55 --
55/35 65 2.5 38 1.5 210 8.3 26 53 16 64
55/60 76 3 51 2 220 8.7 58 115 16 65
60/110 102 4 76 3 230 9.1 90 170 18 75
65/350 152 6 102 4 260 10.2 230 475 21 88
70/40 65 2.5 38 1.5 240 9.4 21 44 21 81
80/80 76 3 51 2 255 10 58 115 23 92
110/130 102 4 76 3 290 11.4 110 225 32 130





Materials Port Connections Motor
Casing SS 316L W+ pumps can be supplied with all standard threads and clamps in accordance to DS, BS, DIN, SMS and ISO as well as DIN flanges.

I EC metric standard, 2, 4 or 6 poles, at 50/60 Hz, I P55, insulation class F. W+ pumps are as standard in Europe delivered with motors meeting the I E2 efficiency level in accordance to the Directive 2005/32/ EC Eco-design of Energy using Products.





W+ pumps meet the requirements of the Regulation (EC) No 1935/2004 on materials and articles intended to come into contact with food and repealing Directives 80/590/ E EC and 89/109/ E EC.

Impeller SS 316L
Impeller Nut SS 316L
Inducer (Wi+) SS 316L
Back Plate SS 316L
Shaft SS 316L
Clamp Ring SS 304
Extension Frame SS 304
Legs SS 304
Motor Shroud SS 304
Shaft Seal

Standard:
Carbon/Silicon Carbide

Optional:
Silicon Carbide/Silicon Carbide

Elastomers

Standard:
EPDM (FDA COMPLIANT)

Optional:
FPM, FEP ENCAPSULATED FPM





W+ Pharma Pump Specifications:

  • 3.1- EN10204 certificate (wetted parts)
  • Surface measurement report (wetted parts)
  • Electropolishing and passivation certificate (referencing sales order number)
  • Product wetted elastomers to USP Class VI
  • FDA compliant
  • 3-A & EHEDG certification
Performance

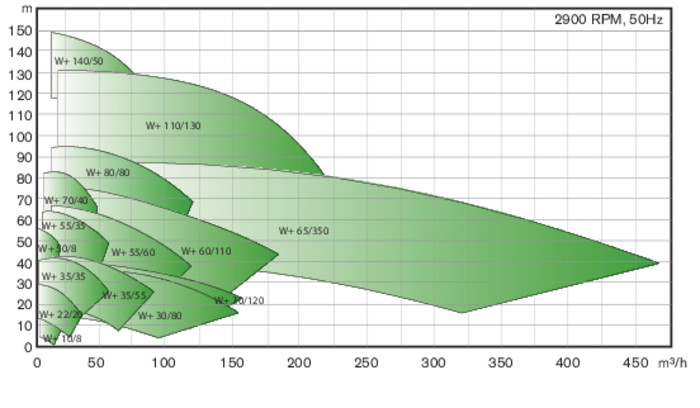

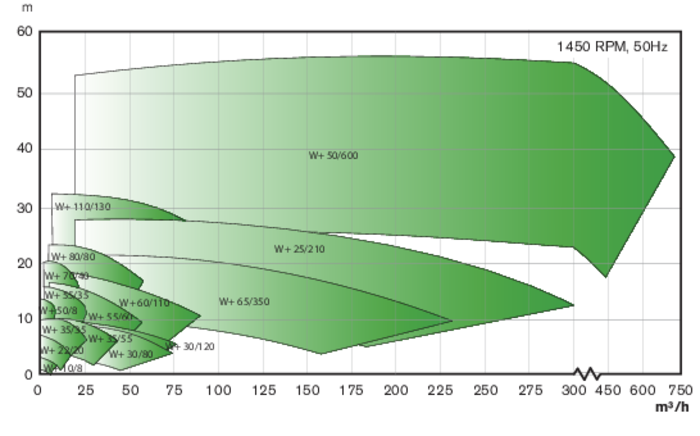

The W+ range consists of 17 standard models with pressure and flow capacities to 15 bar (218 psi), 50 Hz and to 725 m3/h (191,525 gal/h), 50 Hz, and a number of special versions which may be specifically adapted to customer requirements. The W+ pumps are modular so that any pumping job can be done with a perfectly customized W+ pump.




SPX FLOW offers an on-line centrifugal pump selector tool, PUMP-FLO Connect.
Please log-in or create your account and correctly size an APV centrifugal pump.








Performance Curves

W+ Pumps -  How To Use Performance Curves || PDF

W+ Sanitary Centrifugal Pump Curve Book 50Hz || US || GB



Model W+ 10/8 38mmx25mm 50Hz 2900RPM/60Hz 3500RPM || PDF

Model W+ 22/20 51mmx51mm 50Hz 1450-2900RPM/60Hz 1750-3500RPM ||PDF

Model W+ 22/20 Low Flow Impeller 51mmx51mm 50Hz 1450-2900RPM/60Hz 1750-3500RPM || PDF

Model W+ 25/210 NW150xNW150 50Hz 1450RPM/60Hz 1750RPM || PDF

Model W+ 30/120 101,6mmx76mm 50Hz 1450-2900RPM/60Hz 1750-3500RPM || PDF

Model W+ 30/80 101,6mmx76mm 50Hz 1450-2900RPM/60Hz 1750-3500RPM || PDF

Model W+ 35/35 63,5mmx51mm 50Hz 1450-2900RPM/60Hz 1750-3500RPM || PDF

Model W+ 35/35 Low Flow Impeller 63,5mmx51mm 50Hz 1450-2900RPM/60Hz 1750-3500RPM|| PDF

Model W+ 35/55 76mmx63,5mm 50Hz 1450-2900RPM/60Hz 1750-3500RPM || PDF

Model W+ 50/600 DN250xDN250 50Hz 975-1200RPM/60Hz 1450-1750RPM || PDF

Model W+ 50/8 38mmx25mm 50Hz 1450-2900RPM/60Hz 1750-3500RPM || PDF

Model W+ 55/35 63,5mmx38mm 50Hz 1450-2900RPM/60Hz 1750-3500RPM || PDF

Model W+ 55/60 76mmx51mm 50Hz 1450-2900RPM/60Hz 1750-3500RPM || PDF

Model W+ 60/110 110,6mmx76mm 50Hz 1450-2900RPM and 101,6mmx51mm 60Hz 1750-3500RPM || PDF

Model W+ 65/350 NW150xNW150 50Hz 1450-2900RPM/60Hz 1750-3500RPM || PDF

Model W+ 70/40 63,5mmx38mm 50Hz 1450-2900RPM/60Hz 1750-3500RPM || PDF

Model W+ 80/80 76mmx51mm 50Hz 1450-2900RPM/60Hz 1750-3500RPM || PDF

Model W+ 110/130 101,6mmx76mm 50Hz 1450-2900RPM/60Hz 1750-3500RPM || PDF

Model W+ 140/50 2 stage 76mmx51mm 3 stage 50Hz 2950RPM/60Hz 3500RPM || PDF

Videos
W+ Series Centrifugal Pump Animation
Drawings & Models
W+ Model 10/8 Frame 80 Motor Types:
B2 (0.75 kW, 3000 rpm) C2 (1.1 kW, 3000 rpm) A4 (0.55 kW, 1500 rpm) D4 (0.75 kW, 1500 rpm)
zip
W+ Model 22/20 Frame 80 Motor Types:
B2 (0.75 kW, 3000 rpm) C2 (1.1 kW, 3000 rpm) A4 (0.55 kW, 1500 rpm) D4 (0.75 kW, 1500 rpm)
zip
W+ Model 22/20 Frame 90 Motor Types:
L2 (1.5 kW, 3000 rpm) LB2 (2.2 kW, 3000 rpm) LB4 (1.1 kW, 1500 rpm)
zip
LD4 (1.5 kW, 1500 rpm)
zip
W+ Model 22/20 Frame 100 Motor Types:
LB2 (3 kW, 3000 rpm) LC4 (2.2 kW, 1500 rpm)
zip
LD4 (3 kW, 1500 rpm)
zip
W+ Model 22/20 Frame 112 Motor Types:
MB2 (4 kW, 3000 rpm) MB4 (4 kW, 1500 rpm)
zip
W+ Model 22/20 Frame 132 Motor Types:
SB2 (5.5 kW, 3000 rpm) M4 (5.5 kW, 1500 rpm) MA4 (7.5 kW, 1500 rpm)
zip
SC2 (7.5 kW, 3000 rpm)
zip
SMB2 (5.5 kW, 3000 rpm)
zip
W+ Model 25/210 Frame 160 Motor Types:
MLB4 (15 kW, 1500 rpm)
zip
MLA2 (11 kW, 3000 rpm) MLB2 (15 kW, 3000 rpm) MLC2 (18.5 kW, 3000 rpm) MLA4 (11 kW, 1500 rpm)
zip
W+ Model 25/210 Frame 180 Motor Types:
MLA2 (22 kW, 3000 rpm) MLA4 (18.5 kW, 1500 rpm) MLB4 (22 kW, 1500 rpm)
zip
W+ Model 25/210 Frame 200 Motor Types:
MLA2-S (30 kW, 3000 rpm)
zip
W+ Model 25/210 Frame 225 Motor Types:
SMA2-D (45 kW, 3000 rpm) SMB2-D (55 kW, 3000 rpm)
zip
SMC4-D (55 kW, 1500 rpm)
zip
W+ Model 30/80 Frame 90 Motor Types:
L2 (1.5 kW, 3000 rpm) LB2 (2.2 kW, 3000 rpm) LB4 (1.1 kW, 1500 rpm)
zip
W+ Model 30/80 Frame 100 Motor Types:
LD4 (3 kW, 1500 rpm)
zip
LB2 (3 kW, 3000 rpm) LC4 (2.2 kW, 1500 rpm)
zip
W+ Model 30/80 Frame 112 Motor Types:
MB2 (4 kW, 3000 rpm) MB4 (4 kW, 1500 rpm)
zip
W+ Model 30/80 Frame 132 Motor Types:
SMB2 (5.5 kW, 3000 rpm)
zip
SC2 (7.5 kW, 3000 rpm)
zip
SB2 (5.5 kW, 3000 rpm) M4 (5.5 kW, 1500 rpm) MA4 (7.5 kW, 1500 rpm)
zip
W+ Model 30/80 Frame 160 Motor Types:
MLB4 (15 kW, 1500 rpm)
zip
MLA2 (22 kW, 3000 rpm) MLB2 (15 kW, 3000 rpm) MLC2 (18.5 kW, 3000 rpm) MLA4 (11 kW, 1500 rpm)
zip
W+ Model 30/120 Frame 90 Motor Types:
L2 (1.5 kW, 3000 rpm) LB2 (2.2 kW, 3000 rpm) LB4 (1.1 kW, 1500 rpm)
zip
W+ Model 30/120 Frame 100 Motor Types:
LD4 (3 kW, 1500 rpm)
zip
LB2 (3 kW, 3000 rpm) LC4 (2.2 kW, 1500 rpm)
zip
W+ Model 30/120 Frame 112 Motor Types:
MB2 (4 kW, 3000 rpm) MB4 (4 kW, 1500 rpm)
zip
W+ Model 30/120 Frame 132 Motor Types:
SMB2 (5.5 kW, 3000 rpm)
zip
SC2 (7.5 kW, 3000 rpm)
zip
SB2 (5.5 kW, 3000 rpm) M4 (5.5 kW, 1500 rpm) MA4 (7.5 kW, 1500 rpm)
zip
W+ Model 30/120 Frame 160 Motor Types:
MLB4 (15 kW, 1500 rpm)
zip
MLA2 (22 kW, 3000 rpm) MLB2 (15 kW, 3000 rpm) MLC2 (18.5 kW, 3000 rpm) MLA4 (11 kW, 1500 rpm)
zip
W+ Model 30/120 Frame 180 Motor Types:
MLA2 (22 kW, 3000 rpm) MLA4 (18.5 kW, 1500 rpm) MLB4 (22 kW, 1500 rpm)
zip
W+ Model 30/120 Frame 200 Motor Types:
MLA2-S (30 kW, 3000 rpm)
zip
MLA2-D (30 kW, 3000 rpm) MLB2-D (37 kW, 3000 rpm)
zip
W+ Model 35/35 Frame 90 Motor Types:
L2 (1.5 kW, 3000 rpm) LB2 (2.2 kW, 3000 rpm) LB4 (1.1 kW, 1500 rpm)
zip
LD4 (1.5 kW, 1500 rpm)
zip
W+ Model 35/35 Frame 100 Motor Types:
LD4 (3 kW, 1500 rpm)
zip
LB2 (3 kW, 3000 rpm) LC4 (2.2 kW, 1500 rpm)
zip
W+ Model 35/35 Frame 112 Motor Types:
MB2 (4 kW, 3000 rpm) MB4 (4 kW, 1500 rpm)
zip
W+ Model 35/35 Frame 132 Motor Types:
SMB2 (5.5 kW, 3000 rpm)
zip
SC2 (7.5 kW, 3000 rpm)
zip
SB2 (5.5 kW, 3000 rpm) M4 (5.5 kW, 1500 rpm) MA4 (7.5 kW, 1500 rpm)
zip
W+ Model 35/35 Frame 160 Motor Types:
MLB4 (15 kW, 1500 rpm)
zip
MLA2 (22 kW, 3000 rpm) MLB2 (15 kW, 3000 rpm) MLC2 (18.5 kW, 3000 rpm) MLA4 (11 kW, 1500 rpm)
zip
W+ Model 35/55 Frame 90 Motor Types:
L2 (1.5 kW, 3000 rpm) LB2 (2.2 kW, 3000 rpm) LB4 (1.1 kW, 1500 rpm)
zip
LD4 (1.5 kW, 1500 rpm)
zip
W+ Model 35/55 Frame 112 Motor Types:
MB2 (4 kW, 3000 rpm) MB4 (4 kW, 1500 rpm)
zip
W+ Model 35/55 Frame 132 Motor Types:
SMB2 (5.5 kW, 3000 rpm)
zip
SC2 (7.5 kW, 3000 rpm)
zip
SB2 (5.5 kW, 3000 rpm) M4 (5.5 kW, 1500 rpm) MA4 (7.5 kW, 1500 rpm)
zip
W+ Model 35/55 Frame 160 Motor Types:
MLB4 (15 kW, 1500 rpm)
zip
MLA2 (22 kW, 3000 rpm) MLB2 (15 kW, 3000 rpm) MLC2 (18.5 kW, 3000 rpm) MLA4 (11 kW, 1500 rpm)
zip
W+ Model 50/8 Frame 90 Motor Types:
L2 (1.5 kW, 3000 rpm) LB2 (2.2 kW, 3000 rpm) LB4 (1.1 kW, 1500 rpm)
zip
LD4 (1.5 kW, 1500 rpm)
zip
W+ Model 50/8 Frame 100 Motor Types:
LD4 (3 kW, 1500 rpm)
zip
LB2 (3 kW, 3000 rpm) LC4 (2.2 kW, 1500 rpm)
zip
W+ Model 50/8 Frame 112 Motor Types:
MB2 (4 kW, 3000 rpm) MB4 (4 kW, 1500 rpm)
zip
W+ Model 50/8 Frame 132 Motor Types:
SMB2 (5.5 kW, 3000 rpm)
zip
SC2 (7.5 kW, 3000 rpm)
zip
SB2 (5.5 kW, 3000 rpm) M4 (5.5 kW, 1500 rpm) MA4 (7.5 kW, 1500 rpm)
zip
W+ 50/600 Model Frame 180 Motor Types:
MLA2 (22 kW, 3000 rpm) MLA4 (18.5 kW, 1500 rpm) MLB4 (22 kW, 1500 rpm)
zip
W+ 50/600 Model Frame 200 Motor Types:
MLA2-D (30 kW, 3000 rpm) MLB2-D (37 kW, 3000 rpm)
zip
W+ 50/600 Model Frame 250 Motor Types:
SMB2-D (75 kW, 3000 rpm)
zip
W+ 50/600 Model Frame 225 Motor Types:
SMA2-D (45 kW, 3000 rpm)
zip
SMC4-D (55 kW, 1500 rpm)
zip
W+ Model 55/35 Frame 90 Motor Types:
L2 (1.5 kW, 3000 rpm) LB2 (2.2 kW, 3000 rpm) LB4 (1.1 kW, 1500 rpm)
zip
LD4 (1.5 kW, 1500 rpm)
zip
W+ Model 55/35 Frame 100 Motor Types:
LD4 (3 kW, 1500 rpm)
zip
LB2 (3 kW, 3000 rpm) LC4 (2.2 kW, 1500 rpm)
zip
W+ Model 55/35 Frame 112 Motor Types:
MB2 (4 kW, 3000 rpm) MB4 (4 kW, 1500 rpm)
zip
W+ Model 55/35 Frame 132 Motor Types:
SMB2 (5.5 kW, 3000 rpm)
zip
SC2 (7.5 kW, 3000 rpm)
zip
SB2 (5.5 kW, 3000 rpm) M4 (5.5 kW, 1500 rpm) MA4 (7.5 kW, 1500 rpm)
zip
W+ Model 55/35 Frame 160 Motor Types:
MLB4 (15 kW, 1500 rpm)
zip
MLA2 (22 kW, 3000 rpm) MLB2 (15 kW, 3000 rpm) MLC2 (18.5 kW, 3000 rpm) MLA4 (11 kW, 1500 rpm)
zip
W+ Model 55/60 Frame 90 Motor Types:
LD4 (3 kW, 1500 rpm)
zip
L2 (1.5 kW, 3000 rpm) LB2 (2.2 kW, 3000 rpm) LB4 (1.1 kW, 1500 rpm)
zip
W+ Model 55/60 Frame 100 Motor Types:
LB2 (3 kW, 3000 rpm) LC4 (2.2 kW, 1500 rpm)
zip
LD4 (3 kW, 1500 rpm)
zip
W+ Model 55/60 Frame 112 Motor Types:
MB2 (4 kW, 3000 rpm) MB4 (4 kW, 1500 rpm)
zip
W+ Model 55/60 Frame 132 Motor Types:
SB2 (5.5 kW, 3000 rpm) M4 (5.5 kW, 1500 rpm) MA4 (7.5 kW, 1500 rpm)
zip
SC2 (7.5 kW, 3000 rpm)
zip
SMB2 (5.5 kW, 3000 rpm)
zip
W+ Model 55/60 Frame 160 Motor Types:
MLB4 (15 kW, 1500 rpm)
zip
MLA2 (22 kW, 3000 rpm) MLB2 (15 kW, 3000 rpm) MLC2 (18.5 kW, 3000 rpm) MLA4 (11 kW, 1500 rpm)
zip
W+ Model 55/60 Frame 180 Motor Types:
MLA2 (22 kW, 3000 rpm) MLA4 (18.5 kW, 1500 rpm) MLB4 (22 kW, 1500 rpm)
zip
W+ Model 55/60 Frame 200 Motor Types:
MLA2-S (30 kW, 3000 rpm)
zip
MLA2-D (30 kW, 3000 rpm) MLB2-D (37 kW, 3000 rpm)
zip
W+ Model 60/110 Frame 90 Motor Types:
L2 (1.5 kW, 3000 rpm) LB2 (2.2 kW, 3000 rpm) LB4 (1.1 kW, 1500 rpm)
zip
LD4 (1.5 kW, 1500 rpm)
zip
W+ Model 60/110 Frame 100 Motor Types:
LB2 (3 kW, 3000 rpm) LC4 (2.2 kW, 1500 rpm)
zip
LD4 (3 kW, 1500 rpm)
zip
W+ Model 60/110 Frame 112 Motor Types:
MB2 (4 kW, 3000 rpm) MB4 (4 kW, 1500 rpm)
zip
W+ Model 60/110 Frame 132 Motor Types:
SB2 (5.5 kW, 3000 rpm) M4 (5.5 kW, 1500 rpm) MA4 (7.5 kW, 1500 rpm)
zip
SC2 (7.5 kW, 3000 rpm)
zip
SMB2 (5.5 kW, 3000 rpm)
zip
W+ Model 60/110 Frame 160 Motor Types:
MLB4 (15 kW, 1500 rpm)
zip
MLA2 (22 kW, 3000 rpm) MLB2 (15 kW, 3000 rpm) MLC2 (18.5 kW, 3000 rpm) MLA4 (11 kW, 1500 rpm)
zip
W+ Model 60/110 Frame 180 Motor Types:
MLA2 (22 kW, 3000 rpm) MLA4 (18.5 kW, 1500 rpm) MLB4 (22 kW, 1500 rpm)
zip
W+ Model 60/110 Frame 200 Motor Types:
MLA2-S (30 kW, 3000 rpm)
zip
MLA2-D (30 kW, 3000 rpm) MLB2-D (37 kW, 3000 rpm)
zip
W+ Model 60/110 Frame 225 Motor Types:
SMA2-D (45 kW, 3000 rpm)
zip
SMC4-D (55 kW, 1500 rpm)
zip
W+ Model 65/350 Frame 132 Motor Types:
SC2 (7.5 kW, 3000 rpm)
zip
SMB2 (5.5 kW, 3000 rpm)
zip
W+ Model 65/350 Frame 160 Motor Types:
MLB4 (15 kW, 1500 rpm)
zip
MLA2 (22 kW, 3000 rpm) MLB2 (15 kW, 3000 rpm) MLC2 (18.5 kW, 3000 rpm) MLA4 (11 kW, 1500 rpm)
zip
W+ Model 65/350 Frame 180 Motor Types:
MLA2 (22 kW, 3000 rpm) MLA4 (18.5 kW, 1500 rpm) MLB4 (22 kW, 1500 rpm)
zip
W+ Model 65/350 Frame 200 Motor Types:
MLA2-S (30 kW, 3000 rpm)
zip
MLA2-D (30 kW, 3000 rpm) MLB2-D (37 kW, 3000 rpm)
zip
W+ Model 65/350 Frame 250 Motor Types:
SMB2-D (55 kW, 3000 rpm)
zip
W+ Model 65/350 Frame 225 Motor Types:
SMC4-D (55 kW, 1500 rpm)
zip
SMA2-D (45 kW, 3000 rpm) SMB2-D (55 kW, 3000 rpm)
zip
W+ Model 70/40 Frame 90 Motor Types:
LD4 (3 kW, 1500 rpm)
zip
L2 (1.5 kW, 3000 rpm) LB2 (2.2 kW, 3000 rpm) LB4 (1.1 kW, 1500 rpm)
zip
W+ Model 70/40 Frame 100 Motor Types:
LB2 (3 kW, 3000 rpm) LC4 (2.2 kW, 1500 rpm)
zip
LD4 (3 kW, 1500 rpm)
zip
W+ Model 70/40 Frame 112 Motor Types:
MB2 (4 kW, 3000 rpm) MB4 (4 kW, 1500 rpm)
zip
W+ Model 70/40 Frame 132 Motor Types:
SB2 (5.5 kW, 3000 rpm) M4 (5.5 kW, 1500 rpm) MA4 (7.5 kW, 1500 rpm)
zip
SC2 (7.5 kW, 3000 rpm)
zip
SMB2 (5.5 kW, 3000 rpm)
zip
W+ Model 70/40 Frame 160 Motor Types:
MLB4 (15 kW, 1500 rpm)
zip
MLA2 (22 kW, 3000 rpm) MLB2 (15 kW, 3000 rpm) MLC2 (18.5 kW, 3000 rpm) MLA4 (11 kW, 1500 rpm)
zip
W+ Model 70/40 Frame 180 Motor Types:
MLA2 (22 kW, 3000 rpm) MLA4 (18.5 kW, 1500 rpm) MLB4 (22 kW, 1500 rpm)
zip
W+ Model 70/40 Frame 200 Motor Types:
MLA2-S (30 kW, 3000 rpm)
zip
MLA2-D (30 kW, 3000 rpm) MLB2-D (37 kW, 3000 rpm)
zip

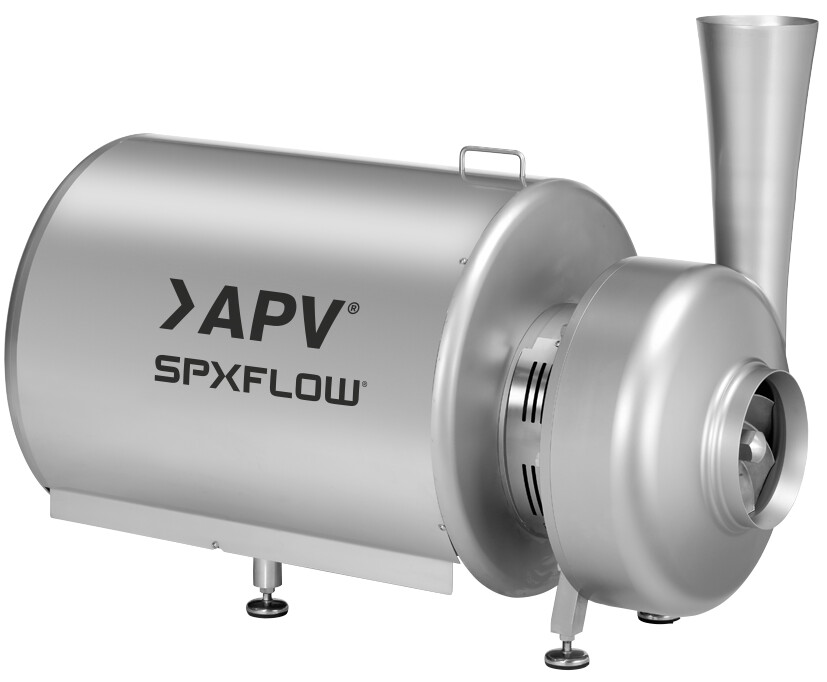

W+ Model 80/80 Frame 90 Motor Types:
LD4 (3 kW, 1500 rpm)
zip
L2 (1.5 kW, 3000 rpm) LB2 (2.2 kW, 3000 rpm) LB4 (1.1 kW, 1500 rpm)
zip
W+ Model 80/80 Frame 100 Motor Types:
LB2 (3 kW, 3000 rpm) LC4 (2.2 kW, 1500 rpm)
zip
LD4 (3 kW, 1500 rpm)
zip
W+ Model 80/80 Frame 112 Motor Types:
MB2 (4 kW, 3000 rpm) MB4 (4 kW, 1500 rpm)
zip
W+ Model 80/80 Frame 132 Motor Types:
SB2 (5.5 kW, 3000 rpm) M4 (5.5 kW, 1500 rpm) MA4 (7.5 kW, 1500 rpm)
zip
SC2 (7.5 kW, 3000 rpm)
zip
SMB2 (5.5 kW, 3000 rpm)
zip
W+ Model 80/80 Frame 160 Motor Types:
MLB4 (15 kW, 1500 rpm)
zip
MLA2 (22 kW, 3000 rpm) MLB2 (15 kW, 3000 rpm) MLC2 (18.5 kW, 3000 rpm) MLA4 (11 kW, 1500 rpm)
zip
W+ Model 80/80 Frame 180 Motor Types:
MLA2 (22 kW, 3000 rpm) MLA4 (18.5 kW, 1500 rpm) MLB4 (22 kW, 1500 rpm)
zip
W+ Model 80/80 Frame 200 Motor Types:
MLA2-S (30 kW, 3000 rpm)
zip
MLA2-D (30 kW, 3000 rpm) MLB2-D (37 kW, 3000 rpm)
zip
W+ Model 80/80 Frame 225 Motor Types:
SMA2-D (45 kW, 3000 rpm)
zip
SMC4-D (55 kW, 1500 rpm)
zip
W+ Model 110/130 Model Frame 100 Motor Types:
LB2 (3 kW, 3000 rpm) LC4 (2.2 kW, 1500 rpm)
zip
LD4 (3 kW, 1500 rpm)
zip
W+ Model 110/130 Model Frame 112 Motor Types:
MB2 (4 kW, 3000 rpm) MB4 (4 kW, 1500 rpm)
zip
W+ Model 110/130 Model Frame 132 Motor Types:
SB2 (5.5 kW, 3000 rpm) M4 (5.5 kW, 1500 rpm) MA4 (7.5 kW, 1500 rpm)
zip
SC2 (7.5 kW, 3000 rpm)
zip
SMB2 (5.5 kW, 3000 rpm)
zip
W+ Model 110/130 Model Frame 160 Motor Types:
MLB4 (15 kW, 1500 rpm)
zip
MLA2 (22 kW, 3000 rpm) MLB2 (15 kW, 3000 rpm) MLC2 (18.5 kW, 3000 rpm) MLA4 (11 kW, 1500 rpm)
zip
W+ Model 110/130 Model Frame 180 Motor Types:
MLA2 (22 kW, 3000 rpm) MLA4 (18.5 kW, 1500 rpm) MLB4 (22 kW, 1500 rpm)
zip
W+ Model 110/130 Model Frame 200 Motor Types:
MLA2-S (30 kW, 3000 rpm)
zip
MLA2-D (30 kW, 3000 rpm) MLB2-D (37 kW, 3000 rpm)
zip
W+ Model 110/130 Frame 225 Motor Types:
SMA2-D (45 kW, 3000 rpm)
zip
SMC4-D (55 kW, 1500 rpm)
zip
Downloads
Brochures
W+ Centrifugal Pump - IEC version ID-7004 GB DE FR SV
W+ Sanitary ID-7025 GB DE ES FR
Pumps W+ Ultra Hygienic ID-7024 GB CZ DE EST FR
Datasheets
W+ Centrifugal Pump ID-7017 GB CZ IT
Flyers
Pharmaceutical W+ Model GB
Manuals
W+ User Manual GB CN CR CZ DK DE ES FR FI HU IT NL NO PL PT RU SV
W+ User Manual - Pharma GB
W+ Spare Parts GB CN
W+ ATEX User Manual GB
95-03047 - Centrifugal Pump Cart Assembly US
