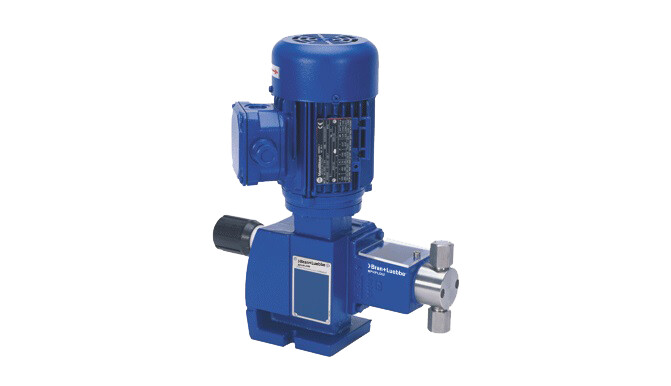

ProCam Plunger Metering Pumps

Product Type(s): Metering Pumps

Economical and reliable. The robust and compact design allows operation even under harsh environmental conditions.

ProCam Plunger Pump Overview

Reliable and Compact Design

Economical and sturdy, the ProCam pump ensures high operational security thanks to its robust design and compact footprint.

Key Performance Features

At a Glance

Cost-effective metering of non-hazardous fluids
Operating pressure up to 80 bar
Flow rates from 0.16 to ~60 l/h
Lost motion gear design for full-duty performance
Manual or electric linear stroke adjustment
Exceptional operational reliability

Mechanical Specifications

General Design

Cast iron gearbox housing
Built-in worm gear
Splash lubrication system
IEC-compliant electric motor (IP55 protection)

Standard Configuration

Single pump with plunger head
Manual stroke control
Fixed-speed electric motor
Pump head and valve housing made of stainless steel

Multiple pumps with up to 6 plunger pump heads are available
Can be combined with ProCam diaphragm metering pump
Electric stroke length adjustment (also with integrated controller)
Electric motor with variable speed
Hazardous area design (up to Zone 1, IIC, T4)
