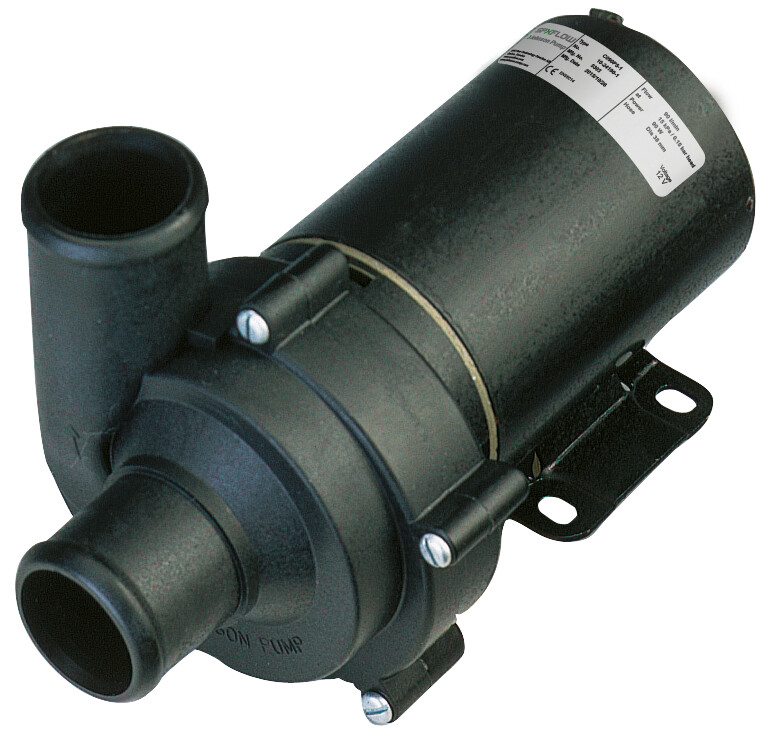

C0 Pumps Mechanical Seal with Brush Motor

C0 Pumps Mechanical Seal Circulation Pumps with Brush Motor

Heavy-duty mechanical seal circulation pumps feature brushed motors designed for continuous use. These centrifugal pumps are ideal for installation in recreational vehicles and buses for use as circulating pumps, such as for cooling fresh water and circulating water in heating systems. They are versatile, all-around pumps suitable for applications where self-priming is not essential.

Limited 2-Year Warranty

Johnson Pump C0 Pumps are normal-priming centrifugal pumps and should be mounted in a way that ensures they are always flooded or must be primed before being switched on. The pumps should not be used with seawater or other heavily soiled liquids.

NOTE: The pump must never be run dry.

CAUTION: Do not pump gasoline, solvents, thinners, highly concentrated or organic acids. If corrosive fluids must be handled, pump life will be prolonged by flushing with water after each use or at the end of each work day.

Material Specifications

Pump Body	P66, Thermoplastic
Impeller	P66, Thermoplastic
Shaft	Stainless Steel
Shaft Seal	Mechanical seal
Motor	12/24V DC enclosed (as per IP31) permanent magnet, ball bearing mounted motor, designed for continuous operation
Liquid	Water/glycol mixture; max. 60% glycol, fresh water

Technical Data

Liquid temp.	Min. -30°C Max. +100°C (Min. -22°F Max. 212°F)
System pressure	2.0 bar max (29 psi)
Port size	Ø 38 mm (1 1/2") hose

C090 Specifications

Part No.	Description	Capacity 0.1 bar (3.4 ftH2O)
10-24190-1	C090P5-1 12V	100 l/min at 0.1 bar (26.4 GPM)
10-24190-2	C090P5-1 24V	100 l/min at 0.1 bar (26.4 GPM)

See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV

Dimensions

Length	211 mm – 8.3"
Width	117 mm – 4.6"
Height	110 mm – 4.56" from baseplate (totally 116 mm – 4.8")
Weight	1.75 kg – 3.8 lbs
