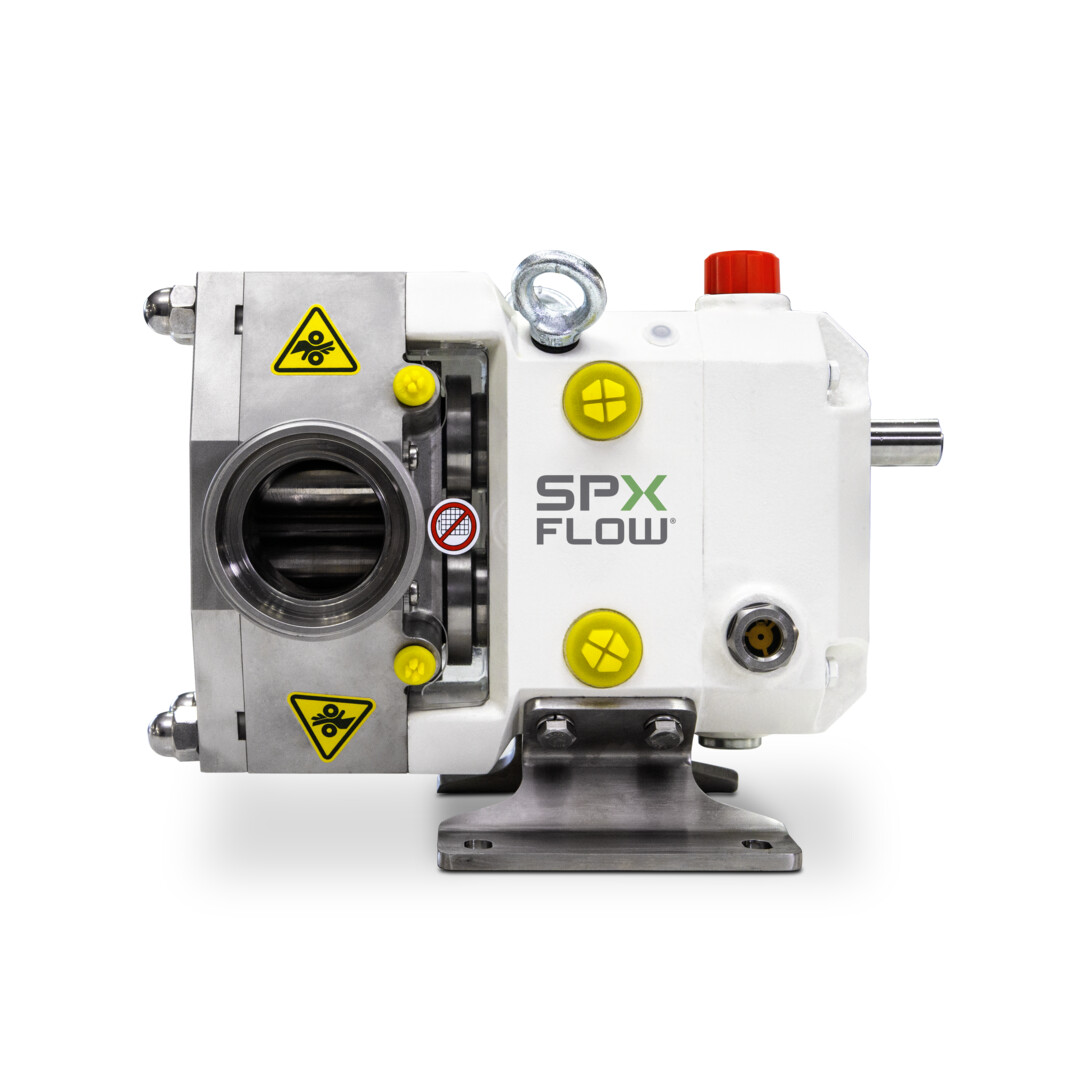

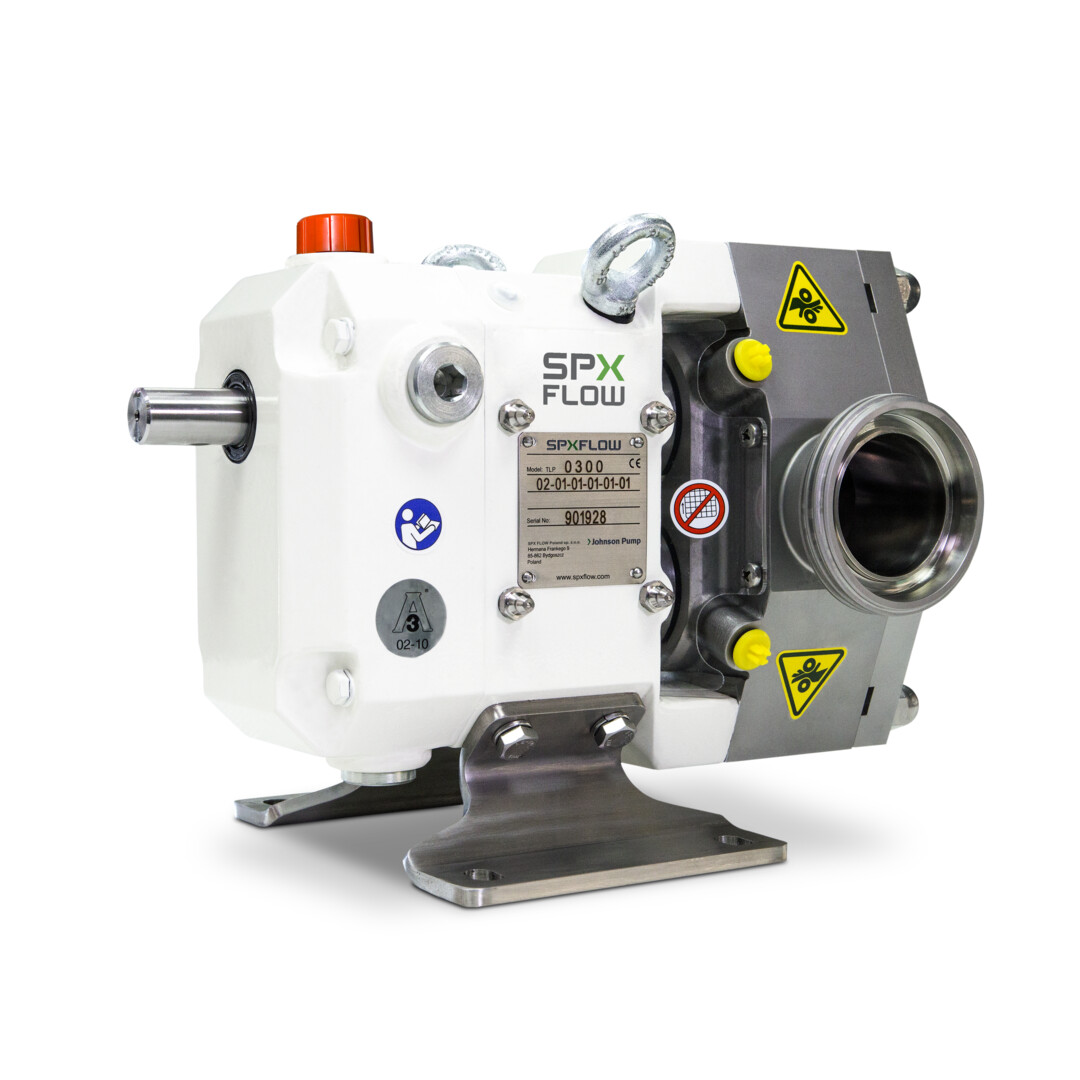

TopLobe Plus - Rotary Lobe Pump

Product Type:
Pumps / Rotary Lobe Pumps

Rotary Lobe Positive Displacement Pump with optimal efficiency

Features

Operational Features

  • Smooth flow
  • Gentle product handling
  • Dry running ability with double seal
  • Handles low and high viscosity products
  • Simple maintenance
  • Hygienic design
  • Low sound level
  • CIP capability standard
  • Free draining pump housing
  • Unique rotor attachment
  • Robust construction
  • Process flexibiltiy
  • Single mechanical seals standard. Optional double mechanical seals also available
  • Grease lubricated bearings for positive lubrication over speed, temperature
  • ATEX Certified
  • CE Certified

Installation Features

  • Bi-directional flow
  • Easy service and maintenance
  • Horizontal or vertical mounting
  • Easy to disassemble and reassemble
  • 316L stainless steel pump body and cover
  • Versatile 4-way mounting of gear case, including vertical alignment of ports

Product Benefits

  • Flushed double mechanical seals optionally to allow dry running
  • Very low shear, product not damaged during pumping
  • No internal rotor contact
  • Large fluid cavities can pump liquids with large solids
  • No cross-contamination of lubricating oil into product zone due to unique gear case design
  • Pumps are energy efficient and easily cleaned, maintained and repair

Limited Release. Please contact Sales for product availability in your region.

Specifications

Technical Data

Rotor case: Stainless steel 316L
Rotors: Stainless steel 316L
Max. capacity: 1371 l/min
Max. working pressure: 10 bar
Max. speed: 1 200 rpm



Model Displacement Nominal
Connection
Differential
Pressure
Rating
Maximum
Pump
Speed
Input
Shaft
Diameter
Maximum
Torque
Liter/Rev Size Bar RPM MM N/M
TLP0040 0.04 25 (1") 10 1200 19 108
TLP0100 0.10 25 (1") 10 900 19 108
TLP0140 0.14 38 (1.5") 10 900 19 108
TLP0230 0.23 38 (1.5") 10 900 19 108
TLP0300 0.30 50 (2") 10 900 19 108
TLP670 0.67 50 (2") 10 700 38 400
TLP940 0.94 75 (3") 10 700 38 400
TLP2290 2.29 100 (4") 10 600 55 1200
Dimensions

Metric Dimensions



TLP - Side View



TLP - Top View
Model A
(mm)
AO
(mm)
B
(mm)
CP
(mm)

D
(mm)

E
(mm)
F
(mm)
G
(mm)
TLP0040 175,5 230,5 130,0 281,4 149,6 72,8 100,0 10
TLP0100 175,5 230,5 130,0 286,8 149,6 72,8 100,0 10
TLP0140 175,5 230,5 130,0 298,7 149,6 72,8 100,0 10
TLP0230 175,5 230,5 130,0 299,1 149,6 72,8 100,0 10
TLP0300 175,5 230,5 130,0 311,1 149,6 72, 100,0 10
TLP0670 239,1 310,6 160,0 396,4 205,9 99,5 120,0 13
TLP0940 239,1 310,6 160,0 423,9 205,9 99,5 120,0 13
TLP2290 301,1 384,6 250,0 553,6 263,7 130,5 210,0 13



Model J
(mm)
K
(mm)
L
(mm)
N
(mm)
O
(mm)
R
(mm)
U
(mm)
X
(mm)
Z
(mm)
TLP0040 87.6 6X6 227,6 34.7 231,6 43,5 19 98,0 118,6
TLP0100 87,6 6X6 229,0 34,7 231,6 44,9 19 98,0 118,6
TLP0140 87,6 6X6 235,8 34,7 231,6 51,7 19 98,0 118,6
TLP0230 87,6 6X6 235,9 34,7 231,6 51,8 19 98,0 118,6
TLP0300 87,6 6X6 241.8 34,7 231,6 57,7 19 98,0 118,6
TLP0670 112,9 10X8 321,0 57,6 292,9 75,5 38 124,0 159,4
TLP0940 112,9 10x8 332,6 57,6 292,9 87,1 38 134,0 159,4
TLP2290 138,7 16x10 437,0 85,6 368,2 81,5 55 159,0 201,2
