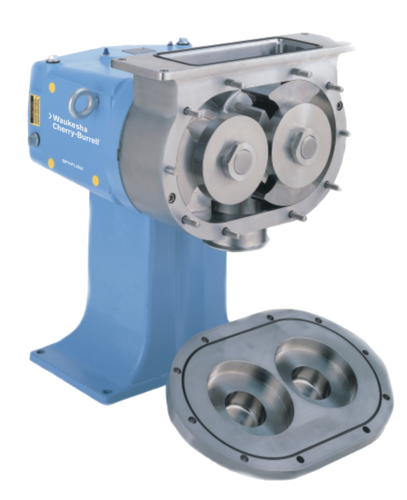

Universal 1 Series - Rectangular Flange - Positive Displacement Pumps

Product Type(s) : Positive Displacement Pumps
Description :

Specifically designed to pump "unpumpable" products, such as dough, meat emulsion, puddings and cheese, that cause bridging and cavitation in conventional pumps.
WHERE TO BUY

FEATURES

Specifically designed to pump "unpumpable" products; such as dough, meat emulsion, puddings and cheese, that cause bridging and cavitation in conventional pumps. Six models feature inlet ports ranging in size from 7.13 to 86.87 square inches. Benefits

  • 316 stainless steel body
  • Large, rectangular inlet port
  • Non-galling Waukesha "88" alloy rotors
  • Maximum pressure: 200 psi (13.8 bar)*
  • Temperature range:-40°F (-40°C) to 300°F (149°C)

* Contact Application Engineering for higher pressure or higher temperature applications.

Theory of Operation

Time-tested Waukesha Cherry-Burrell® rotary pump; circumferential-piston operating principle

In the Waukesha Cherry-Burrell design, arc-shaped "pistons” (rotor wings) travel in annular-shaped cylinders machined in the pump body; the resulting long sealing path reduces slippage and produces a smooth flow of product without destructive pulses or pressure peaks and without valves or complex parts.









FOR LOW VISCOSITY FLUIDS

Rotors, made of Waukesha “88” alloy, can be run with close clearance to the 316L stainless steel fluid head, without galling or seizing should inadvertent pressure surges cause contact. The close clearances combined with the rotor geometry, which gives a long sealing path between the pump inlet and outlet, means low slip operation. As a result, you achieve: high efficiency, good priming ability, metering capability and good flow control.









FOR HIGH VISCOSITY FLUIDS

The large fluid cavities of the rotors ... plus the large, easy entry anti-cavitation ports, allow efficient pumping of high viscosity fluids, slurries or even liquids with large chunks or
particles.









FOR NON-LUBRICATING AND ABRASIVE FLUIDS

The Waukesha Cherry-Burrell design has no bearings in the fluid being pumped, no sliding or rolling contact and no rotor-to-rotor contact. This produces EXCELLENT SERVICE LIFE even under severe operating conditions.

DIMENSIONS & SPECIFICATIONS

MODEL 014

0-800 RPM speed range. 1" discharge port; optional 1½" port size available; suitable to 200 PSI (13.8 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).



A
AA
AOL
B
CP
CP1
CP4
DL
E
F
H
I
J
L
U
X
2X
IN
6.75
1.95
12.50
4.13
12.04
13.47
15.25
8.88
.38
2.31
.41
7.66
2.12
9.61
.875
3.63
7.11
MM
171
50
318
105
306
342
387
226
10
59
10
195
54
244
22.23
92
181


C
CA
CB
CC
FA
FB
HA
PA
PB
PC
PD
IN
.50
1.62
6.50
.50
2.63
7.50
.41
1.44
4.94
.59
1.28
MM
13
41
165
13
67
191
10
37
125
15
33



CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are ¾"-14 NPT on Models 014-U1 to 034-U1, 1"-11-½ NPT on Models 064-U1 and 134-U1.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings.

Approximate shipping weight 70 lb. (32 kg.) pump only.

NOTES: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed. Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

Pump Curve 95-07146 - Rectangular Flange Model 014-U1 || PDF

MODEL 024

0-800 RPM speed range. 1" discharge port; optional 1½" port size available; suitable to 200 PSI (13.8 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).






A
AA
AOL
B
CP
CP1
CP4
DL
E
F
H
I
J
L
U
X
2X
IN
6.75
2.18
12.50
4.13
12.46
13.90
15.67
8.88
.38
2.31
.41
7.66
2.12
9.84
.875
3.63
7.11
MM
171
55
318
105
316
353
398
226
10
59
10
195
54
250
22.23
92
181


C
CA
CB
CC
FA
FB
HA
PA
PB
PC
PD
IN
.50
2.00
7.00
.50
3.00
8.00
.41
1.75
5.13
.63
1.44
MM
13
 51
178
13
 76 203
10
 44
130
15
37



CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are ¾"-14 NPT on Models 014-U1 to 034-U1, 1"-11-½ NPT on Models 064-U1 and 134-U1.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings.

Approximate shipping weight 75 lb. (34 kg.) pump only.

NOTES: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed. Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

Pump Curve 95-07147 - Rectangular Flange Model 024-U1 || PDF

MODEL 034

0-800 RPM speed range. 1" discharge port; optional 1½" port size available; suitable to 200 PSI (13.8 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).






A
AA
AOL
B
CP
CP1
CP4
DL
E
F
H
I
J
L
U
X
2X
IN
8.00
2.88
12.75
4.25
14.58
16.42
17.67
8.88
.38
3.00
.44
8.49
2.62
11.36
1.250
3.88
8.12
MM
203
73
324
108
370
417
449
226
10
76
11
216
67
289
31.75
99
206




C
CA
CB
CC
FA
FB
HA
PA
PB
PC
PD
IN
.62
1.88
10.75
.62
3.12
12.00
.53
1081
6.84
.66
2.58
MM
16
48
273
16
79
305
13
46
174
17
66



CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are ¾"-14 NPT on Models 014-U1 to 034-U1, 1"-11-½ NPT on Models 064-U1 and 134-U1.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings.

Approximate shipping weight 140 lb. (64 kg.) pump only.

NOTES: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed. Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

Pump Curve 95-07148 - Rectangular Flange Model 034-U1 || PDF

MODEL 064

0-800 RPM speed range. 1" discharge port; optional 1½" port size available; suitable to 200 PSI (13.8 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).






A
AA
AOL
B
CP
CP1
CP4
DL
E
F
H
I
J
L
U
X
2X
IN
11.75
4.35
13.94
7.00
18.91
20.69
22.07
9.00
.50
5.50
.56
10.77
3.50
15.16
1.625
4.94
10.31
MM
298
110
354
178
480
526
561
229
13
140
14
274
89
385
41.28
125
262




C
CA
CB
CC
FA
FB
HA
PA
PB
PC
PD
IN
.50
4.00
12.20
.52
5.00
13.23
.53
2.44
9.00
1.28
2.11
MM
13
102
310
13
127
336
13
62
229
33
54



CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are ¾"-14 NPT on Models 014-U1 to 034-U1, 1"-11-½ NPT on Models 064-U1 and 134-U1.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings.

Approximate shipping weight 297 lb. (135 kg.) pump only.

NOTES: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed. Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

Pump Curve 95-07149 - Rectangular Flange Model 064-U1 ||PDF





MODEL 134

0-800 RPM speed range. 1" discharge port; optional 1½" port size available; suitable to 200 PSI (13.8 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).






A
AA
AOL
B
CP
CP1
CP4
DL
E
F
H
I
J
L
U
X
2X
IN
11.75
5.00
13.94
7.00
19.85
21.63
23.01
9.00
.50
5.50
.56
10.77
3.50
15.78
1.625
4.94
10.31
MM
298
127
354
178
504
549
584
229
13
140
14
274
89
401
41.28
125
262




C
CA
CB
CC
FA
FB
HA
PA
PB
PC
PD
IN
.78
3.00
14.00
.63
4.55
15.25
.53
3.19
9.38
.68
2.94
MM
20
76
356
16
116
387
13
81
238
17
75



CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are ¾"-14 NPT on Models 014-U1 to 034-U1, 1"-11-½ NPT on Models 064-U1 and 134-U1.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings.

Approximate shipping weight 317 lb. (144 kg.) pump only.

NOTES: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed. Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

Pump Curve 95-07150 - Rectangular Flange Model 134-U1 || PDF



MODEL 224

0-800 RPM speed range. 1" discharge port; optional 1½" port size available; suitable to 200 PSI (13.8 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).






A
AA
AOL
B
CP
CP1
CP4
DL
E
F
H
I
J
L
U
X
2X
IN
15.00
4.75
19.75
9.50
23.37
-
27.87
13.50
.63
8.25
.56
13.74
4.50
18.49
2.00
6.25
12.87
MM
381
121
502
241
594
-
708
343
16
210
14
349
114
470
50.80
159
327




C
CA
CB
CC
FA
FB
HA
PA
PB
PC
PD
IN
.63
4.37
16.75
.63
5.62
18.00
.53
4.06
11.25
.78
3.38
MM
16
111
425
16
143
457
13
103
286
20
86



CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are ¾"-14 NPT on Models 014-U1 to 034-U1, 1"-11-½ NPT on Models 064-U1 and 134-U1.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings.

Approximate shipping weight 580 lb. (263 kg.) pump only.

NOTES: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed. Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

Pump Curve 95-07151 - Rectangular Flange Model 224-U1 || PDF

MODEL 324

0-800 RPM speed range. 1½" discharge port; optional 1½" port size available; suitable to 200 PSI (13.8 bar) differential pressure. Temperature range -40°F (-40°C) to 300°F (149°C).






A
AA
AOL
B
CP
CP1
CP4
DL
E
F
H
I
J
L
U
X
2X
IN
18.00
6.56
36.00
12.00
30.17
-
-
27.13
.75
9.50
.69
16.86
5.06
23.42
2.375
8.87
17.88
MM
457
167
914
305
766
-
708
689
19
241
18
137
129
595
60.33
225
454




C
CA
CB
CC
FA
FB
HA
PA
PB
PC
PD
IN
.63
8.25
18.50
.69
9.50
19.88
.66
5.00
17.38
2.25
1.25
MM
16
210
470
18
241
505
17
127
441
57
32



CP= Standard Cover, CP1= Jacketed Cover, CP4= Manual Vented Cover, Connection sizes for Jacketed Covers are ¾"-14 NPT on Models 014-U1 to 034-U1, 1"-11-½ NPT on Models 064-U1 and 134-U1.

Dimension 'X' and '2X' apply for Bevel Seat, "S"-Clamp, "Q"-Clamp, 15I and 14I fittings.

Approximate shipping weight 918 lb. (416 kg.) pump only.

NOTES: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed. Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

Pump Curve 95-07152 - Rectangular Flange Model 324-U1 || PDF

OPTIONS & PERFORMANCE

Body Standard:  316L Stainless Steel Options:

  • Flush taps for future double seals
  • Body retaining screws

Ports Standard:  S-Line Options:

  • Bevel Seat, I-Line, Q-Line; European DIN, SMS or RJT
  • Male NPT, 150 lb. & 300 lb. Flanges. (150 lb. standard on Model 320)
  • Rectangular Flange Inlet or Aseptic ports
  • Extended ports
  • Optional port sizes on 6, 18, 30 and 60 Models

Covers Standard:  316L SS plain cover with 3-Wing cover nuts Options:

  • Vent or drain connections
  • Aseptic, jacketed or vented
  • Hex cover nuts

Rotors Standard:  Alloy 88 Twin Wing. Standard clearance for up to 180° F (82° C) Options:

  • Hot clearance to 300° F (149° C)
  • Clearance above 300° F (149° C) on application
  • Special & front face clearances and slotted rotor hub for special applications
  • Single wing for 30, 60, 130 and 220 models for minimal particulate damage

O-Rings Standard: Buna-N Options:

  • Fluoroelastomer (FKM)
  • EPDM
  • Silicone
  • Perfluoroelastomer (FFKM)
  • FEP Encapsulates

Seals Standard: Single Buna-N O-Rings with Zirconia sleeve Options:

  • 316L SS sleeve
  • Double O-Ring Seal with Flush Connection
  • Single Mechanical Seal with Carbon (One Piece) vs. Ceramic Seal Faces
  • Double Mechanical Seal with outer Carbon Seal Face & Flush Connections
  • Chrome Oxide, Silicon Carbide, & Tungsten Carbide Seal Faces
  • Two piece carbon inner seal

Gearcase Standard: Cast iron powder coated, 316L SS shafts, top shaft position, stainless Steel bearing retainers, left hand shaft position Options:

  • Stainless Steel gearcase
  • Steel-It paint
  • 17-4 PH shafts
  • Lower shaft position
  • Bearing Isolators
  • Pedestal shims for side mounted pumps. Left hand shaft position standard
  • Right hand shaft position on side mounted gearcase

Bases Standard: Flat plate, epoxy painted, with adjustable feet, SS coupling guard, and Lovejoy or Woods coupling Options:

  • 304 SS unpolished plate base with adjustable feet
  • Portable base with rubber wheels
  • SS tubular bases

Drives

  • WCB ISR Integral Speed Reducer Sizes 49, 79 and 239.
  • Direct connected gear motors.

Tru-Fit® Close coupled Tru-Fit® pump mounted on stainless steel base with stainless steel adaptors standard. Features:

  • No shaft alignment necessary. No coupling guard required.
  • Special base design enhances cleanability.
  • Reduces overall length of complete unit by an average of 20-25%.
  • Average of 20-25 gear ratios available per horsepower.
  • Separate oil sump for gear reducer and timing gears.

Options:

  • 304 SS polished plate base.
  • NEMA or IEC frames available. Right angle reducer also available for additional space savings.
  • 1/2 through 60 horsepower drive options available.
  • Horizontal or vertical porting.

Click on the links below to download pump model performance curves for Universal 1 Series Rectangular Flange Positive Displacement pumps.

Download Instructions for Reading Positive Displacement Pump Curves || PDF
  • Universal 1 Series Rectangular Flange - Model 014 - Performance Curve - 95-07146 || PDF
  • Universal 1 Series Rectangular Flange - Model 024 - Performance Curve - 95-07147 || PDF
  • Universal 1 Series Rectangular Flange - Model 034 - Performance Curve - 95-07148 || PDF
  • Universal 1 Series Rectangular Flange - Model 064 - Performance Curve - 95-07149 || PDF
  • Universal 1 Series Rectangular Flange - Model 134 - Performance Curve - 95-07150 || PDF
  • Universal 1 Series Rectangular Flange - Model 224 - Performance Curve - 95-07151 || PDF
  • Universal 1 Series Rectangular Flange - Model 324 - Performance Curve - 95-07152 || PDF

Downloads

}
