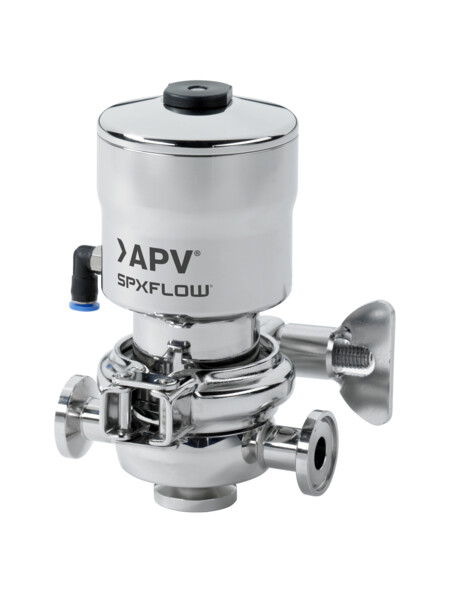

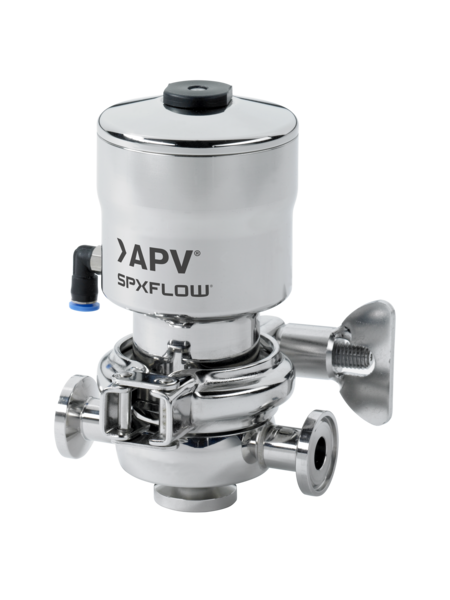

AP1 - Aseptic Diaphragm Valves

Aseptic diaphragm fractional size valve.

SPX FLOW AP1 Diaphragm Valve Series

Product Safety and Aseptic Performance

The AP1 valve range is engineered for aseptic applications, ensuring product protection through hermetic separation of the chamber and atmosphere via a flexible diaphragm shaft. Designed to isolate line sections or aseptic tanks.

Key Advantages

Material Options and Finish

Econo: 1.4404 stainless steel, Ra < 0.8 µm
Techno: 1.4435 stainless steel, Ra < 0.5 µm, includes 3.1 certificate

Compliance and Performance Features

FDA-approved TFM/PTFE diaphragm for broad chemical compatibility
Flat diaphragm design improves flow, reduces pressure drop, and minimizes CIP consumption
Certified 3-A sanitary design for hygienic processing

Available Valve Configurations

Size Range and Options

Available sizes include DN10, DN15, DN20, and ½″. Optional configurations include:

Tank outlet version
Three electrical valve position feedback systems
