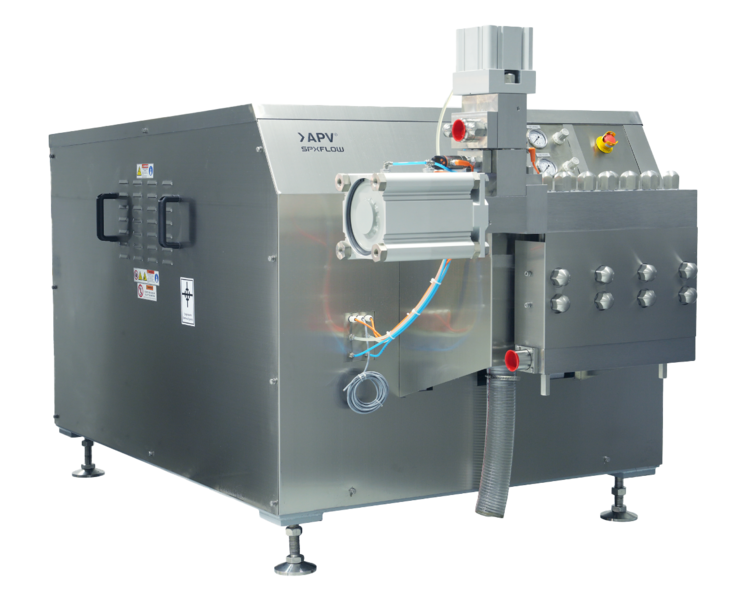

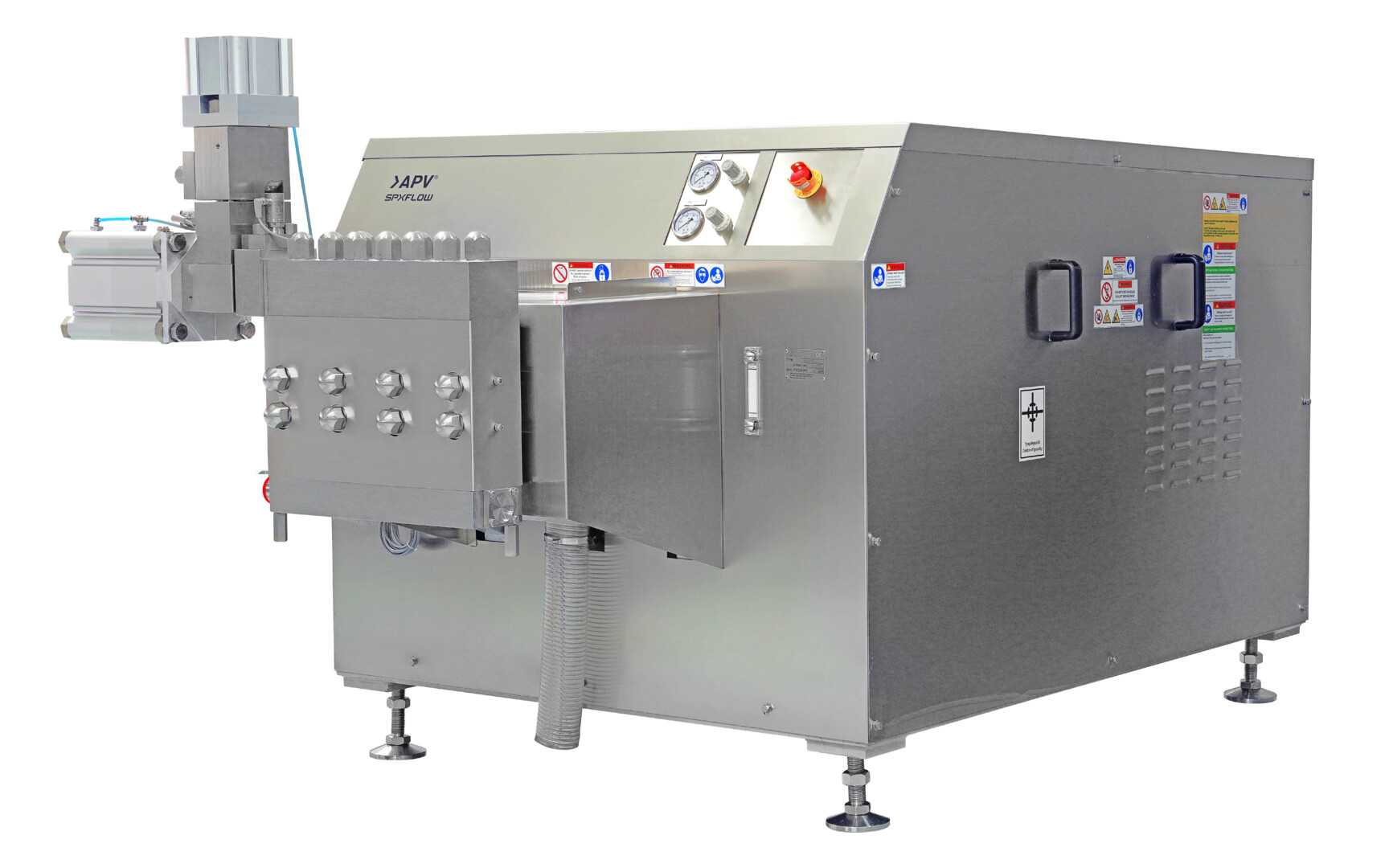

APV® EQ 75T Homogenizer

Product Features

APV homogenizers have been a global standard of quality for more than 125 years. And now we have extended the EQ range for to provide more models for processors who want quality at an affordable price. The new EQ 75T can be configured as a pump, single- or two-stage homogenizer and comes with all the features you need for reliable performance. The EQ 75T features a 3-part liquid end made from Duplex stainless steel, high-efficiency hard-wearing pump valves and homogenizing valves. The EQ 75T is designed for cleaning in place (CIP) and is fitted with FDA, EN1935:2004 and GB4806 product contact materials as standard.

Key Benefits

Puts you in control

• Manual or automatic control to match your process
• Wide range of options
• Seamless integration with your existing processes
• Automatic water and air isolation valves included as standard

Performance You Can Trust

• Robust APV homogenizer construction
• Proven components for consistent and dependable operation
• Materials and options matched to dairy and beverage requirements

Peace of Mind

• Designed for long operating life
• All service areas are easy to access
• Supported by SPX FLOW’s global aftermarket network

Standard Features

Built-In Components

• 3-part liquid end in Duplex Stainless stell
• Ball type pump valves and seats in stellite material
• Manual pneumatic control
• Integrated over-pressure monitoring
• Oil level indicator
• Stainless steel plungers
• Stainless steel cladding
• Automatic air and water isolation valves
• Weld connection
• EPDM Elastomers

Product Applications

The EQ homogenizer range is specifically designed for low and medium pressure applications in the dairy and beverage sectors. Examples include:

• Dairy products such as milk, yogurt, cream and flavored milk
• Beverage products such as fruit juice and fruit nectar

Theory of Operation

The homogenization process is used to enhance product characteristics, add value and/or lower costs. It is a physical process that mixes immiscible liquids into an emulsion. The homogenizer is a positive displacement pump to which a homogenizing valve is attached. The fluids entering the homogenizer are forced through a small gap at high pressure. This causes a rapid increase in velocity and decrease in pressure creating turbulence and pressure differences that cause disruption and dispersion of the particles.
