Flex-Mix Dynamic Mixer

Product Type(s): Mixers & Agitators

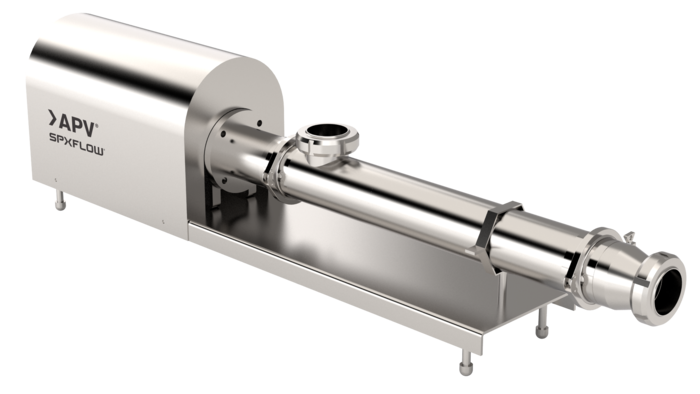

APV Flex-Mix Dynamic Mixer for Hygienic Inline Stirred Yogurt & Fresh Cheese Mixing

The APV Dynamic Mixer from SPX FLOW is a hygienic, inline mixing solution engineered specifically for stirred yogurt and fresh cheese (fromage frais) production. Designed to deliver fast, gentle, and uniform mixing, it preserves delicate dairy textures while ensuring consistent product quality. With compact design, short residence times, and flexible horizontal or vertical installation, the APV Dynamic Mixer optimizes efficiency, reduces energy use, and minimizes product waste—making it ideal for modern dairy processors seeking reliable, scalable, and cost-effective mixing performance.
WHERE TO BUY GET PRICING GET PARTS GET SERVICE
  • Capacity: 100–6,000 l/h
  • Viscosity Range: 200–5,000 cP
  • Residence Time: up to 10 seconds
  • Max. Operating Pressure: 10 barg @ 20°C / 8 barg @ 95°C
  • Motor: 0.75 kW with reducer (VSD compatible)
  • Seal options: EPDM or FPM
  • Connection types: SMS or Clamp fittings
  • Versions available for yogurt or fresh cheese
Type Length
mm		 Width
mm		 Height
mm		 Weight
kg		 Max. Flow Rate
Yogurt (Y) m³/h		 Max. Flow Rate
Fresh Cheese (F) m³/h		 Recommended CIP
Flow Rate m³/h		 Type and Diameters
of Connectors
2"/650 1303 253 430 52 0.7 0.5 13 SMS Ø51
3"/650 1303 253 430 52 1.2 0.8 13 SMS Ø51
4"/800 1454 253 430 55 2.4 1.7 30 SMS Ø76
4"/1400 2054 253 430 70 4.4 3.1 30 SMS Ø76
4"/1600 2254 253 430 76 5.1 3.6 30 SMS Ø76
5"/1400 2054 253 430 76 6.6 4.6 30 SMS Ø76

Type: Diameter in inches / body length in mm

By providing rapid and uniform mixing, the APV Dynamic Mixer ensures that all ingredients are thoroughly integrated, resulting in consistent texture and flavor in the final product.

Yes, its flexible design allows for both horizontal and vertical installations, making it adaptable to various plant configurations.

The use of standardized SPX FLOW W+ centrifugal pump parts simplifies maintenance, reduces downtime, and lowers spare parts inventory requirements.

Absolutely. With a capacity range starting at 100 liters per hour, it's ideal for both small and large-scale operations.

The mixer’s design ensures gentle yet effective mixing, preserving the structural integrity and sensory qualities of delicate dairy products.
