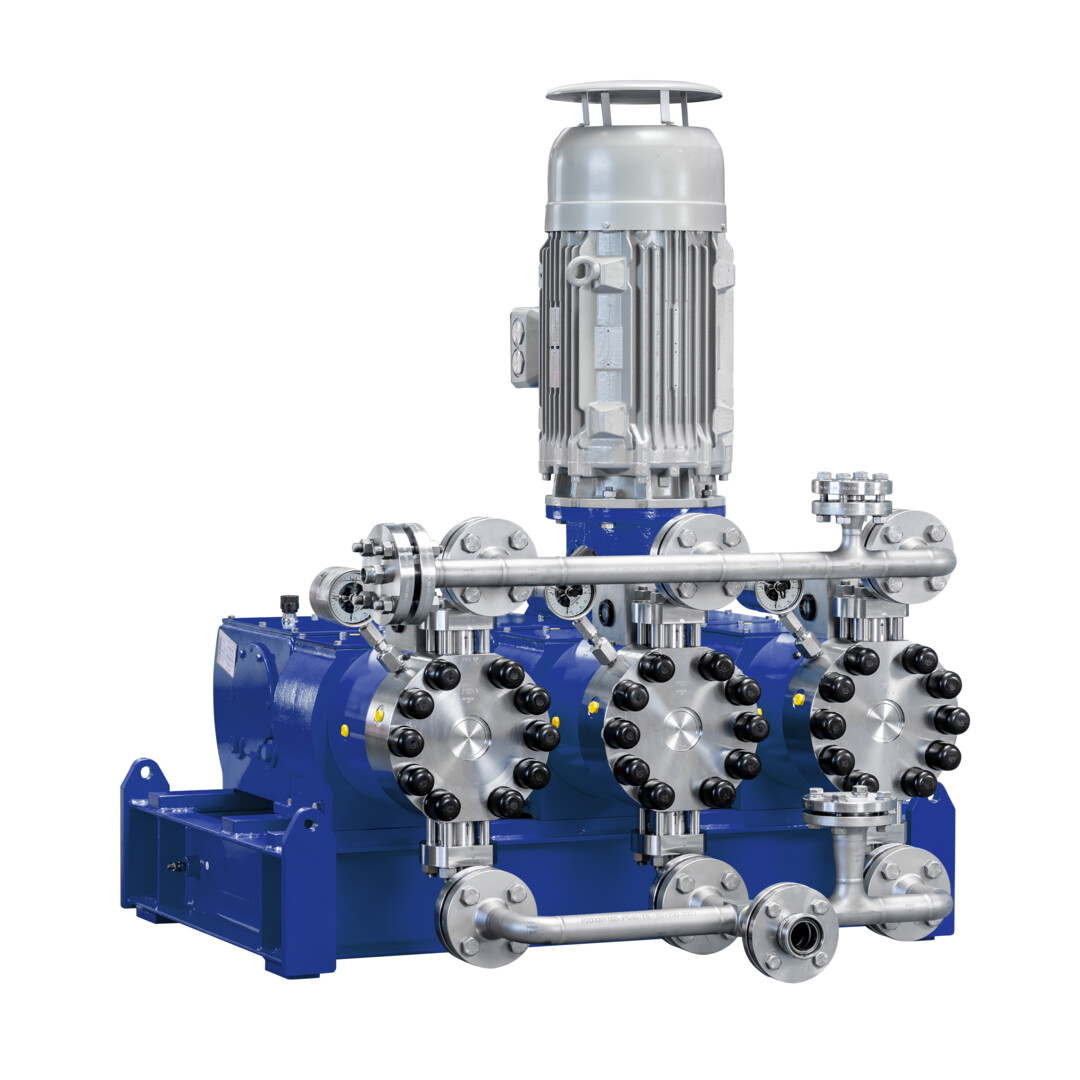

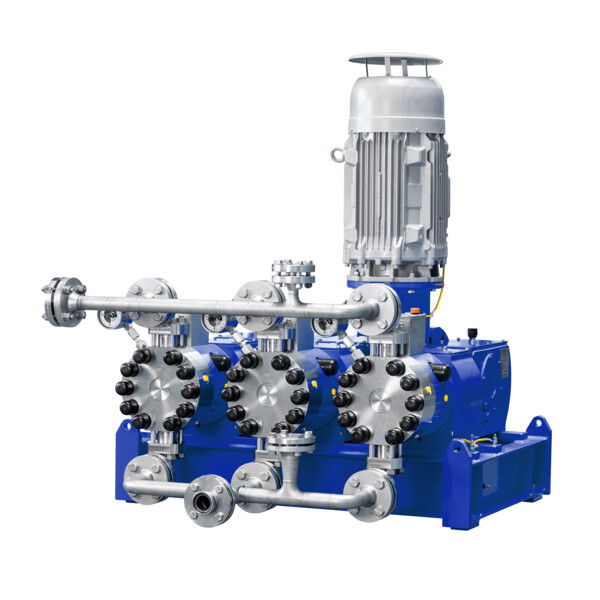

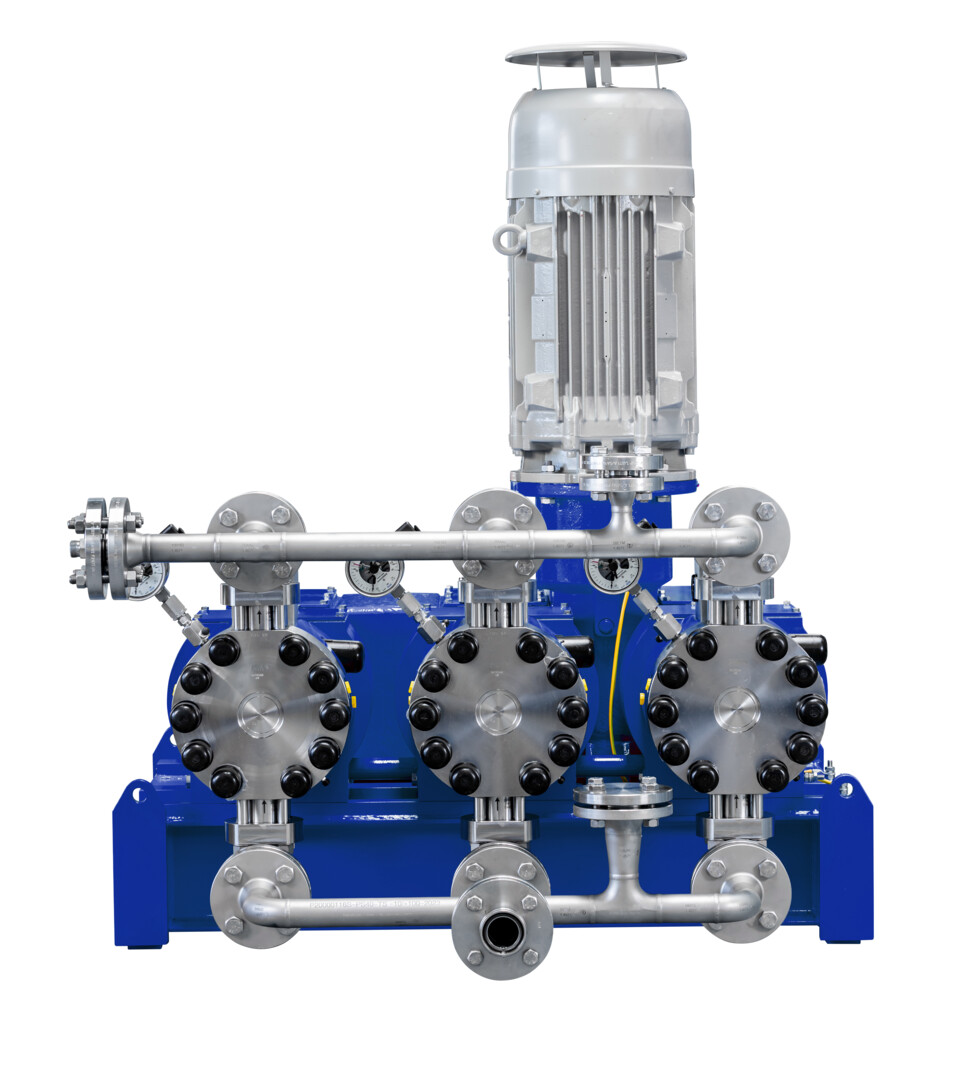

NOVAPLEX Integral Process Diaphragm Pumps

The Bran+Luebbe NOVAPLEX Integral is a flexible high performance process diaphragm pump for high flow rates and operating pressures.

Features & Benefits
Downloads

NOVAPLEX Integral Process Pumps

Overview

NOVAPLEX Integral pumps are powerful process diaphragm pumps designed for demanding high-pressure applications where standard metering pump capabilities fall short.

Key Features

Diaphragm and Pump Head Design

Double diaphragm pumpheads with:
- Positive diaphragm position control
- Built-in pressure relief valve
- Diaphragm failure indication

Crank Gear System

Integrated lubrication system
Anti-friction bearings

Structural and Operational Advantages

Modular concept
Integrated gear reducer
Minimized footprint
Compact design

Reasons to Choose NOVAPLEX Integral

Performance and Efficiency

Excellent emission control
High reliability under critical conditions
Quiet operation via 4- or 6-pole motors
Reduced life cycle cost

Key Applications

NOVAPLEX Vector Pumps are ideal for toxic or chemically aggressive liquids and for slurries/suspensions with particle sizes up to 100 µm.

Fluids pumped (Examples)

Ammonia
Butane
Hydrocarbon Condensate
Latex emulsion
Liquified CO2
LPG (Liquified Petroleum Gas)
Methanol
Glycol
Naphtha
Raney Nickel Suspension
Sulphuric Acid
Toluene
Enhanced Oil Recovery (EOR) - Polymer
Water

Pumped Duties (Examples)

Reactor feed pump
High pressure injection pump
Transfer pump
Re-circulation pump
