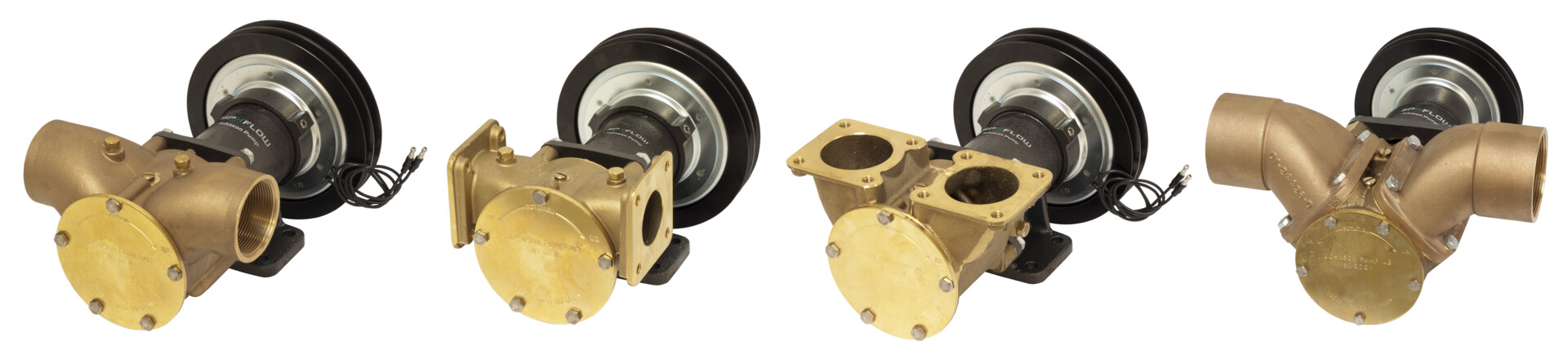

Extra Heavy-Duty Electromagnetic Clutch Pumps - FB-5000
Product Type(s) : Flexible Impeller Pumps
Description :
WHERE TO BUY
With an Electro-Magnetic Clutch you will have pumping power whenever needed, at a push of a button, without being at the pump. Combined with a vacuum switch (recommended for bilge pump application), the clutch will automatically disengage whenever the pump starts priming air, thereby preventing dry running and pump damage.
Product Specifications
Material Specifications
| Pump body | Bronze (Connection for vacuum switch) |
| Shaft | Stainless steel The shaft is mounted with permanently lubricated double ball bearings |
| Seal | Mechanical seal |
| Cam | Full or reduced |
| Clutch | Electro-Magnetic 12/24V DC |
| Pulley | 2xA or 1xB-groove |
| Pulley Diameter | 178 mm / 7" |
Extra Heavy Duty Electro-Magnetic Clutch Pumps - FB-5000
Technical Data
| Part No. | Description | Part No. USA | Description USA | Impeller | Connection | Length | Width | Height | Weight | |
| 10-24116-99 | F7B-5000 | 10-24116-98 | F7B-5007 | 09-1028B | 1" NPT | 226 mm – 8.9" | 120 mm – 4.72" | 93 mm – 3.66" | 6.9 kg – 15 lbs | |
| 10-13025-99 | F8B-5000 VF | 10-13025-99 | F8B-5000 VF | 09-819B-00 | Port Adaptor Kit | 265 mm – 10.43" | 152 mm – 5.98" | 154 mm – 6" | 11.9 kg – 26 lbs | |
| 10-13176-99 | F8B-5000 TSS | 10-13176-99 | F8B-5000 TSS | 09-819B-00 | Port Adaptor Kit | 265 mm – 10.43" | 198 mm – 7.79" | 151 mm – 5.94" | 11.9 kg – 26 lbs | |
| 10-13027-99 | F9B-5600 | 10-13027-98 | F9B-5607 | 09-802B 09-814B** |
2" NPT | 290 mm – 11.42" | 192 mm – 7.56" | 157 mm – 6.18" | 13.2 kg – 29 lbs | |
| 10-13226-99 | F9B-5600 VF | 10-13226-99 | F9B-5600 VF | 09-802B 09-814B** |
Port Adaptor Kit | 290 mm – 11.4" | 152 mm – 5.98" | 175 mm – 6.88" | 13.2 kg – 27 lbs | |
| 10-13178-99 | F9B-5600 TSS | 10-13178-99 | F9B-5600 TSS | 09-802B 09-814B** |
Port Adaptor Kit | 290 mm – 11.4" | 200 mm – 7.87" | 151 mm – 5.94" | 13.2 kg – 27 lbs | |
| **Pump with alternative impeller available on request | ||||||||||
Extra Heavy Duty, High Flow Electro-Magnetic Clutch Pumps - FB-5000
Technical Data
| Part No. | Description | Part No. USA | Description USA | Impeller | Connection | Length | Width | Height | Weight |
| 10-13143-99 | F95B-5000 | 10-13143-98 | F95B-5007 | 09-820B | 2½" NPT | 358 mm | 246/295 mm | 226/201 mm | 21 kg – 46 lbs |
| 14.09" | 9.68"/11.61" | 8.89"/7.91" |
Clutch to be ordered separately! See Flexible Impeller Multi-Purpose Pumps Accessories
See this product in the Johnson Pump Marine Catalog: US ‖ GB ‖ DE ‖ ES ‖ FI ‖ SV
Bronze Impeller Pump Performance Tables
Note! Reduced cam - 30-40% lower capacity
Impeller of nitrile - adjust total head approx. 30% down
| F35B | 700 rpm | 900 rpm | 1400 rpm | 1750 rpm | 2000 rpm | 2500 rpm | ||||||||||||||
| Bar | kPa | ft | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM |
| 0.3 | 30 | 10.1 | 0.06 | 5.2 | 1.4 | 0.09 | 6.8 | 1.8 | 0.13 | 11.2 | 3.0 | 0.16 | 14.0 | 3.7 | 0.18 | 16.0 | 4.2 | 0.18 | 20.5 | 5.4 |
| 0.6 | 60 | 20.1 | 0.09 | 4.6 | 1.2 | 0.09 | 6.2 | 1.6 | 0.13 | 10.6 | 2.8 | 0.16 | 13.7 | 3.6 | 0.18 | 15.8 | 4.1 | 0.18 | 19.6 | 5.2 |
| 1.0 | 100 | 33.5 | 0.09 | 4.0 | 1.1 | 0.09 | 5.6 | 1.5 | 0.18 | 9.2 | 2.4 | 0.18 | 11.8 | 3.1 | 0.18 | 13.6 | 3.6 | 0.18 | 17.0 | 4.5 |
| F4B | 700 rpm | 900 rpm | 1400 rpm | 1750 rpm | 2000 rpm | 2500 rpm | ||||||||||||||
| Bar | kPa | ft | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM |
| 0.3 | 30 | 10.1 | 0.06 | 12.0 | 3.2 | 0.09 | 15.0 | 4.0 | 0.13 | 23.0 | 6.0 | 0.17 | 27.0 | 7.1 | 0.18 | 30.5 | 8.1 | 0.18 | 34.5 | 9.1 |
| 0.6 | 60 | 20.1 | 0.09 | 11.0 | 2.9 | 0.09 | 14.0 | 3.7 | 0.13 | 21.0 | 5.4 | 0.17 | 25.0 | 6.6 | 0.18 | 28.0 | 7.4 | 0.18 | 33.0 | 8.7 |
| 1.0 | 100 | 33.5 | 0.09 | 9.0 | 2.4 | 0.09 | 11.0 | 2.9 | 0.18 | 18.0 | 4.8 | 0.18 | 22.0 | 5.8 | 0.18 | 25.0 | 6.6 | 0.18 | 29.5 | 7.8 |
| 1.5 | 150 | 50.3 | 0.09 | 4.5 | 1.2 | 0.09 | 7.0 | 1.8 | 0.18 | 13.5 | 3.6 | 0.18 | 17.0 | 4.5 | 0.18 | 20.0 | 5.3 | 0.2 | 25.0 | 6.6 |
| F5B | 700 rpm | 900 rpm | 1400 rpm | 1750 rpm | 2000 rpm | ||||||||||||
| Bar | kPa | ft | kW | l/min | GPM | kW | l/min | GPM | kW | l/min | GPM | kW | l/min | GPM | kW | l/min | GPM |
| 0.3 | 30 | 10.1 | 0.13 | 16.0 | 4.2 | 0.18 | 21.0 | 5.5 | 0.37 | 33.0 | 8.7 | 0.37 | 41.0 | 10.8 | 0.37 | 46.0 | 12.2 |
| 0.6 | 60 | 20.1 | 0.13 | 15.0 | 4.0 | 0.18 | 20.0 | 5.3 | 0.37 | 32.0 | 8.5 | 0.37 | 39.5 | 10.4 | 0.37 | 45.0 | 11.9 |
| 1.0 | 100 | 33.5 | 0.13 | 14.0 | 3.7 | 0.18 | 19.0 | 5.0 | 0.37 | 30.0 | 7.9 | 0.37 | 37.0 | 9.8 | 0.37 | 42.0 | 11.1 |
| 1.5 | 150 | 50.3 | 0.13 | 13.0 | 3.4 | 0.18 | 17.0 | 4.5 | 0.37 | 27.0 | 7.1 | 0.37 | 33.5 | 8.9 | 0.37 | 38.0 | 10.0 |
| 2.0 | 200 | 67.1 | - | - | - | - | - | - | 0.37 | 22.0 | 5.8 | 0.37 | 28.5 | 7.5 | 0.37 | 33.0 | 8.07 |
| F7B | 700 rpm | 900 rpm | 1400 rpm | 1750 rpm | 2000 rpm | ||||||||||||
| Bar | kPa | ft | kW | l/min | GPM | kW | l/min | GPM | kW | l/min | GPM | kW | l/min | GPM | kW | l/min | GPM |
| 0.3 | 30 | 10.1 | 0.37 | 36.0 | 9.5 | 0.37 | 46.0 | 12.2 | 0.75 | 74.0 | 19.6 | 0.75 | 98.0 | 25.9 | 0.75 | 107.0 | 28.3 |
| 0.6 | 60 | 20.1 | 0.37 | 34.0 | 9.0 | 0.37 | 44.0 | 11.6 | 0.75 | 72.0 | 19.0 | 0.75 | 96.0 | 25.4 | 0.75 | 104.0 | 27.5 |
| 1.0 | 100 | 33.5 | 0.37 | 29.0 | 7.7 | 0.37 | 40.0 | 10.6 | 0.75 | 67.0 | 17.7 | 0.75 | 87.0 | 23.0 | 0.75 | 98.0 | 25.9 |
| 1.8 | 180 | 60.4 | 0.37 | 21.0 | 5.5 | 0.37 | 30.0 | 7.9 | 0.75 | 57.0 | 15.1 | 0.75 | 73.0 | 19.3 | 0.75 | 84.0 | 22.2 |
| 2.5 | 250 | 83.8 | - | - | - | - | - | - | 0.75 | 37.0 | 9.8 | 1.1 | 52.0 | 13.7 | 1.1 | 63.0 | 16.6 |
| F8B | 700 rpm | 900 rpm | 1400 rpm | 1750 rpm | 2000 rpm | ||||||||||||
| Bar | kPa | ft | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM |
| 0.3 | 30 | 10.1 | 0.37 | 87.0 | 23.0 | 0.75 | 114.0 | 30.1 | 1.1 | 188.0 | 50.0 | 1.5 | 241.0 | 63.7 | 1.5 | 279.0 | 73.7 |
| 0.6 | 60 | 20.1 | 0.37 | 80.0 | 21.1 | 0.75 | 107.0 | 28.3 | 1.1 | 180.0 | 47.6 | 1.5 | 233.0 | 61.6 | 1.5 | 270.0 | 71.3 |
| 1.0 | 100 | 33.5 | 0.37 | 73.0 | 19.3 | 0.75 | 101.0 | 26.7 | 1.1 | 177.0 | 46.8 | 1.5 | 228.0 | 60.2 | 1.5 | 264.0 | 69.7 |
| 1.8 | 180 | 60.4 | - | - | - | 1.1 | 70.0 | 18.5 | 1.1 | 148.0 | 39.1 | 2.2 | 203.0 | 53.6 | 2.2 | 242.0 | 63.4 |
| 2.5 | 250 | 83.8 | - | - | - | - | - | - | 1.1 | 108.0 | 28.5 | 2.2 | 166.0 | 43.9 | 2.2 | 208.0 | 55.0 |
| F9B-5000 | 700 rpm | 900 rpm | 1400 rpm | 1750 rpm | 2000 rpm | ||||||||||||
| Bar | kPa | ft | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM |
| 0.3 | 30 | 10.1 | 0.75 | 129.0 | 34.1 | 0.75 | 170.0 | 44.9 | 1.5 | 268.0 | 70.8 | 1.5 | 331.0 | 87.5 | 2.2 | 388.8 | 102.7 |
| 0.6 | 60 | 20.1 | 0.75 | 124.0 | 32.8 | 0.75 | 161.0 | 42.5 | 1.5 | 260.0 | 68.9 | 2.2 | 323.0 | 85.3 | 2.2 | 383.1 | 101.2 |
| 1.0 | 100 | 33.5 | 0.75 | 118.8 | 31.4 | 1.1 | 156.0 | 41.2 | 1.5 | 255.6 | 67.5 | 2.2 | 315.2 | 83.3 | 3.0 | 379.2 | 100.2 |
| 1.8 | 180 | 60.4 | 1.1 | 105.0 | 27.7 | 1.1 | 140.0 | 37.0 | 1.5 | 235.0 | 62.1 | 2.2 | 286.1 | 75.6 | 3.0 | 351.3 | 92.8 |
| 2.5 | 250 | 83.8 | 1.1 | 83.7 | 22.1 | 1.5 | 102.0 | 26.9 | 2.2 | 208.0 | 55.2 | 3.0 | 266.0 | 70.3 | 3.0 | 304.1 | 80.3 |
| F9B-5600 | 700 rpm | 900 rpm | 1400 rpm | 1750 rpm | 2000 rpm | ||||||||||||
| Bar | kPa | ft | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM |
| 0.3 | 30 | 10.1 | 0.75 | 129.0 | 34.1 | 1.1 | 170.0 | 44.9 | 1.5 | 270.0 | 71.3 | 1.5 | 331.0 | 87.5 | 2.2 | 376.0 | 99.3 |
| 0.6 | 60 | 20.1 | 0.75 | 126.0 | 32.8 | 1.1 | 165.0 | 43.6 | 1.5 | 266.0 | 70.3 | 2.2 | 323.0 | 85.3 | 2.2 | 368.0 | 97.2 |
| 1.0 | 100 | 33.5 | 0.75 | 123.0 | 32.5 | 1.1 | 161.1 | 42.6 | 2.2 | 260.0 | 68.7 | 2.2 | 314.0 | 83.3 | 3.0 | 361.0 | 95.4 |
| 1.8 | 180 | 60.4 | 0.75 | 110.0 | 29.1 | 1.5 | 153.0 | 40.4 | 2.2 | 242.0 | 63.9 | 2.2 | 291.0 | 76.9 | 3.0 | 340.0 | 89.8 |
| 2.5 | 250 | 83.8 | 1.1 | 90.0 | 23.8 | 1.5 | 130.0 | 34.3 | 2.2 | 218.0 | 57.6 | 3.0 | 269.0 | 71.1 | 3.0 | 312.0 | 82.4 |
| 3.0 | 300 | 100.6 | 1.5 | 61.0 | 16.1 | 2.2 | 102.0 | 26.9 | 3.0 | 190.0 | 50.2 | 3.0 | 242.0 | 63.9 | 3.5 | 284.0 | 75.0 |
| 3.5 | 350 | 117.4 | - | - | - | - | - | - | 3.0 | 160.0 | 42.3 | 3.5 | 205.0 | 54.2 | 3.5 | 235.0 | 62.1 |
| F95B | 700 rpm | 900 rpm | 1400 rpm | 1750 rpm | 2500 rpm | ||||||||||||
| Bar | kPa | ft | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM | kW | L/min | GPM |
| 0.5 | 50 | 16.8 | 0.75 | 182.6 | 48.2 | 1.1 | 236.5 | 62.5 | 1.5 | 384.2 | 101.5 | 2.2 | 483.6 | 127.8 | 4.0 | 626.7 | 165.5 |
| 1.0 | 100 | 33.5 | 1.1 | 172.7 | 45.6 | 1.1 | 231.3 | 61.1 | 1.5 | 372.0 | 98.3 | 3.0 | 472.9 | 124.9 | 5.5 | 617.9 | 163.2 |
| 1.5 | 150 | 50.3 | 1.1 | 160.1 | 42.3 | 1.5 | 214.5 | 56.7 | 2.2 | 350.4 | 92.6 | 3.0 | 444.1 | 117.3 | 5.5 | 583.8 | 154.2 |
| 2.0 | 200 | 67.1 | 1.1 | 132.3 | 35.0 | 1.5 | 181.0 | 47.8 | 3.0 | 315.4 | 83.3 | 3.5 | 406.2 | 107.3 | 5.5 | 553.1 | 146.1 |
| 2.5 | 250 | 83.8 | 1.5 | 79.5 | 21.0 | 2.2 | 137.8 | 36.4 | 3.0 | 267.6 | 70.7 | 4.0 | 361.3 | 95.5 | 7.5 | 506.4 | 133.8 |
