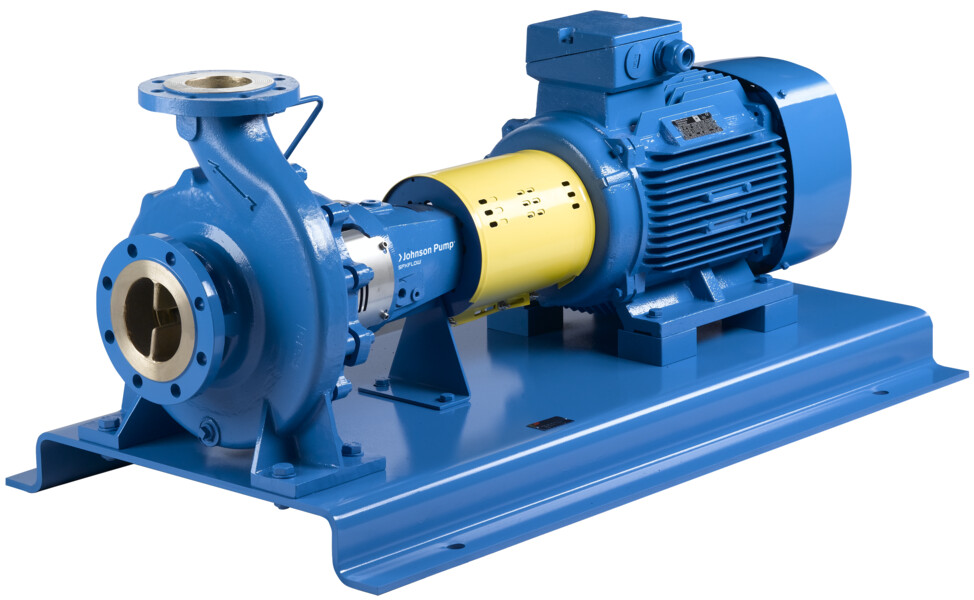

CombiNorm - Centrifugal Pump according to EN 733 (DIN 24255)
Product Type(s) : Centrifugal Pumps
Description :
WHERE TO BUY
CombiNorm represents a range of horizontal centrifugal pumps suited for handling low-viscosity, clean or slightly contaminated liquids. The pump is designed to EN 733 (DIN 24255).

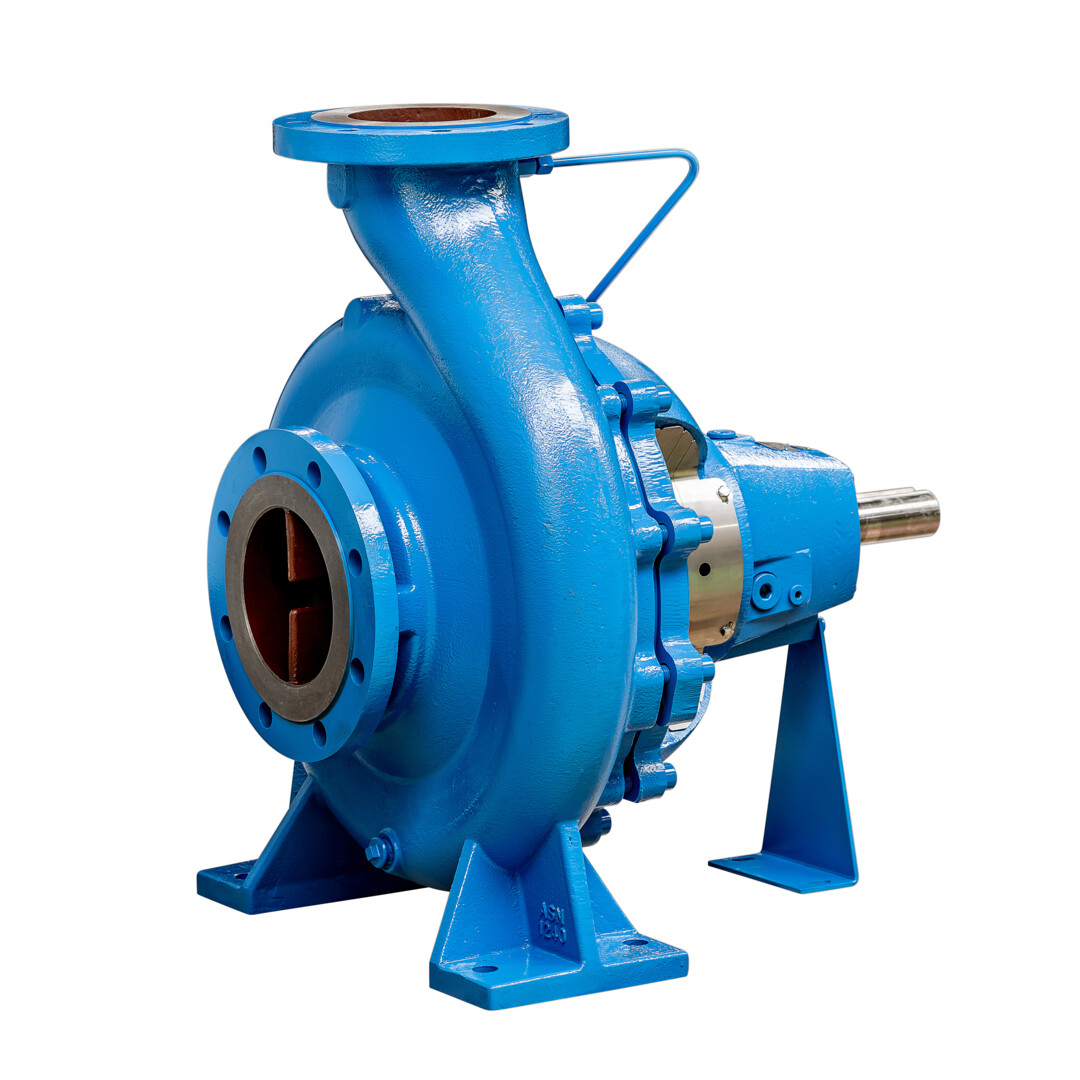

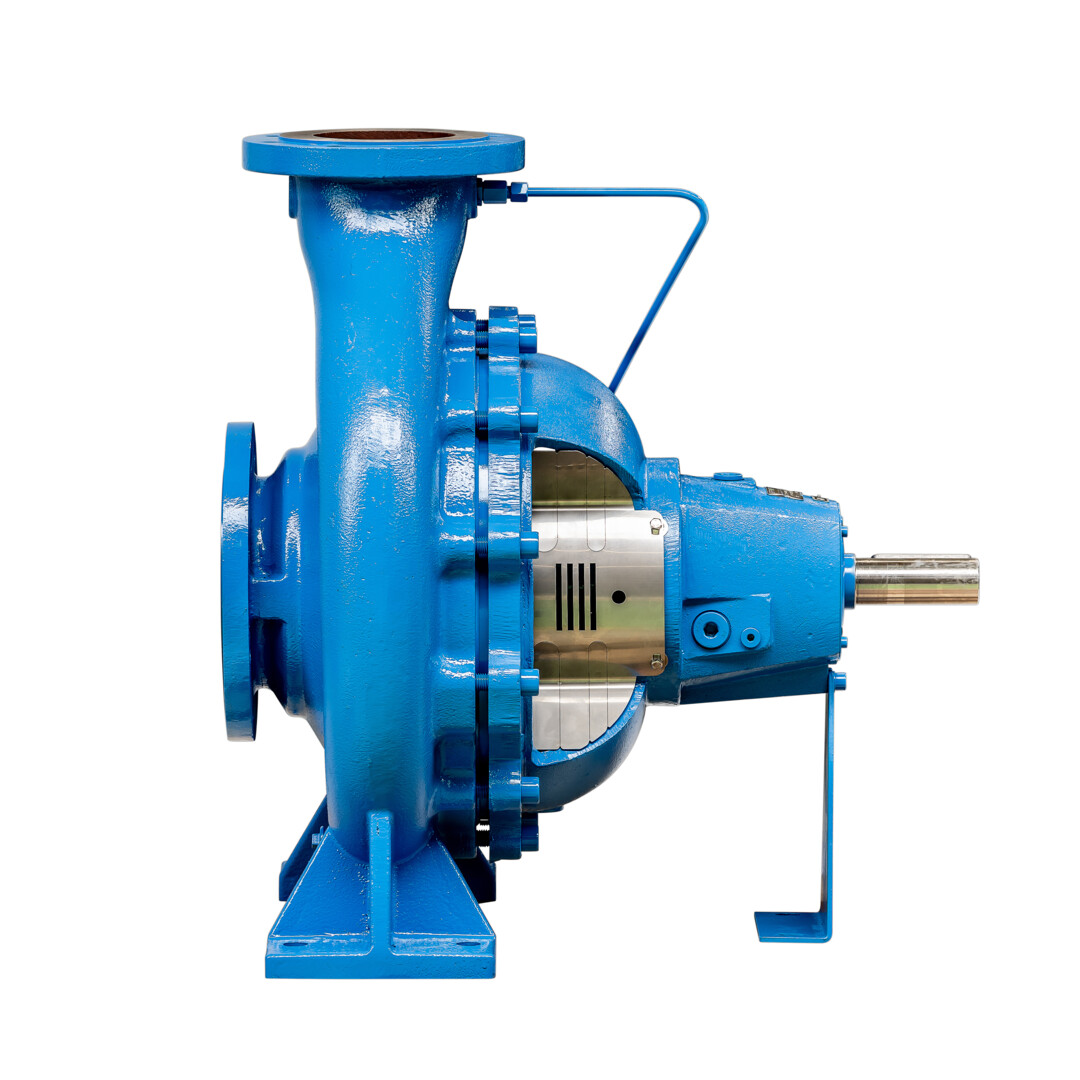

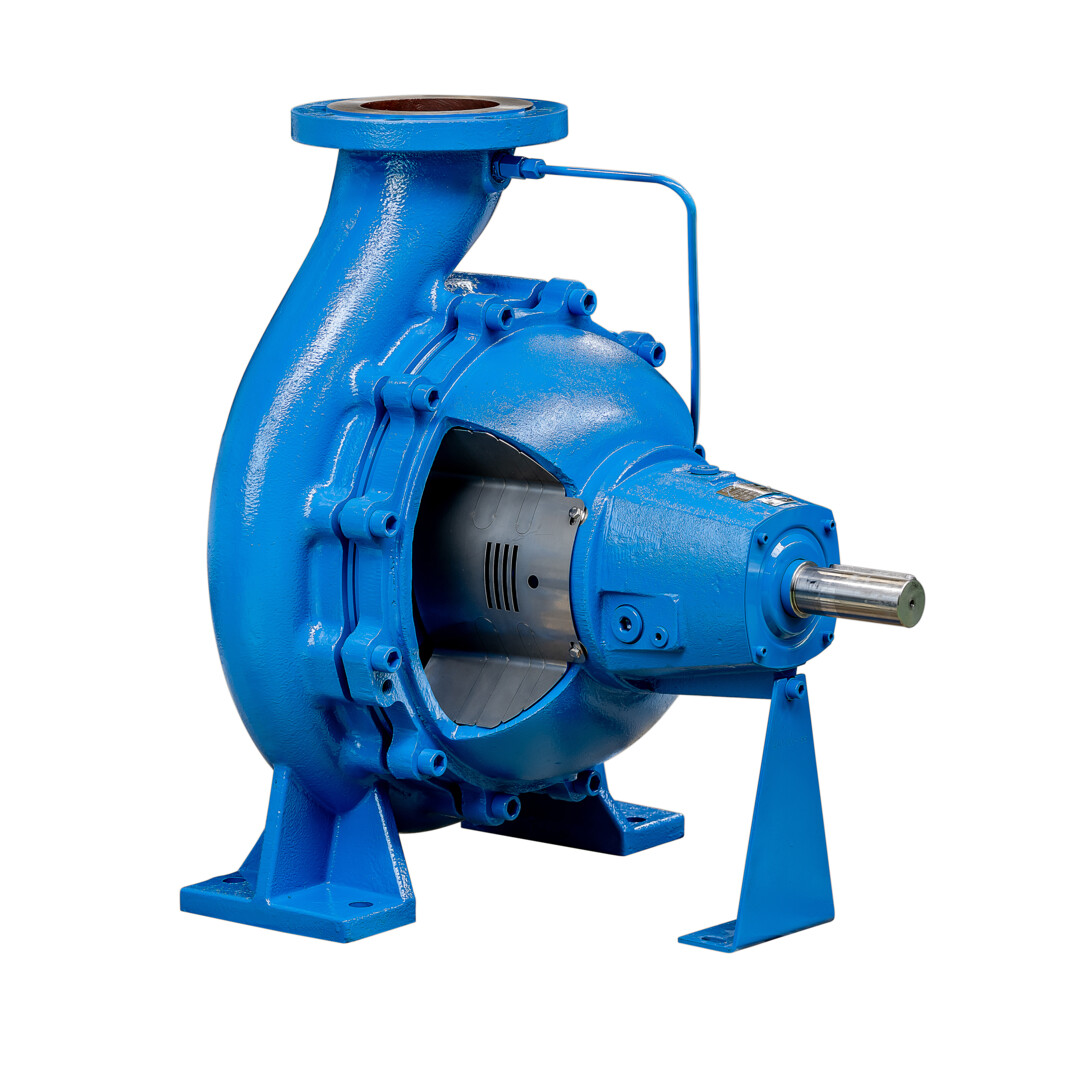

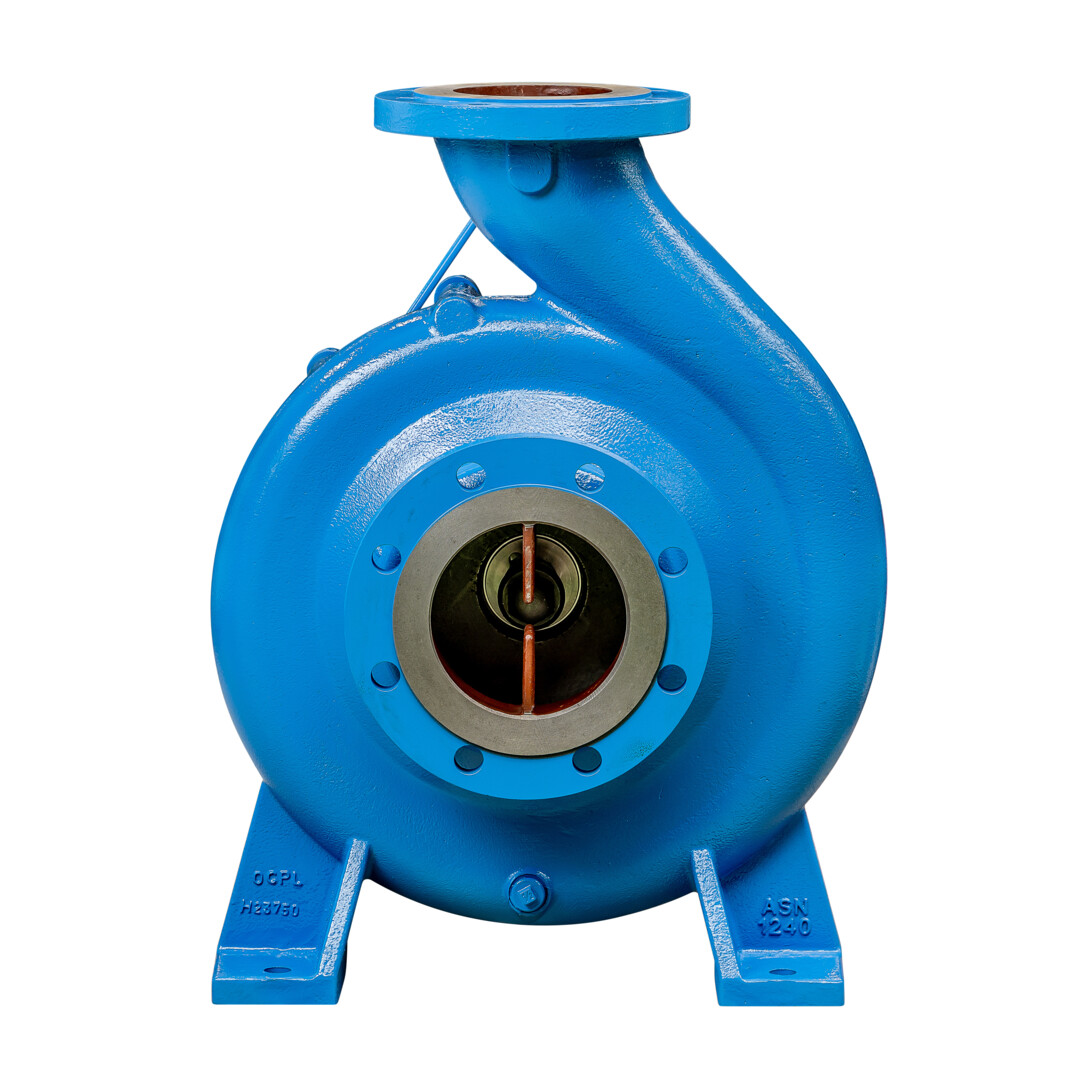

Horizontal Centrifugal Pump to EN 733 (DIN 24255)
Key Design Features
- Standardized and modular design
- Flanges according to ISO 7005 PN 16
- Outstanding hydraulic performance
- High efficiency impeller
- Closed impeller with back vanes for axial balancing
- Back-Pull-Out principle for easy maintenance
Seal and Shaft Technology
- Single unbalanced/balanced seals to EN 12756 (DIN 24960)
- Single and double cartridge seals with seal support system
- Quenched shaft sealing
- Gland packing option
- Dry-shaft design (no contact between pumped liquid and shaft)
- Robust shaft design
Bearings and Certifications
- Extended lifetime performance
- 2-deepgroove ball bearings or double row angular contact thrust bearing and cylindrical roller bearing
- Grease or oil bath lubricated bearings
- ATEX certification
Suitable Applications
Low Viscosity or Lightly Contaminated Liquids
Suitable for: Low viscosity, clean or slightly contaminated liquids.
Technical Data
| Casing: | Cast iron, Nodular cast iron, Bronze |
|---|---|
| Impeller: | Cast iron, Bronze |
| Max. capacity: | 1 500m3/h |
| Max. delivery head: | 140 m |
| Max. liquid temp: | 200°C |
| Max. pressure: | 16 bar (10 bar) |
| Max. speed: | 3 600 rpm |
