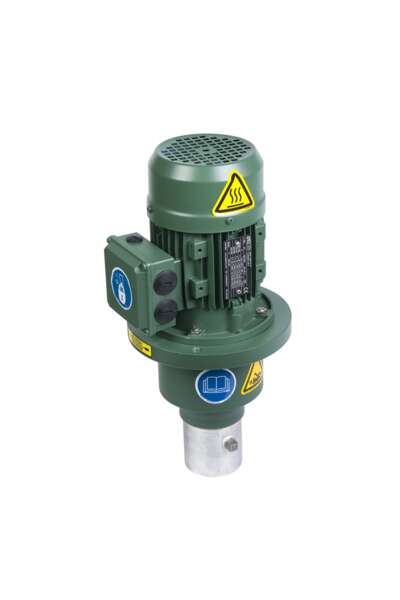

Nettco i-Series - Portable and Fixed Mount Mixer System

Product Type(s) : Portable Mixers
Description :

Economical Portable and Fixed Mount Mixer System configured to meet your industrial needs. Available in a wide range of mixing and mounting configurations utilizing a unique modular assembly design.
WHERE TO BUY

FEATURES

Unique Modular Concept Features:

  • Light weight aluminum construction
    • Proven planetary gearing - robust and reliable
    • Unique, innovative modular design
    • Reverse-taper shaft attachment for added safety
    • Motor, 1/2 - 3 HP (0.37 - 2.2 kW)
      • Washdown (IP55), inverter ready motor
      • Optional air motor available
    • Food grade lubricant optional
    • Fully standardized product
  • Direct and gear options for this global use mixer provides full range of shaft speeds (RPM)
    • 1450, 290, and 240 (50Hz)
    • 1750, 350, and 280 (60Hz)Direct and gear options for this global use mixer provides full range of shaft speeds (RPM)
  • Shaft lengths up to 84" (2100 mm)
  • Simple, compact design
  • Economical
  • Impellers from world's mixing technology leader
    • Multiple style impellers available
      • Hydrofoil, PBT and FP 100 (Marine Props)

Nettco Temperature Limits

  • Ambient temperature limits
    • Min 32F (0 C)
    • Max 104 F (40 C)
  • In-tank temperature limits
    • Model P & Q Max 200 F (93 C)
    • Model L Max 300 F (150 C)
    • Model S Max 250 F (121 C)
Theory of Operation

The Nettco i-Series mixer is available in a wide range of mixing and mounting configurations utilizing a unique modular assembly design. With one mixer it is possible to configure a clamp-on, open tank, or sealed mixer design, plus this mixer can be quickly converted from one mounting arrangement to another. Modifying the mounting  configuration can be accomplished in less than two minutes.
• Highest quality at a competitive price
• For tank sizes: 0.1 - 20 m3 (25 - 5,000 gal.)
• Designed for OEM Systems Suppliers and end users in general chemical industries
• Wide range of impellers and mounting options

Key Applications

With a wide range of sizes, speeds, and mounting options, the Nettco i-Series mixer can be used in a variety of mixing applications.

Chemical

Beverage

Paints

Plastics

Industrial

OPTIONS & PERFORMANCE

Mounting Types

Clamp Module (P):

  • Bolted onto base module
  • Clamps to vessel or stand
  • Corrosion-resistant Stainless Steel Construction
  • 0º to 20º vertical mounting
  • 0º to 90º horizontal adjustment

Adjustable mounting - controls vessel contents swirl for improved mixing Fixed-Mount Open Tank Module (Q):

  • Open Tank Flange Module
    • Attaches to base module
  • Use on open tanks where a seal is not required
    • Vertical on center for baffled tanks
    • Vertical offset for unbaffled tanks
    • Can be angular mounted

Fixed-Mount Closed Tank Mechanical Seal Module (S):

  • Closed Tank Sealed Module
    • Attaches to base module
  • For closed tanks with seal requirements
    • ANSI or DIN Flange Mount
    • Single dry-running mechanical seal good for 50 PSI (340 kPa) (allowable tank pressure)

Bung Adaptor - Allows for mixing in drums by fitting securely into the opening

  • Attaches to base module
  • For use on standard drum with a 2" NPT bung
  • Stainless Steel construction to prevent corrosion

Fixed-Mount Closed Tank Lip Seal Module (L):

  • Closed Tank Sealed Module
    • Attaches to base module
  • For closed tanks with seal requirements
    • ANSI or DIN Flange Mount Lip Seal
    • Food Grade lip seal good for 25 PSI (170 kPa) (allowable tank pressure)

Additional Options Available

  • Sanitary Flange Mechanical Seal Assembly
    • Attaches to base module
    • 3", 4", and 6" Sanitary flange designs available
    • Single dry-running mechanical seal good for 50 PSI (340 kPa) tank pressure
    • Stainless Steel construction t prevent corrosion
  • Sanitary Flange Lip Seal
    • Attaches to base module
    • 3", 4", and 6" Sanitary flange designs available
    • Food grade lip seal good for 25 PSI (170kPa) tank pressure
    • Stainless Steel construction to prevent corrosion

  MULTIPLE IMPELLER STYLES: PBT Impeller: For low-to-medium viscosity flow controlled applications. Although superseded by the Hydrofoil, the PBT still has a specific role in applications where a degree of fluid shear is beneficial to the overall process result. FP 100 Impeller (Marine Prop): Recommended for applications requiring moderate pumping action and powder-wetting capabilities. Hydrofoil Impeller: For low viscosity flow controlled applications. Combines performance and high flow efficiency not found in other axial flow impellers.   GEAR DRIVE MIXER REPAIR KIT:

  • Service kits available for rapid replacement of routine service items.
