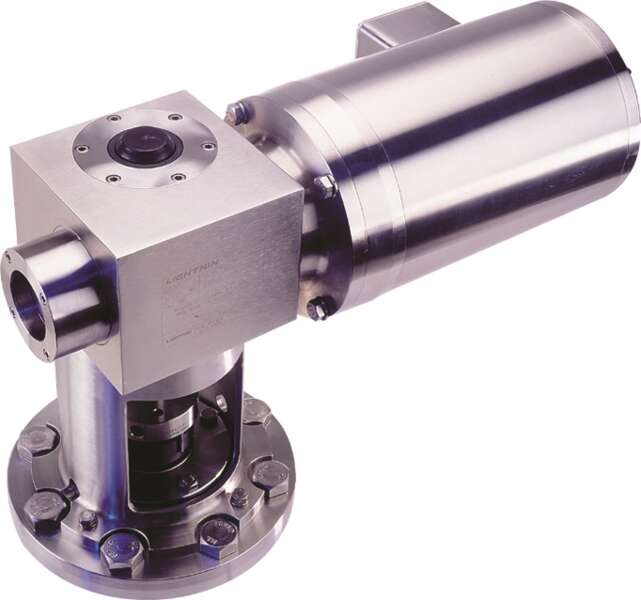

SR - SanStar Sanitary Mixer

The ideal compact mixer in locations with a small footprint and minimum available headroom, for sanitary biological, pharmaceutical, cosmetic and food processing applications from 100 to 20,000 liters (25 gal. to 5200 gal.).

Designed for media suspension and storage, buffer solutions make down, plasma extraction, fermentation, cell culture and general media processing
Low headroom (less than 13" tall) right angle gear drive with low center of gravity. Tanks can easily be moved from one location to another with mixer in place
Designed for SIP/CIP environments in the most stringent cGMP facilities
Washdown duty or energy efficient inverter duty motor
All stainless or hard anodized aluminum pedestal
Sealed gearbox with expansion chamber - no breather valve required
Available with LIGHTNIN's QAD validation support package
Backed by LIGHTNIN's 100% process guarantee
Supplied with Lightnin A310/A510 low-shear impeller
Customers can tailoer the most cost-effective mixer configuration based on specific process and environmental requirements

Specifications
Options

Wetted Parts• A310/A510 high-efficiency, low-shear hydrofoil impeller with or without stabilizers• 316L stainless steel material• Welded construction• Threaded in-tank shaft coupling available• Surface finish per customer specification• Electro-polish available Drive Assembly• 0.37kW (0.5HP)• 5:1 and 10:1 reduction (nominal 350 and 175 rpm restrictively, at 60Hz)• L-10 bearing life exceeds 100,000 hours• 1.75 service factor• Food-grade lubricant• Food-grade white epoxy finish• Stainless steel output shaft and all stainless hardware• Sealed gearbox with expansion chamber; no breather valve required Motors• Washdown and inverter duty, TEFC, 208-230/460V, 3-phase, 60 Hz, food-grade white epoxy finish• Washdown duty, TEFC, 115V, single-phase, 60 Hz, food-grade white epoxy finish Seals• Single dry running• With or without sanitary gland Pedestal and Mounting Flanges• 4-, 5-, or 6-inch ANSI 150# flange, or 4- or 6-inch Tri-Clamp® sanitary connection, DN 100, 125 or 150 PN10 flanges are also available• Solid 316L SS construction on flanges• Hard anodized aluminum pedestal• Surfaces unpainted and finished to 0.2µm Ra (63µinch Ra)

Custom Options • High-alloy impeller and shaft• All stainless steel gearbox and 300 Series stainless steel motor option available• Steel-it paint• Explosion-proof or ATEX motor• Alternative size mounting flanges or Tri-Clamp® sanitary connections• Alternative impellers including props, Rushton turbines, and A315, A320, or A340 high-solidity hydrofoils• Extended power and speed range• Optional 316L stainless steel pedestal construction• AC variable frequency drives (VFD) available• Local readout tachometer option• All 300 Series stainless steel exterior finish available

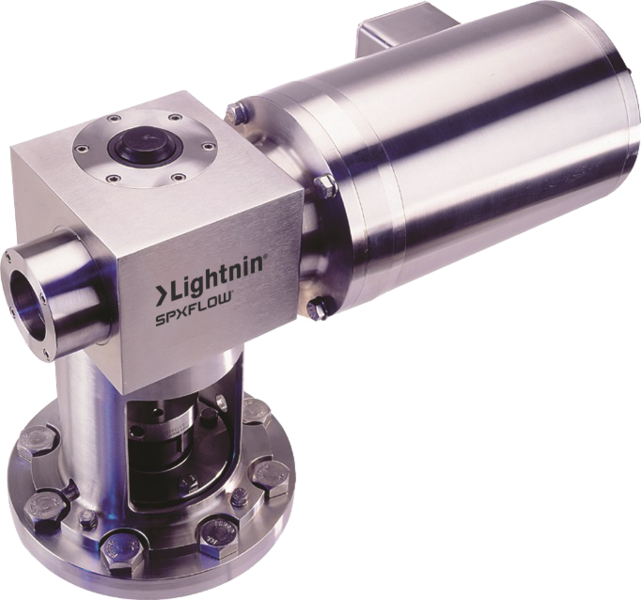

SR - SanStar Sanitary Mixer
