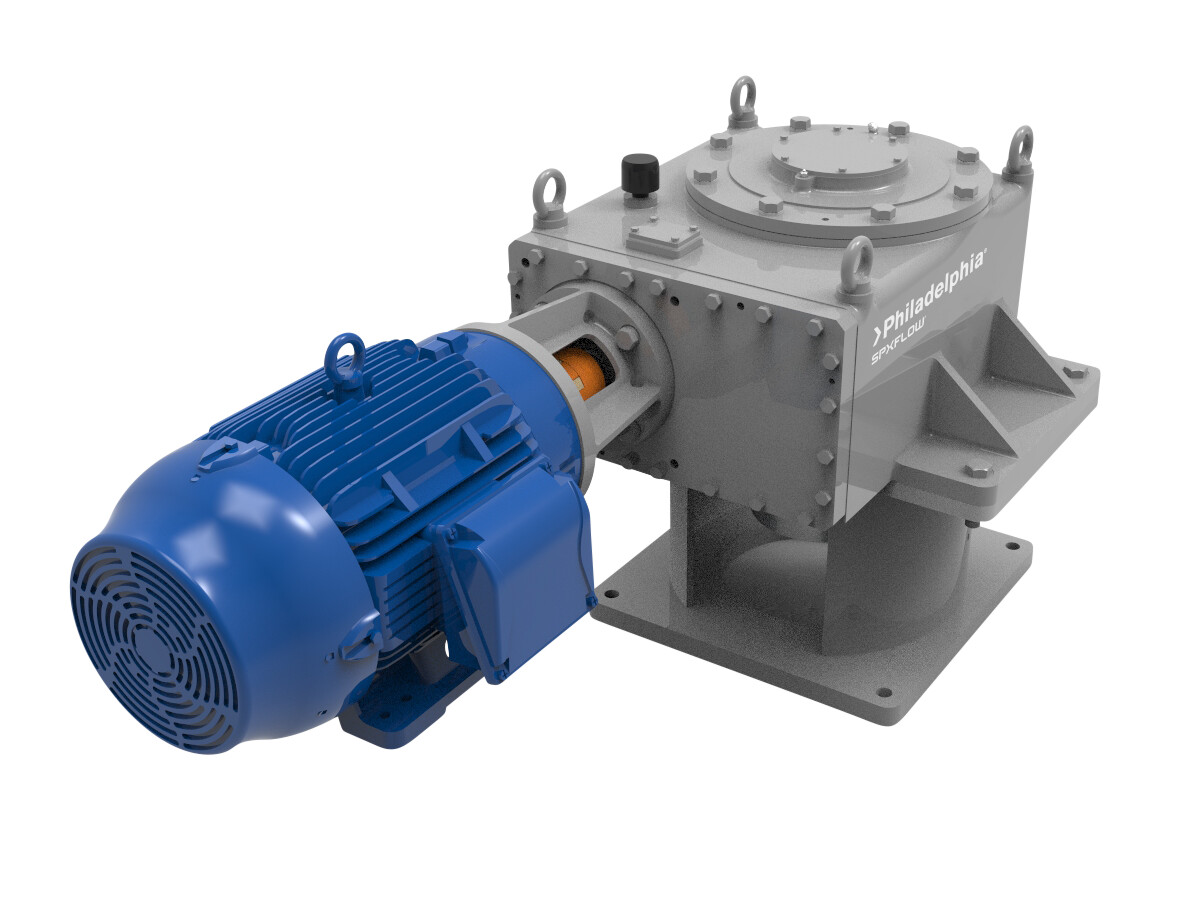

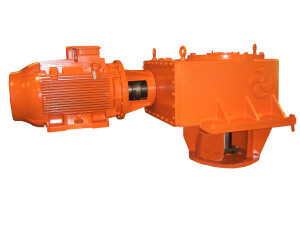

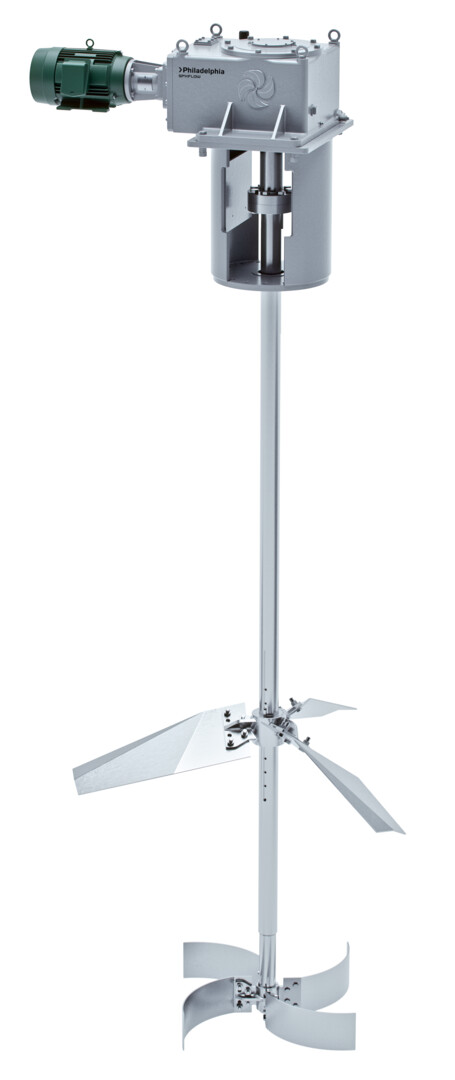

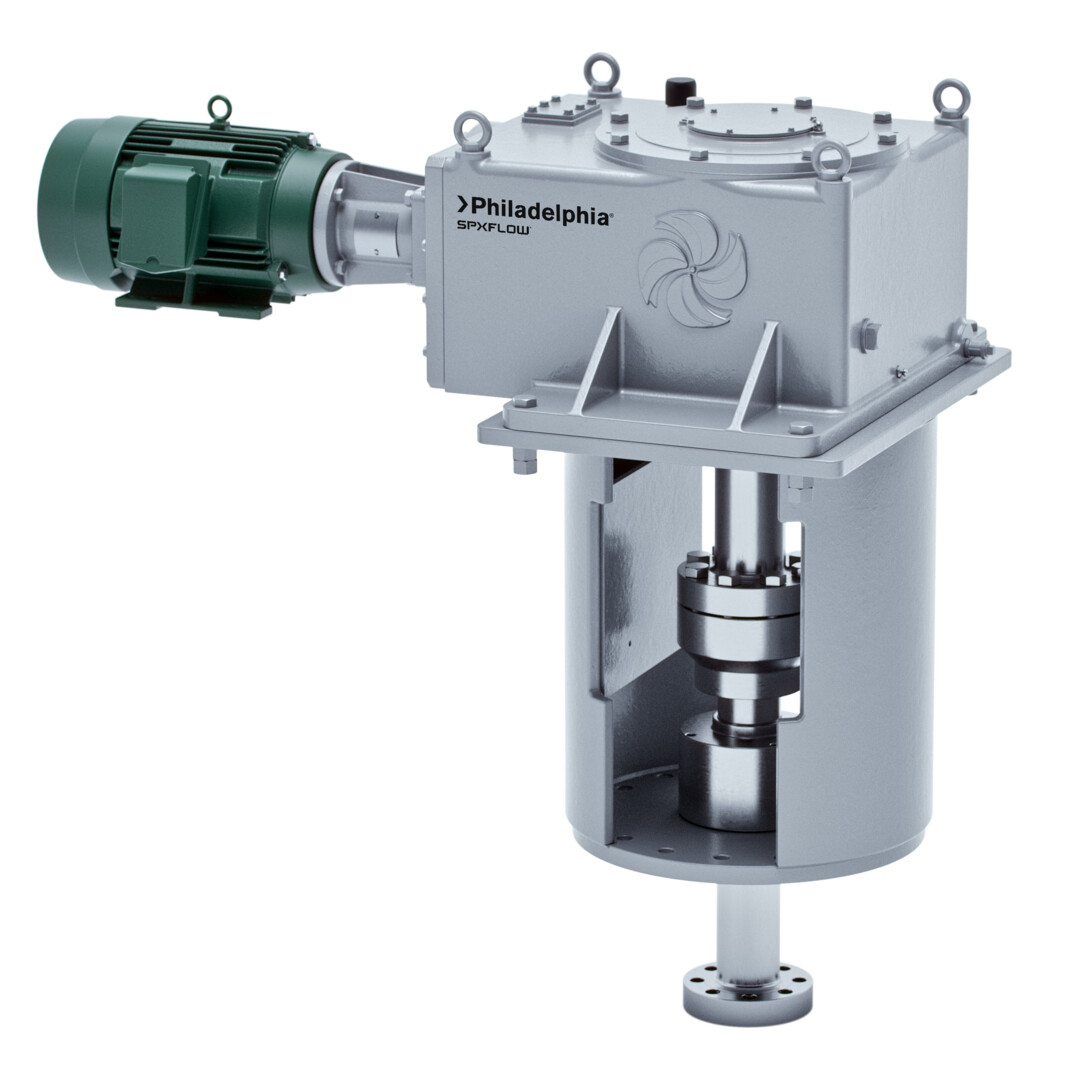

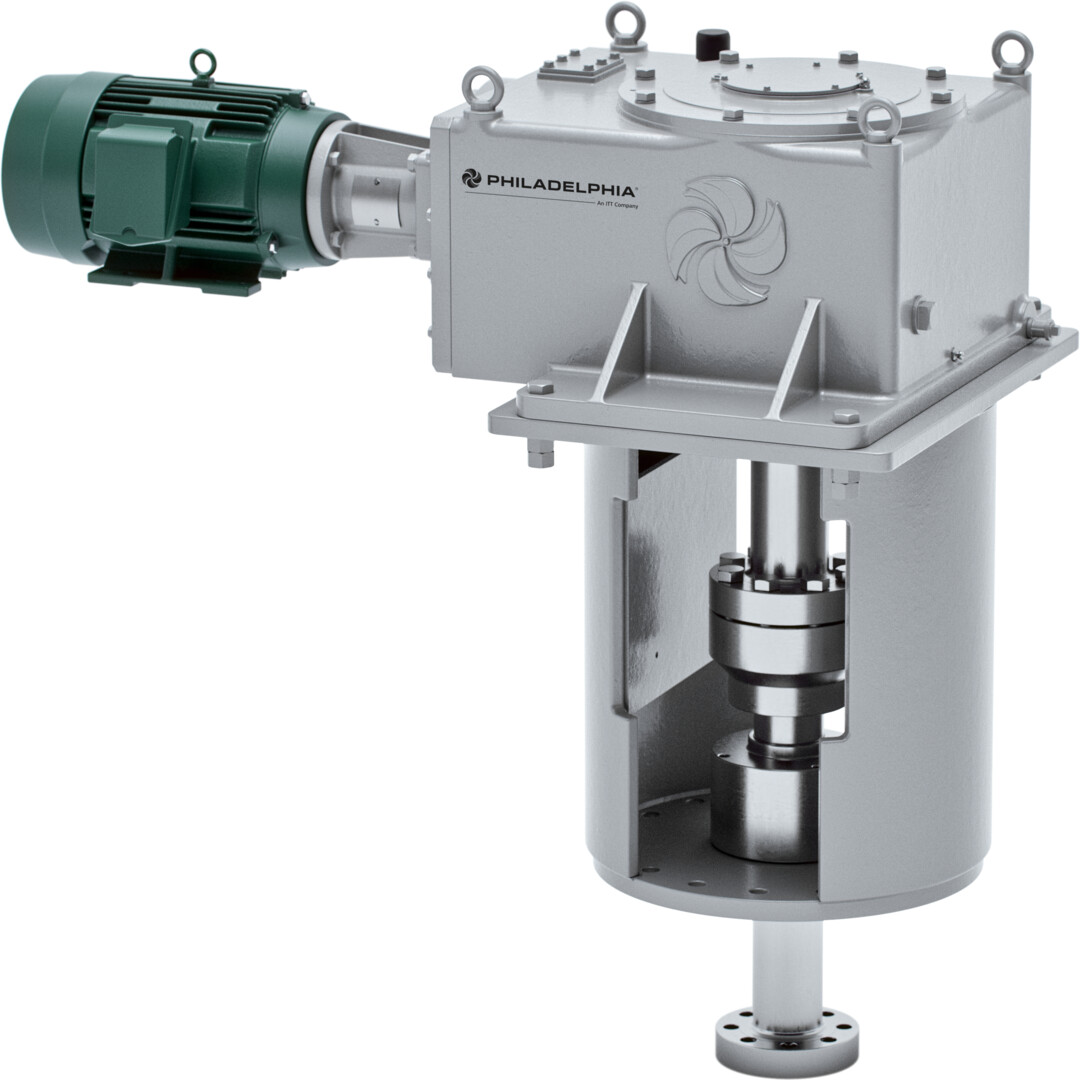

Raven 3850 Series Mixer Drive

Product Type(s) : Top Entry Mixers
Description :

Discover the Raven 3850 Series Mixer Drive, engineered for longevity and precision in industrial mixing applications. This flagship solution is built to excel under the harshest conditions while optimizing your operations.

.

WHERE TO BUY

FEATURES

The Raven 3850 Series Mixer Drive represents the pinnacle of industrial mixing technology. Designed by Philadelphia Mixing Solutions, it offers unmatched durability, precision, and efficiency for applications ranging from chemical processing to wastewater management. The advanced features, including a piloted C-face motor mount and precision-engineered gears, ensure reliable performance even in the most challenging environments.

  • Piloted C-Face Motor Mount Design: Eliminates foot-mounted alignment issues, enhancing stability and longevity.
  • Precision Bearings: Oversized tapered roller bearings effectively handle high shock and overhung loads while increasing the life of the gearbox.
  • Gear System: Carburized and ground helical gears ensure smooth, quiet operation with superior shock load capacity. All helical pinion and gears are designed with tip and root relieve as well as crowning to avoid tooth contact pattern edge loading
  • Durable Mixer Housing: Closed-grain cast iron construction with inspection windows for easy maintenance and extra heavy duty gussets to minimize housing deflections from high cantilevered bending loads. External gussets also increase the thermal rating of each drive size
  • Drywell Design: Oil on the ground is both a safety and environmental risk. A non-contacting mechanical drywell prevents oil leaks at the output shaft, ensuring cleaner operation and reduced maintenance.
  • Input Shaft Sleeve:  All input shafts include hardened replaceable sleeve to extend input shaft oil seal life.
  • Output Shaft: The Output Shaft of the RAVEN drive sizes 3853M-3861M is centered using a lower taper collar assembly to minimize both pilot and coupling face runout on the output shaft. The RAVEN drive also has solid output shaft configurations for special applications.  The RAVEN size 3863M comes standard with a solid output shaft.
  • Guardian Package: Facilitates simple, accurate oil sampling to minimize wear and reduce repair costs.
  • Fully Straddled Pinions:  All helical pinions are supported on both ends with bearings to minimize shaft deflection from operating loads to guarantee proper gear tooth patterns.
  • Raised Gasket Surfaces: Water in the oil is the #1 killer of gearbox life. With all gasket surfaces on raise bosses this eliminates any water wicking from pooled rain water on the gearbox housing through a gasket.
  • Lubrication at Theorical zero rpm: Thanks to dip lubrication design the RAVEN gearbox will be lubricated rotating at low input speeds eliminating the need for an external lubrication system. Less parts means less chance of failure while making this gearbox a great choice when a Variable Frequency Drive is installed.
  • Oil Sump: Designed to funnel foreign particulate away from gearing and bearing meshes instead of through them!
Theory of Operation

The Raven 3800 Series Mixer Drive


The Raven 3800 Series Mixer Drive utilizes a robust drive mechanism with precision-engineered gears and bearings to deliver consistent torque for demanding mixing applications. Its piloted motor mount ensures optimal alignment, while the unique drywell design eliminates potential oil leaks. The integrated Guardian Package allows for proactive maintenance by enabling continuous monitoring of lubrication health, ensuring minimal downtime and extended operational life.

VIDEOS

Raven 3800 Series Mixer

FAQs on Product Selection

Q: What industries is the Raven 3850 best suited for?
A: The Raven 3800 is widely used in industries like chemical processing, oil and gas, wastewater treatment, mineral processing, food and beverage, and more.

Q: How do I choose the right shaft and impeller configuration?
A: Consult our team to customize shaft designs and impeller configurations for your specific application needs.

Q: Can the Raven 3850 operate in harsh conditions?
A: Yes, its rugged design withstands high temperatures, corrosive environments, and fluctuating loads.

Q: How does the drywell design benefit my operation?
A: Oil on the ground is both a safety and environmental risk. A drywell prevents oil leaks at the output shaft, ensuring cleaner operation and reduced maintenance.

The drywell design eliminates oil leaks on the output shaft, ensuring cleaner operation and reducing environmental risks and maintenance downtime.

Q: What makes the Raven 3850 energy-efficient?
A: The precision-engineered carburized helical gears and efficient piloted motor mount reduce energy loss and enhance operational efficiency, lowering energy costs over time.

Q: Is the Raven 3850 customizable for my specific application?
A: Absolutely. The Raven 3800 can be equipped with custom shaft and impeller configurations to meet your unique process requirements.

Q: How do I determine the correct impeller for my application?
A: Our team will assess factors like fluid viscosity, tank size, and required mixing dynamics to recommend the optimal impeller type, such as low-solidity hydrofoil or high solidity impellers.
