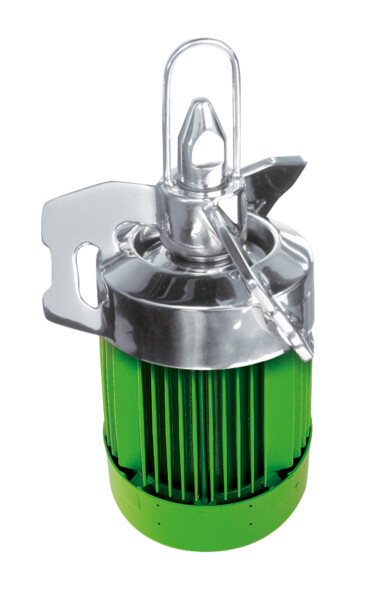

Hermet Mag Drive Mixer

Product Type(s) : Magnetic Mixers
Description :

Hermet mag drives are used in all industries where products must be handled in a sterile or toxic environment. It is used for blending, suspension, dissolving, gassing and heat-transfer applications in low to medium viscous media. The system is fit for CIP and SIP and materials have been FDA approved for compliance with current GMP. Drive unit as IEC/NEMA - motor, gearmotor or air driven motor.

WHERE TO BUY

FEATURES

  • 100% hermetic sealed tank for sterile or toxic processing.
  • Great variety of impeller systems from high flow to high shear to super low shear.
  • Multiple impeller arrangements for combination of blending and gassing.
  • Standard inductive speed measurement giving full process control.
  • High quality materials with controlled surface quality plus approved SIP/CIP cleaning procedures.
  • Special developments for super small residuals.

DIMENSIONS & SPECIFICATIONS

Motor Power - 0,12 - 11 kW

OPTIONS & PERFORMANCE



SPECIFICATIONS

Material

Grade 1.4435 / AISI 316L steel, Special grades, Silicon carbide bearing, EPDM O-ring deals, (FDA approved, other materials upon request)

Surfaces

VDMA hygienic class 4 (average roughness Ra = 0.8)
VDMA hygienic class 5 (average roughness Ra = 0.4)
VDMA hygienic class 6 (average roughness Ra = 0.2)

Operating Conditions

<150° C / 6 bar. Frequency converter operation

Tank Size

2 l to 1000 m³ / with multiple side entries

Cleaning

Designed to GMP, FDA and 3A requirements Open design for CIP/SIP

Sensors

Agitator head speed monitor for explosive atmospheres Welded-in flange temperature monitor (dry running)

Impellers

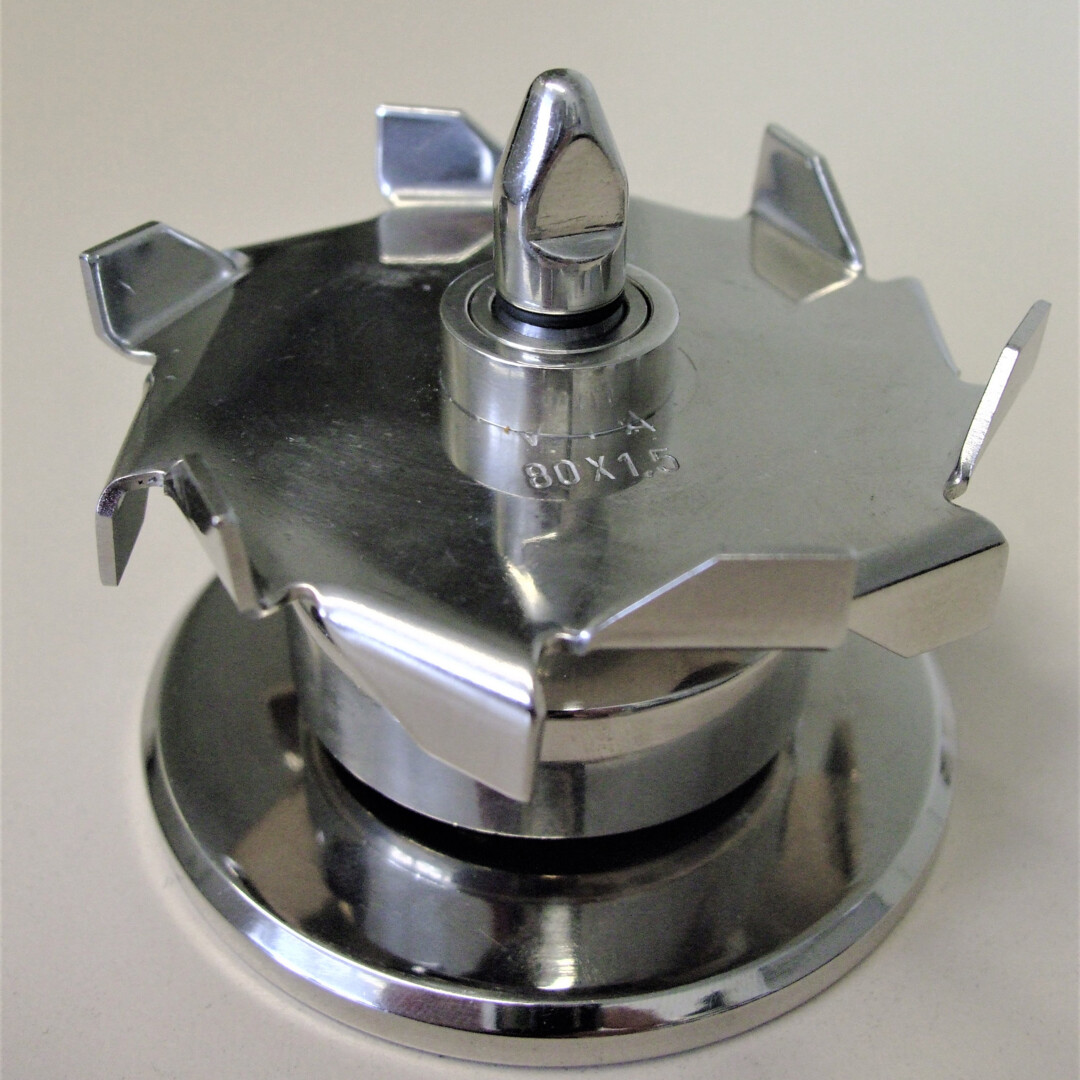

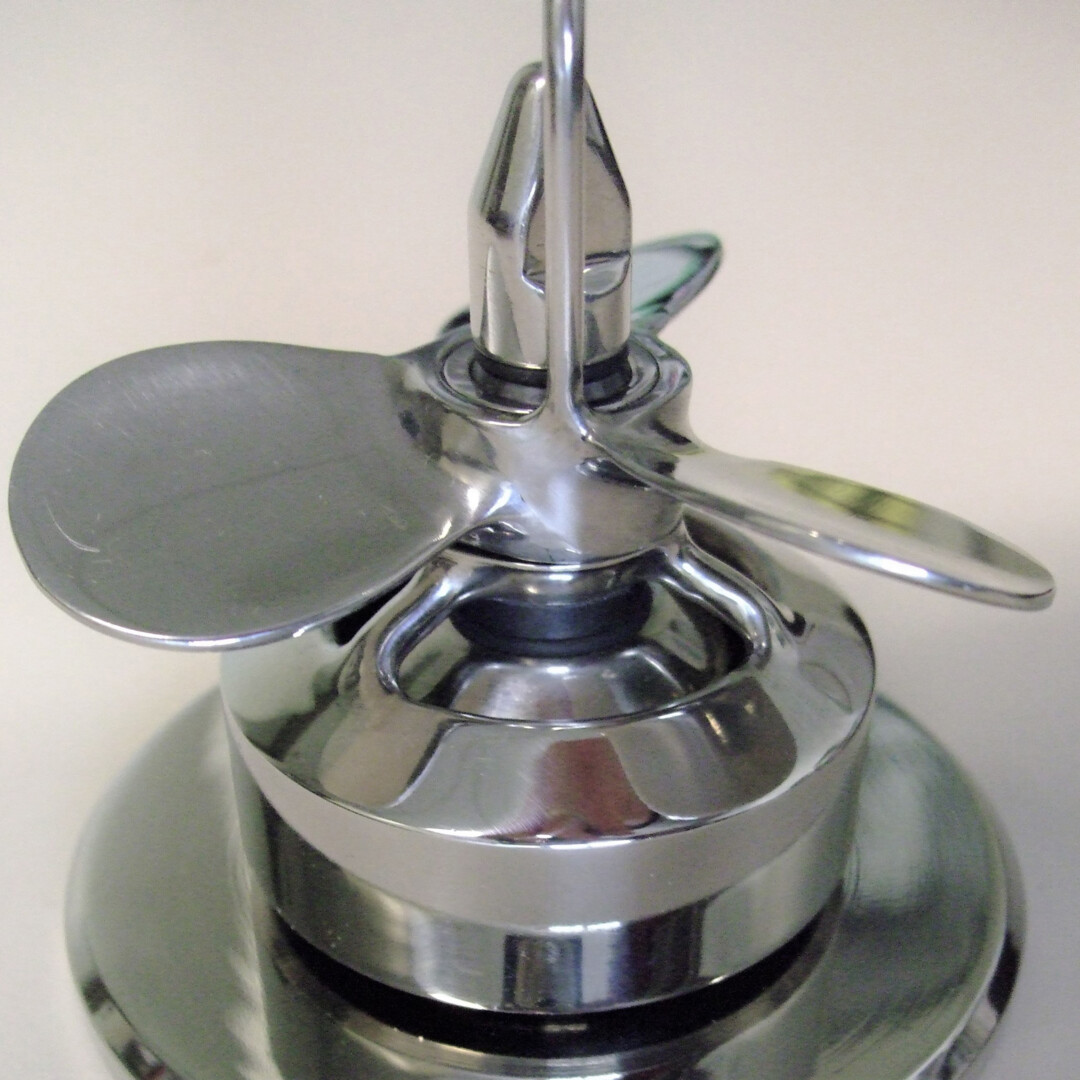

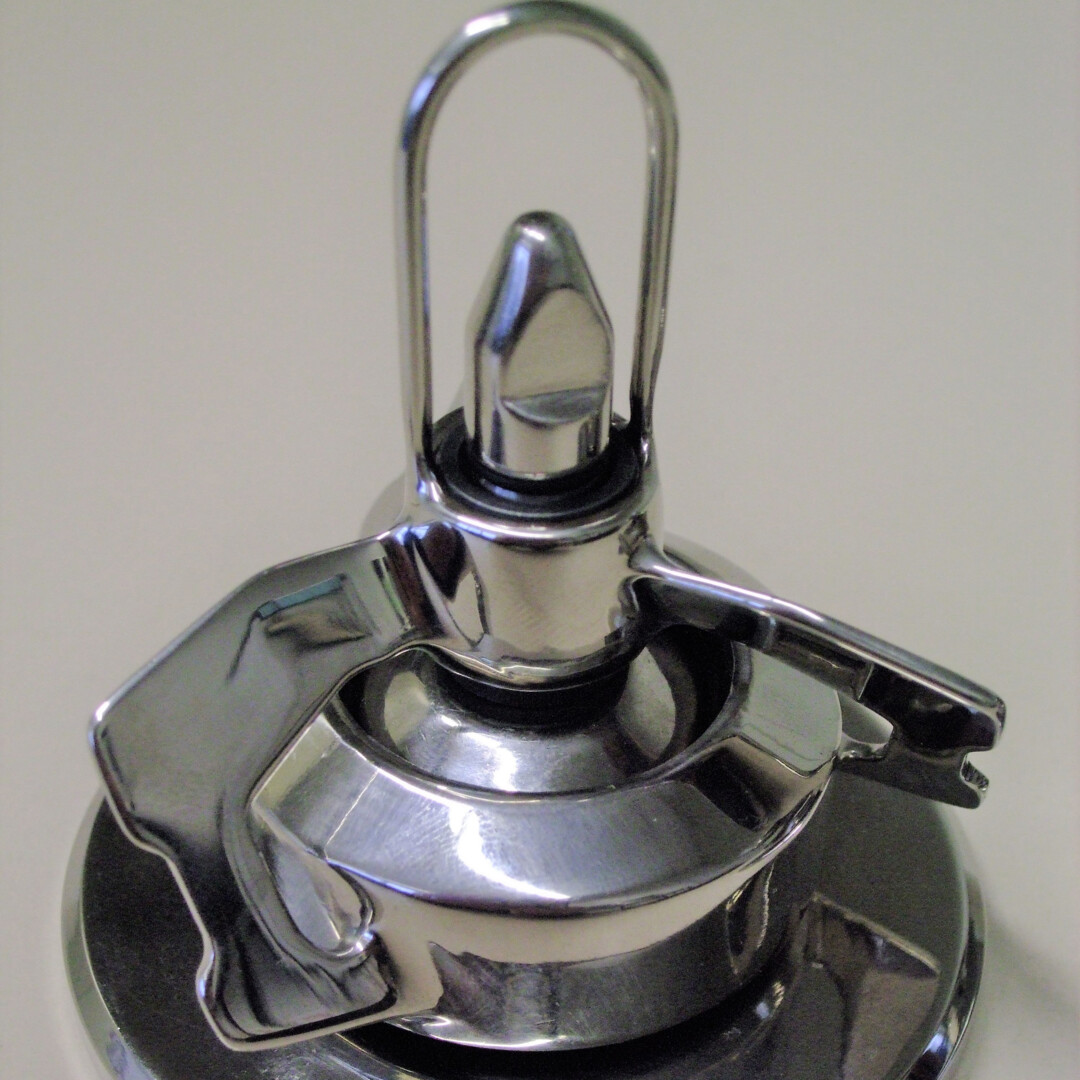

Pharmaceutical/DELTA impeller, marine-type impeller, tooth disk impeller dia. 100 to 350 mm
