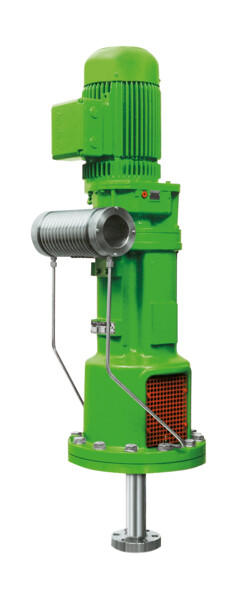

SNR Top or Side Entry Mixer

SNR agitators with future oriented design satisfy even non-standard requirements for medium sized power and torque needs.

Benefits include compact dimensions, quiet operation and a wide range of sealing and drive systems. Versatility makes our standard agitators the right choice for a multitude of different production and process applications.

Key Features

Flexible Drive Systems: Available in fixed or variable speed configurations to meet diverse process requirements.
Elastic Coupling: Provides maximum protection by minimizing torque surges and oscillations.
Integrated Bearing Housing: Robust design with built-in coupling and seal lanterns for enhanced durability and alignment.
Long-Life Bearings: Equipped with double roller bearings for extended service life and reliable performance.
Seal Compatibility: Supports lip seals, stuffing boxes, or mechanical seals with DIN dimensions.
DIN Standard Sealing: Sealing options conform to DIN standard 28138 for standardized integration.
Mounting Options: Includes flanges to DIN 28155 or ANSI standards, and mounting plates for open-vessel support structures.

Motor Power - 1,1 - 110 kW

Drive - IEC/ NEMA Motor plus parallel shaft gear or helical bevel gear or belt drive

Shaft Diameter - 40 - 125 mm

Mixer Orientation – Top or Side Entry

Shaft seal

SL lip seal
SD .5 DIN stuffing box
GDS mechanical seal

Models

SNR – Basic design
SNR-E - 2 bearings and flexible coupling
SNR-H - 1 bearing and hollow-shaft gearbox
SNR-K - 2 bearings and belt drive
