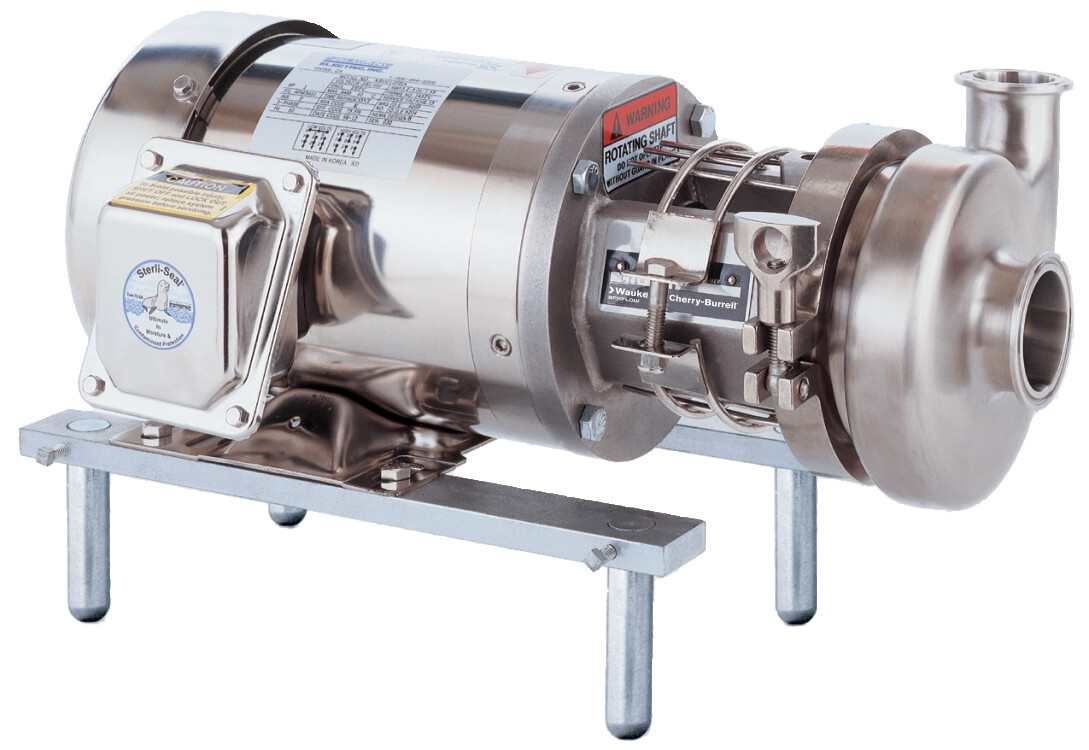

Centrifugal Pumps C-Series
Versatile Waukesha C-Series Centrifugal Pumps from Waukesha Cherry-Burrell find broad application throughout sanitary and industrial processes. These rugged pumps accommodate a wide range of solids and liquids under a variety of flow conditions and deliver long service with minimum downtime.
FEATURES
This pump offers strong performance and competitive price/value within the lower spectrum of heavy-duty, centrifugal pump applications. It can be installed in a series without fear of seal failure from elevated inlet pressures, even with viscous products.
- Hydraulic balancing reduces pressure at sealing surface for less wear, greater efficiency
- Easy-cleaning, open type impeller delivers smooth pumping performance
- Enlarged inlets available for larger suction lines
- Standard CIP capability
- Pump and parts are interchangeable with other C-Series brands
- Long-life backplate and adapters - both backplate (with O-ring) and adapters are machined from solid bar stock stainless steel for optimum casing seal life and corrosion resistance.
- Long-life components — all “wet end” components are 316L stainless steel.
- 3-A and CE certified
Design Features:
- 304 stainless steel adapters - standard, eliminate the rust, corrosion and chipping paint of conventional carbon steel adapters.
- Longer seal life - wave spring provides more uniform loading on seal face than single coil spring; hydraulic balancing reduces sealing surface pressures for less wear and less downtime.
- Fast, easy take down - no tools required; quick-opening, heavy-duty cast clamp secures casing; impeller pin retained by centrifugal force.
- Tested performance - every pump passes strict testing before release for shipping.
- Casing matches job - choose from standard or enlarged inlet with port connection that meets your piping system.
- CIP capability - grooves in impeller/shaft routes CIP chemical solutions to all critical areas for clean-in-place.
Product Specifications
MODEL |
INLET |
OUTLET |
MAXIMUM IMPELLER SIZE |
MAXIMUM CAPACITY
|
MAXIMUM HEAD
|
||
---|---|---|---|---|---|---|---|
1750 RPM
|
3500 RPM
|
1750 RPM
|
3500 RPM
|
||||
C-100
|
1½"
(38mm) |
1"
(25mm) |
3.68"
(93mm) |
33 GPM
(7 m³/hr.) |
73 GPM
(17 m³/hr.) |
17 ft.
(5 m) |
55 ft.
(17 m) |
C-114
|
1½"
(38mm) |
1½"
(38mm) |
4.00"
(102mm) |
74 GPM
(17 m³/hr.) |
148 GPM
(34 m³/hr.) |
18 ft.
(5 m) |
74 ft.
(23 m) |
C-114
|
2"
(51mm) |
1"
(38mm) |
4.00"
(102mm) |
84 GPM
(19 m³/hr.) |
180 GPM
(41 m³/hr.) |
17 ft.
(5 m) |
69 ft.
(21 m) |
C-216
|
2½"
(51mm) |
1½"
(38mm) |
6.00"
(152mm) |
145 GPM
(33 m³/hr.) |
280 GPM
(64 m³/hr.) |
42 ft.
(13 m) |
169 ft.
(52 m) |
C-216
|
2"
(64mm) |
1½"
(38mm) |
6.00"
(152mm) |
168 GPM
(38 m³/hr.) |
280 GPM
(64 m³/hr.) |
42 ft.
(13 m) |
169 ft.
(52 m) |
C-218
|
2"
(51mm) |
1½"
(38mm) |
8.00"
(203mm) |
217 GPM
(49 m³/hr.) |
300 GPM
(68 m³/hr.) |
78 ft.
(23 m) |
317 ft.
(97 m) |
C-218
|
3"
(76mm) |
1½"
(38mm) |
8.00"
(203mm) |
230 GPM
(52 m³/hr.) |
305 GPM
(69 m³/hr.) |
76 ft.
(23 m) |
305 ft.
(93 m) |
C-328
|
3"
(76mm) |
2"
(51mm) |
8.00"
(203mm) |
416 GPM
(94 m³/hr.) |
635 GPM
(144 m³/hr.) |
74 ft.
(23 m) |
304 ft.
(93 m) |
C-328
|
4"
(102mm) |
2"
(51mm) |
8.00"
(203mm) |
460 GPM
(104 m³/hr.) |
900 GPM
(204 m³/hr.) |
74 ft.
(23 m) |
313 ft.
(95 m) |
Product Specifications
Mounting:
Pump head mounted to C–face motor; leg kit optional
Nominal Capacity:
- To 780 GPM (177 m3/hr)
Nominal Speed Range:
- 1450 or 2900 RPM–50HZ
- 1750 or 3500 RPM–60HZ
Temperatures: To 212°F (100°C)
Motor:
- Standard C-face; 3 phase, 230/460 volts; 1750 and 3500 RPM
- TEFC and Washdown Duty, Foot Mounted
- Other motor types upon request
Material Specifications
Casing:
- 316L stainless steel
Backplate:
- 316L stainless steel
Impeller:
- 316L stainless steel
Port Connection:
- S–Line Standard
- I–Line Female
- Bevel Seat threaded or NPT (Male or Female) are optional
Seal Type:
- Type D Seal, external balanced (standard)
- Type F Seal (Type D with Cascade Seal Flush)
- Type DG Seal (clamped in seal/seat)
- Type E Seal (double mechanical)
Note: DG, F and E seal not available on C-100
Rotary Seal:
- Carbon (standard)
- Silicon Carbide & Tungsten Carbide (optional)
- DG Seal Seat Material: Silicon Carbide (standard)
- Siliconized Graphite, Ceramic & Tungsten Carbide (optional)
Elastomers:
- Buna (standard) or Fluoroelastomer (optional)
Finish:
- Sanitary Polish 32Ra (150 Grit)

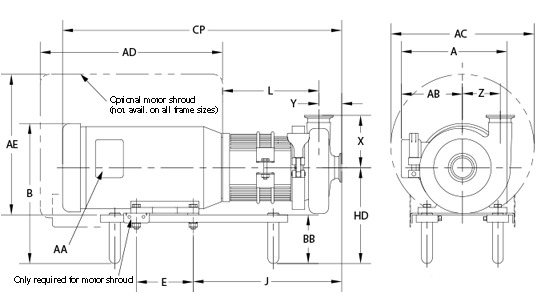

Model C-100

Unit Width Height
FRAME
|
A
in (mm) |
B in (mm) |
CP
in (mm) |
J
in (mm) |
E
in (mm) |
L
in (mm) |
HD
in (mm) |
X in (mm) |
Y in (mm) |
Z in (mm) |
AA
in (mm) |
AB
in (mm) |
AC in (mm) |
AD in (mm) |
AE in (mm) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
56TC
|
6.50 (165)
|
9.49 (241) |
17.60 (447)
|
6.85 (174)
|
2.99 (76)
|
2.76 (70)
|
5.47 (139)
|
3.46 (88) | 1.50 (38) | 1.46 (37) |
0.47 (12)
|
3.23 (82)
|
|||
140TC
|
9.69 (246) | 9.49 (241) | 19.96 (507) | 7.68 (195) | 3.98 (101) | 3.74 (95) | 5.98 (152) | 3.46 (88) | 1.50 (38) | 1.46 (37) | 0.75 (19) | 6.93 (176) | |||
71-B5 | 4.69 (119) | 7.64 (194) | 14.31 (364) | 6.02 (153) | 3.54 (90) | 6.22 (158) | 5.30 (135) | 3.46 (88) | 1.50 (38) | 1.46 (37) | 0.69 (18) | 4.00 (102) | 9.94 (253) | 12.66 (322) |
9.80 (249) |
Fluid Head
MODEL
|
INLET SUCTION
in (mm) |
OUTLET DISCHARGE
in (mm) |
---|---|---|
C-100
|
1.5 (38)
|
1 (25)
|
"S" Clamp connections only.
NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.
Note: Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.
60 Hz - 1750 RPM Curves:
1.5" x 1" x 3.68" Model C-100 - 60 Hz Pump Curve, 95-07063 || PDF
60 Hz - 3500 RPM Curves:
1.5" x 1" x 3.68" Model C-100 - 60 Hz Pump Curve, 95-07054 || PDF
Model C-114

Unit Width Height
FRAME
|
A
in (mm) |
B in (mm) |
CP
in (mm) |
J
in (mm) |
E
in (mm) |
L
in (mm) |
HD
in (mm) |
X in (mm) |
Y in (mm) |
Z in (mm) |
AA
in (mm) |
AB
in (mm) |
AC in (mm) |
AD in (mm) |
AE in (mm) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
56C
|
6.50 (165)
|
9.49 (241) |
16.34 (415)
|
10.35 (263)
|
2.99 (76)
|
6.22 (158)
|
5.47 (139)
|
3.62 (92) | 1.61 (41) | 2.60 (66) |
0.47 (12)
|
3.23 (82)
|
|||
140TC
|
9.69 (246) | 9.49 (241) | 19.21 (488) | 10.67 (271) | 5.00 (127) | 6.22 (158) | 5.98 (152) | 3.62 (92) | 1.61 (41) | 2.60 (66) | 0.75 (19) | 6.93 (176) | |||
180TC | 11.61 (295) | 11.42 (290) | 22.24 (565) | 13.39 (340) | 5.47 (139) | 6.77 (172) | 6.97 (177) | 3.62 (92) | 1.61 (41) | 2.60 (66) | 0.75 (19) | 7.87 (200) | |||
71-B5/B14 | 4.69 (119) | 7.64 (194) | 17.90 (455) | 9.61 (244) | 3.54 (90) | 6.22 (158) | 5.30 (135) | 3.62 (92) | 1.61 (41) | 2.60 (66) | 0.69 (18) | 4.00 (102) | 9.94 (253) | 12.66 (322) |
9.80 (249) |
80-B5/B14 | 5.69 (145) | 8.50 (216) | 19.44 (494) | 6.43 (163) | 3.94 (100) | 6.78 (172) | 5.65 (144) | 3.62 (92) | 1.61 (41) | 2.60 (66) | 0.88 (22) | 4.51 (115) | 9.94 (253) | 12.66 (322) |
10.00 (254) |
90-B5/B14 | 6.61 (168) | 9.31 (237) | 20.22 (514) | 10.61 (270) | 3.94 (100) | 6.78 (172) | 6.04 (154) | 3.62 (92) | 1.61 (41) | 2.60 (66) | 0.88 (22) | 5.12 (130) | 9.94 (253) | 12.66 (322) |
10.00 (254) |
*AA = Conduit Size
Fluid Head
MODEL
|
SUCTION
in (mm) |
DISCHARGE
in (mm) |
---|---|---|
C-114
|
1.50 (38) or 2.00 (51)
|
1.50 (38)
|
"S" Clamp connections only.
NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.
Note: Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.
60 Hz - 1750 RPM Curves:
1.5" x 1.5" x 4" Model C-114 - 60 Hz Pump Curve, 95-07064 || PDF
2" x 1.5" x 4" Model C-114 - 60 Hz Pump Curve, 95-07065 || PDF
60 Hz - 3500 RPM Curves:
1.5" x 1.5" x 4" Model C-114 - 60 Hz Pump Curve, 95-07055 || PDF
2" x 1.5" x 4" Model C-114 - 60 Hz Pump Curve, 95-07056 || PDF
50 Hz - 1450 RPM Curves:
1.5" x 1.5" x 4" Model C-114 - 50 Hz Pump Curve, 95-07093 || PDF
50 Hz - 2900 RPM Curves:
1.5" x 1.5" x 4" Model C-114 - 50 Hz Pump Curve, 95-07097 || PDF
Model C-216

Unit Width Height
FRAME
|
A
in (mm) |
B in (mm) |
CP
in (mm) |
J
in (mm) |
E
in (mm) |
L
in (mm) |
HD
in (mm) |
X in (mm) |
Y in (mm) |
Z in (mm) |
AA
in (mm) |
AB
in (mm) |
AC in (mm) |
AD in (mm) |
AE in (mm) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
56C
|
6.50 (165) | 9.49 (241) | 16.34 (415) | 10.51 (267) | 2.99 (76) | 6.06 (154) | 5.47 (139) | 5.67 (144) | 1.93 (49) | 3.66 (93) | 0.47 (12) | 3.23 (82) | |||
140TC
|
9.69 (246) | 9.49 (241) | 19.21 (488) | 10.83 (275) | 5.00 (127) | 6.06 (154) | 5.98 (152) | 5.67 (144) | 1.93 (49) | 3.66 (93) | 0.75 (19) | 6.93 (176) | |||
180TC | 11.61 (295) | 11.42 (290) | 22.24 (565) | 12.20 (310) | 5.47 (139) | 6.69 (170) | 6.97 (177) | 5.67 (144) | 1.93 (49) | 3.66 (93) | 0.75 (19) | 7.87 (200) | |||
210TC | 13.11 (333) | 12.91 (328) | 25.79 (655) | 13.94 (354) | 5.98 (152) | 7.80 (198) | 7.72 (196) | 5.67 (144) | 1.93 (49) | 3.66 (93) | 0.75 (19) | 8.86 (225) | |||
250TC | 14.50 (368) | 15.00 (381) | 31.02 (788) | 14.50 (368) | 10.00 (254) | 8.50 (216) | 8.74 (222) | 5.67 (144) | 1.93 (49) | 3.66 (93) | 0.98 (25) | 9.49 (241) | |||
80-B5/B14 | 5.69 (145) | 8.50 (216) | 19.66 (499) | 10.59 (269) | 3.94 (100) | 6.69 (170) | 5.65 (144) | 5.67 (144) | 1.93 (49) | 3.66 (93) | 0.88 (22) | 4.51 (115) | 9.94 (253) | 12.66 (322) |
10.00 (254) |
90-B5/B14 | 6.61 (168) | 9.31 (237) | 20.44 (519) | 10.83 (275) | 3.94 (100) | 6.69 (170) | 6.04 (154) | 5.67 (144) | 1.93 (49) | 3.66 (93) | 0.88 (22) | 5.12 (130) | 9.94 (253) | 12.66 (322) |
10.00 (254) |
100-B5/B14 | 7.87 (200) | 10.41 (264) | 23.28 (591) | 12.23 (311) | 5.51 (140) | 7.81 (198) | 6.44 (164) | 5.67 (144) | 1.93 (49) | 3.66 (93) | 1.06 (27) | 5.87 (149) | 12.11 (308) | 15.53 (394) | 12.20 (310) |
112-B5/B14 | 7.87 (200) | 10.94 (278) | 23.28 (591) | 12.56 (319) | 5.51 (140) | 7.81 (198) | 6.91 (176) | 5.67 (144) | 1.93 (49) | 3.66 (93) | 1.06 (27) | 7.37 (187) | 14.27 (363) | 19.00 (483) | 14.20 (361) |
132-B5/B14 | 9.56 (243) | 12.56 (319) | 30.26 (769) | 13.94 (354) | 5.51 (140) | 8.50 (216) | 7.70 (196) | 5.67 (144) | 1.93 (49) | 3.66 (93) | 1.06 (27) | 7.38 (187) | 14.27 (363) | 19.00 (483) | 14.20 (361) |
*AA = Conduit Size
Fluid Head
MODEL
|
SUCTION
in (mm) |
DISCHARGE
in (mm) |
---|---|---|
C-216
|
2 (51) or 2.5 (63)
|
1.5 (38)
|
"S" Clamp connections only.
NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.
60 Hz - 1750 RPM Curves:
2" x 1.5" x 6" Model C-216 - 60 Hz Pump Curve, 95-07066 || PDF
2.5" x 1.5" x 6" Model C-216 - 60 Hz Pump Curve, 95-07067 || PDF
60 Hz - 3500 RPM Curves:
2" x 1.5" x 6" Model C-216 - 60 Hz Pump Curve, 95-07057 || PDF
2.5" x 1.5" x 6" Model C-216 - 60 Hz Pump Curve, 95-07058 || PDF
50 Hz - 1450 RPM Curves:
2" x 1.5" x 6" Model C-216 - 50 Hz Pump Curve, 95-07094 || PDF
50 Hz - 2900 RPM Curves:
2" x 1.5" x 6" Model C-216 - 50 Hz Pump Curve, 95-07098 || PDF
Model C-218

Unit Width Height
FRAME
|
A
in (mm) |
B in (mm) |
CP
in (mm) |
J
in (mm) |
E
in (mm) |
L
in (mm) |
HD
in (mm) |
X in (mm) |
Y in (mm) |
Z in (mm) |
AA
in (mm) |
AB
in (mm) |
AC in (mm) |
AD in (mm) |
AE in (mm) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
140TC
|
9.69 (246) | 9.49 (241) | 19.21 (488) | 10.98 (279) | 5.00 (127) | 6.30 (160) | 5.98 (152) | 5.47 (139) | 1.93 (49) | 4.72 (120) | 0.75 (19) | 6.93 (176) | |||
180TC
|
11.61 (295) | 11.42 (290) | 22.24 (565) | 12.28 (312) | 5.00 (127) | 6.93 (176) | 6.97 (177) | 5.47 (139) | 1.93 (49) | 4.72 (120) | 0.75 (19) | 7.87 (200) | |||
210TC | 13.11 (333) | 12.91 (328) | 25.79 (655) | 13.27 (337) | 5.98 (152) | 7.28 (185) | 7.72 (196) | 5.47 (139) | 1.93 (49) | 4.72 (120) | 0.75 (19) | 8.86 (225) | |||
250TC | 14.49 (368) | 15.00 (381) | 31.02 (788) | 14.65 (372) | 10.00 (254) | 8.19 (208) | 8.74 (222) | 5.47 (139) | 1.93 (49) | 4.72 (120) | 0.98 (25) | 9.49 (241) | |||
280TC | 20.63 (524) | 17.28 (439) | 32.24 (819) | 15.28 (388) | 10.98 (279) | 8.82 (224) | 9.49 (241) | 5.47 (139) | 1.93 (49) | 4.72 (120) | 1.97 (50) | 13.11 (333) | |||
280TSC | 18.58 (472) | 16.30 (414) | 31.93 (811) | 15.28 (388) | 10.98 (279) | 8.82 (224) | 9.49 (241) | 5.47 (139) | 1.93 (49) | 4.72 (120) | 1.97 (50) | 12.20 (310) | |||
80-B5/B14 | 5.69 (145) | 8.50 (216) | 19.91 (506) | 10.84 (275) | 3.94 (100) | 6.94 (176) | 5.65 (144) | 5.47 (139) | 1.93 (49) | 4.72 (120) | 0.88 (22) | 4.51 (115) | 9.94 (253) | 12.66 (322) |
10.00 (254) |
90-B5/B14 | 6.61 (168) | 9.31 (237) | 20.69 (526) | 11.08 (281) | 3.94 (100) | 6.94 (176) | 6.04 (154) | 5.47 (139) | 1.93 (49) | 4.72 (120) | 0.88 (22) | 5.12 (130) | 9.94 (253) | 12.66 (322) |
10.00 (254) |
100-B5/B14 | 7.87 (200) | 10.41 (264) | 22.78 (579) | 11.73 (298) | 5.51 (140) | 7.31 (186) | 6.44 (164) | 5.47 (139) | 1.93 (49) | 4.72 (120) | 1.06 (27) | 5.87 (149) | 12.11 (308) | 15.53 (395) | 12.20 (310) |
112-B5/B14 | 7.87 (200) | 10.94 (278) | 22.78 (579) | 12.06 (306) | 5.51 (140) | 7.31 (186) | 6.91 (176) | 5.47 (139) | 1.93 (49) | 4.72 (120) | 1.06 (27) | 5.87 (149) | 14.27 (363) | 19.00 (483) | 14.20 (361) |
132-B5/B14 | 9.56 (243) | 12.56 (319) | 29.95 (761) | 13.63 (346) | 5.51 (140) | 8.19 (208) | 7.70 (196) | 5.47 (139) | 1.93 (49) | 4.72 (120) | 1.06 (27) | 7.37 (187) | 14.27 (363) | 19.00 (483) | 14.20 (361) |
160-B5/B14 | 12.94 (329) | 15.44 (392) | 32.66 (830) | 15.88 (403) | 8.27 (210) | 9.69 (246) | 8.80 (224) | 5.47 (139) | 1.93 (49) | 4.72 (120) | 1.38 (35) | 9.51 (242) | 19.00 (483) | 27.11 (689) | 18.50 (470) |
*AA = Conduit Size
Fluid Head
MODEL
|
SUCTION
in (mm) |
DISCHARGE
in (mm) |
---|---|---|
C-218
|
2.00 (51) or 3.00 (76)
|
1.50 (38)
|
"S" Clamp connections only.
NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.
Note: Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.
60 Hz - 1750 RPM Curves:
2" x 1.5" x 8" Model C-218 - 60 Hz Pump Curve, 95-07068 || PDF
3" x 1.5" x 8" Model C-218 - 60 Hz Pump Curve, 95-07069 || PDF
60 Hz - 3500 RPM Curves:
2" x 1.5" x 8" Model C-218 - 60 Hz Pump Curve, 95-07059 || PDF
3" x 1.5" x 8" Model C-218 - 60 Hz Pump Curve, 95-07060 || PDF
50 Hz - 1450 RPM Curves:
2" x 1.5" x 8" Model C-218 - 50 Hz Pump Curve, 95-07095 || PDF
50 Hz - 2900 RPM Curves:
2" x 1.5" x 8" Model C-218 - 50 Hz Pump Curve, 95-07099 || PDF
Model C-328

Unit Width Height
FRAME
|
A
in (mm) |
B in (mm) |
CP
in (mm) |
J
in (mm) |
E
in (mm) |
L
in (mm) |
HD
in (mm) |
X in (mm) |
Y in (mm) |
Z in (mm) |
AA
in (mm) |
AB
in (mm) |
AC in (mm) |
AD in (mm) |
AE in (mm) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
180TC
|
11.61 (295) | 11.42 (290) | 22.24 (565) | 12.28 (312) | 5.00 (127) | 6.93 (176) | 6.97 (177) | 5.47 (139) | 2.24 (57) | 4.72 (120) | 0.75 (19) | 7.87 (200) | |||
210TC | 13.11 (333) | 12.91 (328) | 25.79 (655) | 13.27 (337) | 5.98 (152) | 7.28 (185) | 7.72 (196) | 5.47 (139) | 2.24 (57) | 4.72 (120) | 0.75 (19) | 8.86 (225) | |||
250TC | 14.49 (368) | 15.00 (381) | 31.02 (788) | 14.65 (372) | 10.00 (254) | 8.19 (208) | 8.74 (222) | 5.47 (139) | 2.24 (57) | 4.72 (120) | 0.98 (25) | 9.49 (241) | |||
280TC | 20.63 (524) | 17.28 (439) | 32.56 (827) | 15.93 (396) | 10.98 (279) | 8.82 (224) | 9.49 (241) | 5.47 (139) | 2.24 (57) | 4.72 (120) | 1.97 (50) | 13.11 (333) | |||
280TSC | 18.58 (472) | 16.30 (414) | 32.24 (819) | 15.93 (396) | 10.98 (279) | 8.82 (224) | 9.49 (241) | 5.47 (139) | 2.24 (57) | 4.72 (120) | 1.97 (50) | 12.20 (310) | |||
320TC | 23.11 (587) | 20.98 (533) | 35.43 (900) | 17.13 (435) | 11.97 (304) | 9.69 (246) | 10.47 (266) | 5.47 (139) | 2.24 (57) | 4.72 (120) | 1.97 (50) | 14.09 (358) | |||
320TSC | 23.11 (587) | 20.98 (533) | 35.43 (900) | 17.13 (435) | 11.97 (304) | 9.69 (246) | 10.47 (266) | 5.47 (139) | 2.24 (57) | 4.72 (120) | 1.97 (50) | 14.09 (358) | |||
80-B5/B14 | 12.94 (329) | 15.44 (392) | 32.66 (830) | 15.88 (403) | 8.27 (210) | 9.69 (246) | 8.80 (224) | 5.47 (139) | 2.24 (57)) | 4.72 (120) | 1.38 (35) | 9.51 (242) | 19.00 (483) | 27.11 (689) | 18.50 (470) |
90-B5/B14 | 6.61 (168) | 9.31 (237) | 21.00 (533) | 11.39 (289) | 3.94 (100) | 6.94 (176) | 6.94 (176) | 5.47 (139) | 2.24 (57) | 4.72 (120) | 0.88 (22) | 5.12 (130) | 5.12 (130) | 12.66 (322) |
10.00 (254) |
100-B5/B14 | 7.87 (200) | 10.41 (264) | 23.09 (587) | 12.04 (306) | 5.51 (140) | 7.31 (186) | 6.44 (164) | 5.47 (139) | 2.24 (57) | 4.72 (120) | 1.06 (27) | 5.87 (149) | 12.11 (308) | 15.53 (395) | 12.20 (310) |
112-B5/B14 | 7.87 (200) | 10.94 (278) | 23.09 (587) | 12.37 (314) | 5.51 (140) | 7.31 (186) | 6.91 (176) | 5.47 (139) | 2.24 (57) | 2.24 (57) | 1.06 (27) | 5.87 (149) | 14.27 (363) | 19.00 (483) | 14.21 (361) |
132-B5/B14 | 9.56 (243) | 12.56 (319) | 30.26 (769) | 13.94 (354) | 5.51 (140) | 8.19 (208) | 7.70 (196) | 5.47 (139) | 2.24 (57) | 4.72 (120) | 1.06 (27) | 7.37 (187) | 14.27 (363) | 19.00 (483) | 14.20 (361) |
160-B5/B14 | 12.94 (329) | 15.44 (392) | 32.97 (837) | 16.19 (411) | 8.27 (210) | 9.69 (246) | 8.80 (224) | 5.47 (139) | 2.24 (57) | 4.72 (120) | 1.37 (35) | 9.51 (242) | 19.00 (483) | 27.11 (689) | 18.50 (470) |
180-B5/B14 | 15.56 (395) | 17.14 (435) | 35.14 (893) | 16.70 (424) | 9.49 (241) | 9.69 (246) | 9.59 (244) | 5.47 (139) | 2.24 (57) | 4.72 (120) | 2.01 (51) | 13.12 (333) |
*AA = Conduit Size
Fluid Head
MODEL
|
SUCTION
in (mm) |
DISCHARGE
in (mm) |
---|---|---|
C-328
|
3.00 (76) or 4.00 (102)
|
2.00 (51)
|
"S" Clamp connections only.
NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.
Note: Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.
60 Hz - 1750 RPM Curves:
3" x 2" x 8" Model C-328 - 60 Hz Pump Curve, 95-07070 || PDF
4" x 2" x 8" Model C-328 - 60 Hz Pump Curve, 95-07071 || PDF
60 Hz - 3500 RPM Curves:
3" x 2" x 8" Model C-328 - 60 Hz Pump Curve, 95-07061 || PDF
4" x 2" x 8" Model C-328 - 60 Hz Pump Curve, 95-07062 || PDF
50 Hz - 1450 RPM Curves:
3" x 2" x 8" Model C-328 - 50 Hz Pump Curve, 95-07096 || PDF
50 Hz - 2900 RPM Curves:
3" x 2" x 8" Model C-328 - 50 Hz Pump Curve, 95-07100 || PDF
Impeller Options
Pin Impeller Design
No tools required for standard maintenance

- Pinned Stub Shaft
- Pin
Sealed Impeller Design
- Improved concentricity reduces vibration
- Encapsulated dome nut eliminates wear between impeller and shaft
- Same seal options as pinned pump
- Retro kits available - EPDM and FKM elastomers standard
- More suitable design for challenging applications

- Collar
- Threaded Stub Shaft
- O-ring
- Impeller
- O-ring
- Nut
Seal Options
Available for both pinned and sealed impeller designs.
![]() |
![]() |
![]() |
![]() |
Type D This versatile, dependable seal finds broad use in sanitary and industrial applications. Seal material is carbon rotating on the stationary stainless steel. |
Type DG This seal is ideal for applications where resistance to corrosion is required or for abrasive or non-lubricating products. The DG utilizes Type D rotating seal components; however, the stationary seal seat material is silicon carbide, and is reversible for extended seat life. |
Type E This double mechanical seal can be pressurized with a flush media and discharged to drain. Ideal for vacuum, high temperature, abrasive or non-lubricating applications. |
Type F When Seal Type D applications include product temperatures that reach 212°F (100°C.) or vacuum over 14” Hg (355mm Hg), seal Type F is the choice. It includes the addition of a water cascading assembly that continually flushes the seal area. |
Accessories
Wave Spring
- Wave spring maintains uniform loading on seal faces for longer seal service

Downloads
C-Series - Model C-100 - 1.5" x 1" x 3.68" - 1750 RPM - 60 Hz - 95-07063
C-Series - Model C-100 - 1.5" x 1" x 3.68" - 3500 RPM - 60 Hz - 95-07054
C-Series - Model C-114 - 1.5" x 1.5" x 4" - 1450 RPM - 50 Hz - 95-07093
C-Series - Model C-114 - 1.5" x 1.5" x 4" - 1750 RPM - 60 Hz - 95-07064
C-Series - Model C-114 - 2" x 1.5" x 4" - 1750 RPM - 60 Hz - 95-07065
C-Series - Model C-114 - 1.5" x 1.5" x 4" - 2900 RPM - 50 Hz - 95-07097
C-Series - Model C-114 - 1.5" x 1.5" x 4" - 3500 RPM - 60 Hz - 95-07055
C-Series - Model C-114 - 2" x 1.5" x 4" - 3500 RPM - 60 Hz - 95-07056
C-Series - Model C-216 - 2" x 1.5" x 6" - 1450 RPM - 50 Hz - 95-07094
C-Series - Model C-216 - 2" x 1.5" x 6" - 1750 RPM - 60 Hz - 95-07066
C-Series - Model C-216 - 2.5" x 1.5" x 6" - 1750 RPM - 60 Hz - 95-07067
C-Series - Model C-216 - 2" x 1.5" x 6" - 2900 RPM - 50 Hz - 95-07098
C-Series - Model C-216 - 2" x 1.5" x 6" - 3500 RPM - 60 Hz - 95-07057
C-Series - Model C-216 - 2.5" x 1.5" x 6" - 3500 RPM - 60 Hz - 95-07058
C-Series - Model C-218 - 2" x 1.5" x 8" - 1450 RPM - 50 Hz - 95-07095
C-Series - Model C-218 - 2" x 1.5" x 8" - 1750 RPM - 60 Hz - 95-07068
C-Series - Model C-218 - 3" x 1.5" x 8" - 1750 RPM - 60 Hz - 95-07069
C-Series - Model C-218 - 2" x 1.5" x 8" - 2900 RPM - 50 Hz - 95-07099
C-Series - Model C-218 - 2" x 1.5" x 8" - 3500 RPM - 60 Hz - 95-07059
C-Series - Model C-218 - 3" x 1.5" x 8" - 3500 RPM - 60 Hz - 95-07060
C-Series - Model C-328 - 3" x 2" x 8" - 1450 RPM - 50 Hz - 95-07096
C-Series - Model C-328 - 3" x 2" x 8" - 1750 RPM - 60 Hz - 95-07070
C-Series - Model C-328 - 4" x 2" x 8" - 1750 RPM - 60 Hz - 95-07071
C-Series - Model C-328 - 3" x 2" x 8" - 2900 RPM - 50 Hz - 95-07100
C-Series - Model C-328 - 3" x 2" x 8" - 3500 RPM - 60 Hz - 95-07061
C-Series - Model C-328 - 4" x 2" x 8" - 3500 RPM - 60 Hz - 95-07062
.5hp Motor
C-Series - Model C-100 .5hp 56C 1.5 x 1 S-Line STEP
.75hp Motor
C-Series - Model C-100 .75hp 56C 1.5 x 1 S-Line STEP
1hp Motor
C-Series - Model C-100 1hp 56C 1.5 x 1 S-Line STEP
C-Series - Model C-100 1hp 143TC 1.5 x 1 S-Line STEP
1.5hp Motor
C-Series - Model C-100 1.5hp 56C 1.5 x 1 S-Line STEP
.5hp Motor
C-Series Model C-114 .5hp 56C 1.5 x 1.5 S-Line STEP
C-Series Model C-114 .5hp 56C 2 x 1.5 S-Line STEP
.75hp Motor
C-Series Model C-114 .75hp 56C 1.5 x 1.5 S-Line STEP
C-Series Model C-114 .75hp 56C 2 x 1.5 S-Line STEP
1hp Motor
C-Series Model C-114 1hp 56C 1.5 x 1.5 S-Line STEP
C-Series Model C-114 1hp 56C 2 x 1.5 S-Line STEP
C-Series Model C-114 1hp 143TC 1.5 x 1.5 S-Line STEP
C-Series Model C-114 1hp 143TC 2 x 1.5 S-Line STEP
1.5hp Motor
C-Series Model C-114 1.5hp 56C 1.5 x 1.5 S-Line STEP
C-Series Model C-114 1.5hp 56C 2 x 1.5 S-Line STEP
C-Series Model C-114 1.5hp 145TC 1.5 x 1.5 S-Line STEP
C-Series Model C-114 1.5hp 145TC 2 x 1.5 S-Line STEP
2hp Motor
C-Series Model C-114 2hp 145TC 1.5 x 1.5 S-Line STEP
C-Series Model C-114 2hp 145TC 2 x 1.5 S-Line STEP
3hp Motor
C-Series Model C-114 3hp 145TC 1.5 x 1.5 S-Line STEP
C-Series Model C-114 3hp 145TC 2 x 1.5 S-Line STEP
C-Series Model C-114 3hp 182TC 1.5 x 1.5 S-Line STEP
5hp Motor
.5hp Motor
C-Series Model C-216 .5hp 56C 2 x 1.5 S-Line STEP
C-Series Model C-216 .5hp 56C 2.5 x 1.5 S-Line STEP
.75hp Motor
C-Series Model C-216 .75hp 56C 2 x 1.5 S-Line STEP
C-Series Model C-216 .75hp 56C 2.5 x 1.5 S-Line STEP
1hp Motor
C-Series Model C-216 1hp 56C 2 x 1.5 S-Line STEP
C-Series Model C-216 1hp 56C 2.5 x 1.5 S-Line STEP
C-Series Model C-216 1hp 143TC 2 x 1.5 S-Line STEP
C-Series Model C-216 1hp 143TC 2.5 x 1.5 S-Line STEP
1.5hp Motor
C-Series Model C-216 1.5hp 56C 2 x 1.5 S-Line STEP
C-Series Model C-216 1.5hp 56C 2.5 x 1.5 S-Line STEP
C-Series Model C-216 1.5hp 145TC 2 x 1.5 S-Line STEP
C-Series Model C-216 1.5hp 145TC 2.5 x 1.5 S-Line STEP
2hp Motor
C-Series Model C-216 2hp 145TC 2 x 1.5 S-Line STEP
C-Series Model C-216 2hp 145TC 2.5 x 1.5 S-Line STEP
3hp Motor
C-Series Model C-216 3hp 145TC 2 x 1.5 S-Line STEP
C-Series Model C-216 3hp 145TC 2.5 x 1.5 S-Line STEP
C-Series Model C-216 3hp 182TC 2 x 1.5 S-Line STEP
C-Series Model C-216 3hp 182TC 2.5 x 1.5 S-Line STEP
5hp Motor
C-Series Model C-216 5hp 182TC 2 x 1.5 S-Line STEP
C-Series Model C-216 5hp 182TC 2.5 x 1.5 S-Line STEP
7.5hp Motor
C-Series Model C-216 7.5hp 213TC 2 x 1.5 S-Line STEP
C-Series Model C-216 7.5hp 213TC 2.5 x 1.5 S-Line STEP
10hp Motor
C-Series Model C-216 10hp 215TC 2 x 1.5 S-Line STEP
C-Series Model C-216 10hp 215TC 2.5 x 1.5 S-Line STEP
15hp Motor
1.5hp Motor
C-Series Model C-218 1.5hp 145TC 2 x 1.5 S-Line STEP
C-Series Model C-218 1.5hp 145TC 3 x 1.5 S-Line STEP
2hp Motor
C-Series Model C-218 2hp 145TC 2 x 1.5 S-Line STEP
C-Series Model C-218 2hp 145TC 3 x 1.5 S-Line STEP
3hp Motor
C-Series Model C-218 3hp 182TC 2 x 1.5 S-Line STEP
C-Series Model C-218 3hp 182TC 3 x 1.5 S-Line STEP
5hp Motor
C-Series Model C-218 5hp 184TC 2 x 1.5 S-Line STEP
C-Series Model C-218 5hp 184TC 3 x 1.5 S-Line STEP
7.5hp Motor
C-Series Model C-218 7.5hp 213TC 2 x 1.5 S-Line STEP
C-Series Model C-218 7.5hp 213TC 3 x 1.5 S-Line STEP
10hp Motor
C-Series Model C-218 10hp 215TC 2 x 1.5 S-Line STEP
C-Series Model C-218 10hp 215TC 3 x 1.5 S-Line STEP
15hp Motor
C-Series ModelC-218 15hp 215TC 2 x 1.5 S-Line STEP
C-Series Model C-218 15hp 215TC 3 x 1.5 S-Line STEP
20hp Motor
C-Series Model C-218 20hp 254TC 2 x 1.5 S-Line STEP
C-Series Model C-218 20hp 254TC 3 x 1.5 S-Line STEP
25hp Motor
C-Series Model C-218 25hp 284TSC 2 x 1.5 S-Line STEP
C-Series Model C-218 25hp 284TSC 3 x 1.5 S-Line STEP
30hp Motor
3hp Motor
C-Series Model C-328 3hp 182TC 3 x 2 S-Line STEP
C-Series Model C-328 3hp 182TC 4 x 2 S-Line STEP
5hp Motor
C-Series Model C-328 5hp 184TC 3 x 2 S-Line STEP
C-Series Model C-328 5hp 184TC 4 x 2 S-Line STEP
7.5hp Motor
C-Series Model C-328 7.5hp 213TC 3 x 2 S-Line STEP
C-Series Model C-328 7.5hp 213TC 4 x 2 S-Line STEP
10hp Motor
C-Series ModelC-328 10hp 215TC 3 x 2 S-Line STEP
C-Series Model C-328 10hp 215TC 4 x 2 S-Line STEP
15hp Motor
C-Series Model C-328 15hp 215TC 3 x 2 S-Line STEP
C-Series Model C-328 15hp 215TC 4 x 2 S-Line STEP
20hp Motor
C-Series Model C-328 20hp 256TC 3 x 2 S-Line STEP
C-Series Model C-328 20hp 256TC 4 x 2 S-Line STEP
25hp Motor
C-Series Model C-328 25hp 284TSC 3 x 2 S-Line STEP
C-Series Model C-328 25hp 284TSC 4 x 2 S-Line STEP
30hp Motor
C-Series Model C-328 30hp 286TSC 3 x 2 S-Line STEP
C-Series Model C-328 30hp 286TSC 4 x 2 S-Line STEP
40hp Motor
C-Series Model C-328 40hp 324TSC 3 x 2 S-Line STEP
C-Series Model C-328 40hp 324TSC 4 x 2 S-Line STEP
50hp Motor
