Kombinator 250

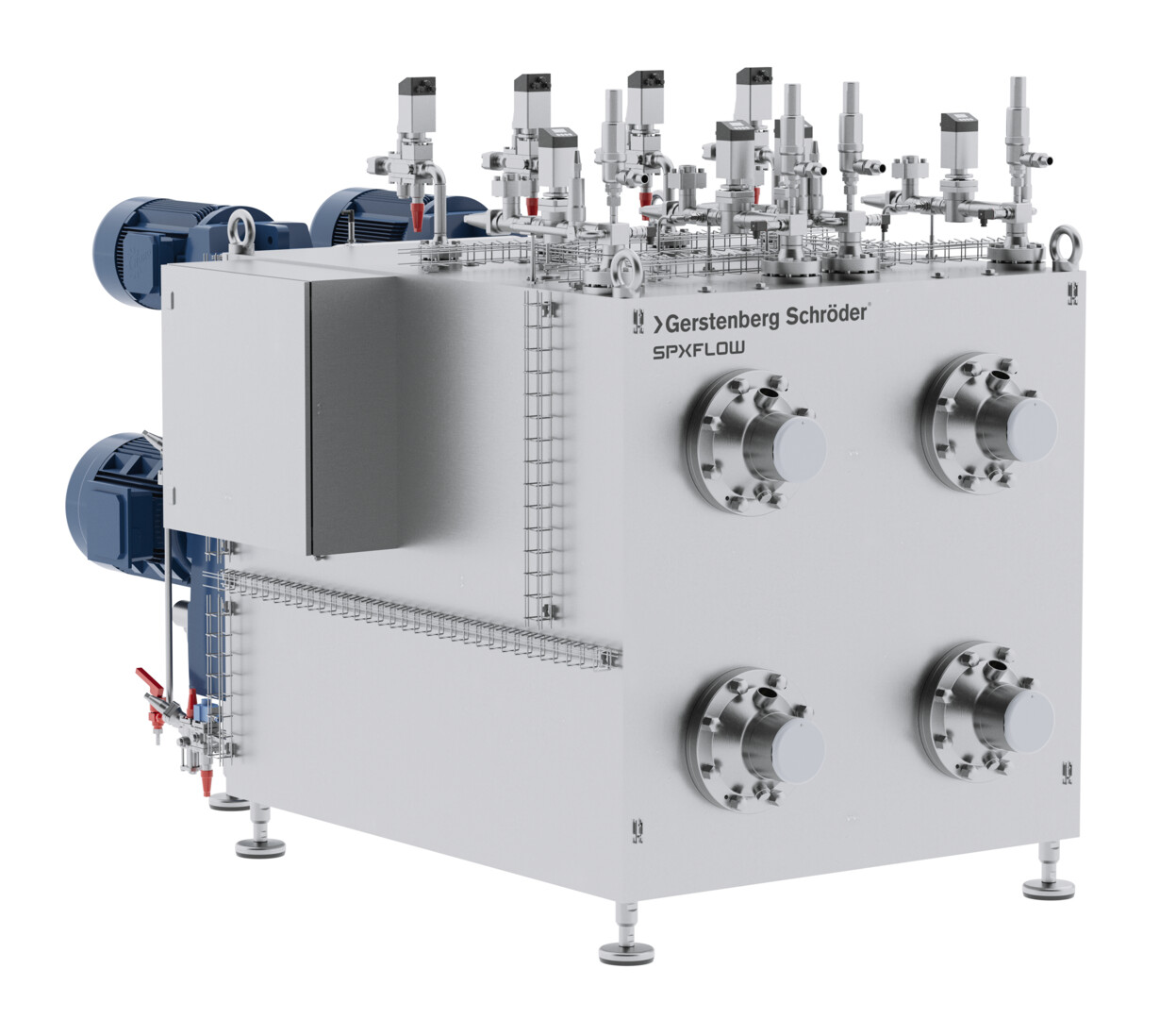

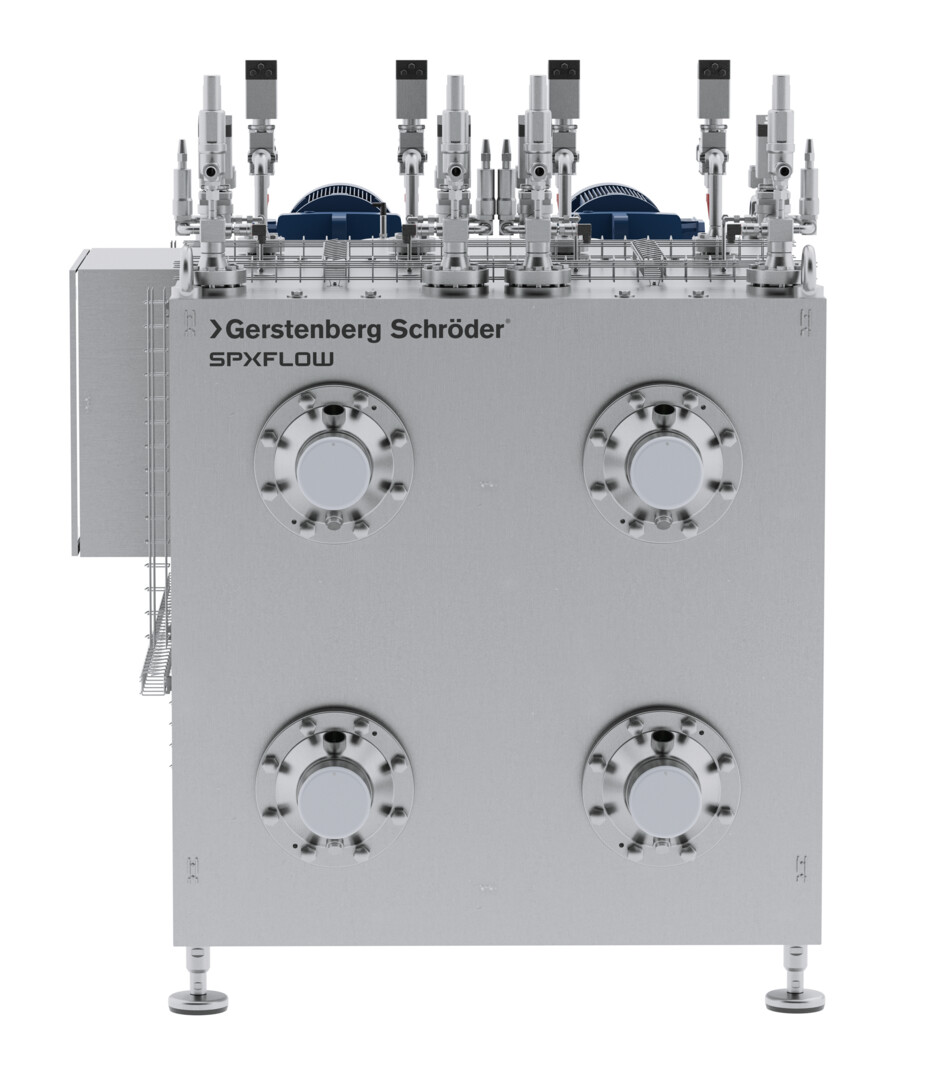

The Gerstenberg Schröder Kombinator® 250 Scraped Surface Heat Exchanger is a high-pressure SSHE designed for the crystallization and cooling of edible fats and oils, including margarine, shortening and other yellow fat applications. It combines stable product performance with low energy use and offers future-ready CO₂ refrigeration compatibility. Depending on configuration, it supports capacities up to 16,000 kg/h for shortening.

  • Refrigeration:

    NH₃ or CO₂

  • Design pressure (product side):

    Up to 120 bar

  • Capacity:

    Up to 16,000 kg/h (shortening)

  • Temperature range:

    –30 °C to +120 °C

  • Configuration:

    1–4 chilling tubes with independent drives

  • Compliance:

    EHEDG, PED, EN, CE

Technical Data

Specification 250S-C/A 250S-2 C/A 250S-3 C/A 250S-4 C/A 250L-C/A 250L-2 C/A 250L-3 C/A 250L-4 C/A
Nominal Capacity – Puff Pastry Margarine (kg/h) NA 2,000 3,000 4,000 NA 2,800 4,200 5,600
Nominal Capacity – Table Margarine (kg/h) 1,900 3,800 5,700 7,600 2,700 5,400 8,100 10,800
Nominal Capacity – Shortening (kg/h) 2,800 5,600 8,400 11,200 4,000 8,000 12,000 16,000
Number of Refrigerant Circuits 1 2 3 4 1 2 3 4
Motors for Puff Pastry Margarine (kW) NA 30+55 30+37+55 22+30+45+55 NA 45+75 37+45+75 30+37+55+75
Motors for Table Margarine (kW) 22 22+22 15+22+22 15+22+22+22 30 22+30 22+30+30 22+22+30+30
Motors for Shortening (kW) 22 22+22 15+22+22 15+22+22+22 30 22+30 22+30+30 22+22+30+30
Number of Gear Boxes 1 2 3 4 1 2 3 4
Cooling Surface per Tube (m²) 1.05 1.05 1.05 1.05 1.5 1.5 1.5 1.5
Annual Space (mm) 11 11 11 11 11 11 11 11
CO₂ Capacity at -10°C (kW) 80/85 125/160/170 188/240/255 250/320/340 110/120 175/220/240 263/330/360 350/440/480
NH₃ Capacity at -20°C (kW) 80/85 125/160/170 188/240/255 250/320/340 110/120 175/220/240 263/330/360 350/440/480
Max. Working Pressure – Media Side NH₃/CO₂ (bar) 17/50 17/50 17/50 17/50 17/50 17/50 17/50 17/50
Max. Working Pressure – Product Side (bar) 120 120 120 120 120 120 120 120
Min. Working Temperature (°C) -30 -30 -30 -30 -30 -30 -30 -30
Machine Weight (kg) 1,600 3,300 5,000 6,600 2,100 4,300 6,400 8,500

Kombinator is one of the first Scraped Surface Heat Exchangers (SSHE) for margarine and shortening in the market and with the actual design-update remains the benchmark for long-term reliability, energy efficiency and flexibility.

CO₂ refrigeration is supported by the new Kombinator 250 CO₂ design. Existing SSHEs cannot be retrofitted and would require replacement to use CO₂.

With the new Kombinator 250, producers typically see short ROI through energy savings, reduced downtime and lower maintenance costs.

Yes. It is designed according to PED and EHEDG principles, supports CIP and is CE-marked.

CO₂ refrigeration and the optimized heat-transfer tubes improve cooling efficiency and may reduce energy use by up to 20 percent.

Margarine, shortening, puff pastry fats, spreads, bakery fats and other high-viscosity fat-based applications.

Floating turbo scrapers maintain continuous contact with cooled surfaces, helping ensure uniform crystallization and consistent texture.

Top-mounted connections, a stand-alone rotor-heating module and flangeless tubes simplify access and reduce downtime.

We offer global service, genuine spare parts, modernization support, operator training and Innovation Center trials.
