C-Series - Centrifugal Pumps

Product Type:
Pumps / Centrifugal Pumps

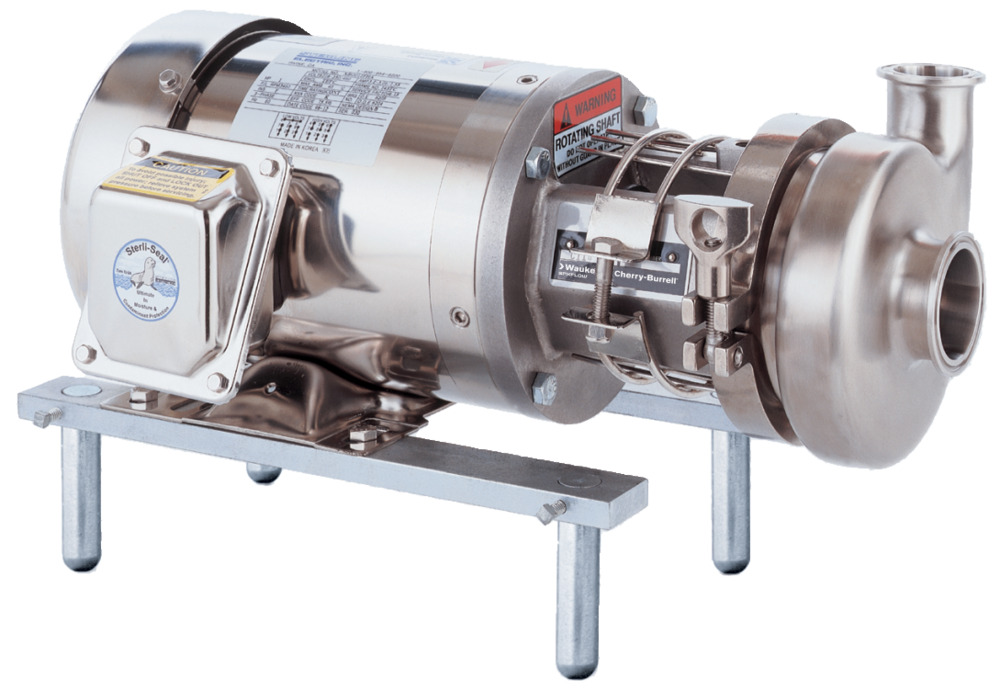

The versatile C-Series close-coupled pump replaces the Puriti C-Series pump...

We Are Here to Help

Find your local representatives within your region for product inquiries.
Where To Buy
Features

This pump offers strong performance and competitive price/value within the lower spectrum of heavy-duty, centrifugal pump applications. It can be installed in a series without fear of seal failure from elevated inlet pressures, even with viscous products.

  • Hydraulic balancing reduces pressure at sealing surface for less wear, greater efficiency
  • Easy-cleaning, open type impeller delivers smooth pumping performance
  • Enlarged inlets available for larger suction lines
  • Standard CIP capability
  • Pump and parts are interchangeable with other C-Series brands



Specifications

MODEL

INLET

OUTLET

MAXIMUM IMPELLER SIZE

MAXIMUM CAPACITY
MAXIMUM HEAD
1750 RPM
3500 RPM
1750 RPM
3500 RPM
C100
1½"
(38mm)
1"
(25mm)
3.68"
(93mm)
33 GPM
(7 m³/hr.)
73 GPM
(17 m³/hr.)
17 ft.
(5 m)
55 ft.
(17 m)
C114
1½"
(38mm)
1½"
(38mm)
4.00"
(102mm)
74 GPM
(17 m³/hr.)
148 GPM
(34 m³/hr.)
18 ft.
(5 m)
74 ft.
(23 m)
C114
2"
(51mm)
1½"
(38mm)
4.00"
(102mm)
84 GPM
(19 m³/hr.)
180 GPM
(41 m³/hr.)
17 ft.
(5 m)
69 ft.
(21 m)
C216
2"
(51mm)
1½"
(38mm)
6.00"
(152mm)
145 GPM
(33 m³/hr.)
280 GPM
(64 m³/hr.)
42 ft.
(13 m)
169 ft.
(52 m)
C216
2½"
(64mm)
1½"
(38mm)
6.00"
(152mm)
168 GPM
(38 m³/hr.)
280 GPM
(64 m³/hr.)
42 ft.
(13 m)
169 ft.
(52 m)
C218
2"
(51mm)
1½"
(38mm)
8.00"
(203mm)
217 GPM
(49 m³/hr.)
300 GPM
(68 m³/hr.)
78 ft.
(23 m)
317 ft.
(97 m)
C218
3"
(76mm)
1½"
(38mm)
8.00"
(203mm)
230 GPM
(52 m³/hr.)
305 GPM
(69 m³/hr.)
76 ft.
(23 m)
305 ft.
(93 m)
C328
3"
(76mm)
2"
(51mm)
8.00"
(203mm)
416 GPM
(94 m³/hr.)
635 GPM
(144 m³/hr.)
74 ft.
(23 m)
304 ft.
(93 m)
C328
4"
(102mm)
2"
(51mm)
8.00"
(203mm)
460 GPM
(104 m³/hr.)
900 GPM
(204 m³/hr.)
74 ft.
(23 m)
313 ft.
(95 m)
Dimensions

Model C-100

Unit Width Height

FRAME
A
in (mm)
AA
in (mm)
AB
in (mm)
CP
in (mm)
D
in (mm)
E
in (mm)
L
in (mm)
O
in (mm)
56C
7.34 (186)
0.75 (19)
--
15.00 (381)
3.50 (89)
3.00 (76)
2.76 (70)
6.88 (175)
143TC
7.41 (188)
0.75 (19)
--
15.19 (386)
3.50 (89)
4.00 (102)
3.76 (96)
6.88 (175)

Fluid Head


MODEL
INLET SUCTION
in (mm)
OUTLET DISCHARGE
in (mm)
X
in (mm)
Y
in (mm)
Z
in (mm)
C-100
1.5 (38)
1 (25)
3.50 (89)
1.55 (39)
1.45 (37)

"S" Clamp connections only.

NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.

Note: Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

60 Hz - 1750 RPM Curves:

1.5" x 1" x 3.68" Model C-100 - 60 Hz Pump Curve, 95-07063 PDF || PDF

60 Hz - 3500 RPM Curves:

1.5" x 1" x 3.68" Model C-100 - 60 Hz Pump Curve, 95-07054 PDF || PDF


Model C-114

Unit Width Height

FRAME
A
in (mm)
*AA
in (mm)
AB
in (mm)
CP
in (mm)
D
in (mm)
E
in (mm)
J
in (mm)
L
in (mm)
O
in (mm)
56C
7.34 (186)
0.75 (19)
--
18.64 (473)
3.50 (89)
3.00 (76)
10.38 (264)
6.22 (158)
6.88 (175)
140TC
7.81 (198)
0.75 (19)
--
19.08 (485)
3.50 (89)
5.00 (127)
10.69 (272)
6.22 (158)
6.88 (175)
182TC
12.19 (310)
1.00 (25)
7.13 (181)
22.06 (560)
4.50 (114)
5.50 (140)
12.00 (305)
6.78 (172)
8.69 (221)

*AA = Conduit Size

Fluid Head

MODEL
SUCTION
in (mm)
DISCHARGE
in (mm)
X
in (mm)
Y
in (mm)
Z
in (mm)
C-114
1.50 (38) or 2.00 (51)
1.50 (38)
3.63 (92)
1.59 (40)
2.63 (67)

"S" Clamp connections only.

NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.

Note: Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

60 Hz - 1750 RPM Curves:

1.5" x 1.5" x 4" Model C-114 - 60 Hz Pump Curve, 95-07064 PDF || PDF

2" x 1.5" x 4" Model C-114 - 60 Hz Pump Curve, 95-07065 PDF || PDF

60 Hz - 3500 RPM Curves:

1.5" x 1.5" x 4" Model C-114 - 60 Hz Pump Curve, 95-07055 PDF || PDF

2" x 1.5" x 4" Model C-114 - 60 Hz Pump Curve, 95-07056 PDF || PDF

50 Hz - 1450 RPM Curves:

1.5" x 1.5" x 4" Model C-114 - 50 Hz Pump Curve, 95-07093 PDF || PDF

50 Hz - 2900 RPM Curves:

1.5" x 1.5" x 4" Model C-114 - 50 Hz Pump Curve, 95-07097 PDF || PDF



Model C-216

Unit Width Height

FRAME
A
in (mm)
AA
in (mm)
AB
in (mm)
CP
in (mm)
D
in (mm)
E
in (mm)
J
in (mm)
L
in (mm)
O
in (mm)
56C
7.34 (186)
0.88 (22)
--
17.00 (432)
3.50 (89)
3.00 (76)
10.53 (267)
6.06 (154)
6.88 (175)
143TC
7.81 (198)
0.88 (22)
--
18.44 (468)
3.50 (89)
4.00 (102)
10.84 (275)
6.06 (154)
6.88 (175)
145TC
7.81 (198)
0.88 (22)
--
19.25 (489)
3.50 (89)
5.00 (127)
10.84 (275)
6.06 (154)
6.88 (175)
182TC
12.19 (310)
1.00 (25)
7.13 (181)
22.00 (559)
4.50 (114)
4.50 (114)
12.22 (310)
6.69 (170)
8.69 (221)
184TC
12.19 (310)
1.00 (25)
7.13 (181)
22.31 (567)
4.50 (114)
5.50 (140)
12.22 (310)
6.69 (170)
8.69 (221)
213TC
14.44 (367)
1.38 (35)
8.69 (221)
25.63 (651)
5.25 (133)
5.50 (140)
13.97 (355)
7.81 (198)
10.25 (260)
215TC
14.44 (367)
1.38 (35)
8.69 (221)
26.19 (665)
5.25 (133)
5.50 (140)
13.97 (355)
7.81 (198)
10.25 (260)
256TC
14.69 (373)
1.38 (35)
9.63 (245)
30.03 (763)
6.25 (159)
10.00 (254)
14.59 (371)
8.44 (214)
12.88 (327)

*AA = Conduit Size

Fluid Head

MODEL
SUCTION
in (mm)
DISCHARGE
in (mm)
X
in (mm)
Y
in (mm)
Z
in (mm)
C-216
2 (51) or 2.5 (63)
1.5 (38)
4.50 (114)
1.91 (49)
3.69 (94)

"S" Clamp connections only.

NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.

60 Hz - 1750 RPM Curves:

2" x 1.5" x 6" Model C-216 - 60 Hz Pump Curve, 95-07066 PDF || PDF

2.5" x 1.5" x 6" Model C-216 - 60 Hz Pump Curve, 95-07067 PDF || PDF

60 Hz - 3500 RPM Curves:

2" x 1.5" x 6" Model C-216 - 60 Hz Pump Curve, 95-07057 PDF || PDF

2.5" x 1.5" x 6" Model C-216 - 60 Hz Pump Curve, 95-07058 PDF || PDF

50 Hz - 1450 RPM Curves:

2" x 1.5" x 6" Model C-216 - 50 Hz Pump Curve, 95-07094 PDF || PDF

50 Hz - 2900 RPM Curves:

2" x 1.5" x 6" Model C-216 - 50 Hz Pump Curve, 95-07098 PDF || PDF


Model C-218

Unit Width Height

FRAME
A
in (mm)
AA
in (mm)
AB
in (mm)
CP
in (mm)
D
in (mm)
E
in (mm)
J
in (mm)
L
in (mm)
O
in (mm)
145TC
7.81 (198)
0.88 (22)
--
19.44 (494)
3.50 (89)
5.00 (127)
10.91 (277)
6.31 (160)
6.88 (175)
182TC
12.19 (310)
1.00 (25)
7.13 (181)
21.94 (557)
4.50 (114)
4.50 (114)
12.28 (312)
6.94 (176)
8.69 (221)
184TC
12.19 (310)
1.00 (25)
7.13 (181)
22.50 (572)
4.50 (114)
5.50 (140)
12.28 (312)
6.94 (176)
8.69 (221)
213TC
14.44 (367)
1.38 (35)
8.69 (221)
25.06 (637)
5.25 (133)
5.50 (140)
13.28 (337)
7.31 (186)
10.25 (260)
215TC
14.44 (367)
1.38 (35)
8.69 (221)
25.88 (657)
5.25 (133)
7.00 (178)
13.28 (337)
7.31 (186)
10.25 (260)
256TC
14.69 (373)
1.38 (35)
9.63 (245)
29.72 (755)
6.25 (159)
10.00 (254)
14.66 (372)
8.19 (208)
12.88 (327)
284TSC
20.63 (524)
2.00 (51)
13.13 (334)
32.25 (819)
7.00 (178)
9.50 (241)
15.28 (388)
8.81 (224)
14.63 (372)
286TSC
20.63 (524)
2.00 (51)
13.13 (334)
32.25 (819)
7.00 (178)
11.00 (279)
15.28 (388)
8.81 (224)
14.63 (372)

*AA = Conduit Size

Fluid Head

MODEL
SUCTION
in (mm)
DISCHARGE
in (mm)
X
in (mm)
Y
in (mm)
Z
in (mm)
C-218
2.00 (51) or 3.00 (76)
1.50 (38)
5.50 (140)
1.91 (49)
4.75 (121)

"S" Clamp connections only.

NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.

Note: Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

60 Hz - 1750 RPM Curves:

2" x 1.5" x 8" Model C-218 - 60 Hz Pump Curve, 95-07068 PDF || PDF

3" x 1.5" x 8" Model C-218 - 60 Hz Pump Curve, 95-07069 PDF || PDF

60 Hz - 3500 RPM Curves:

2" x 1.5" x 8" Model C-218 - 60 Hz Pump Curve, 95-07059 PDF || PDF

3" x 1.5" x 8" Model C-218 - 60 Hz Pump Curve, 95-07060 PDF || PDF

50 Hz - 1450 RPM Curves:

2" x 1.5" x 8" Model C-218 - 50 Hz Pump Curve, 95-07095 PDF || PDF

50 Hz - 2900 RPM Curves:

2" x 1.5" x 8" Model C-218 - 50 Hz Pump Curve, 95-07099 PDF || PDF


Model C-328

Unit Width Height

FRAME
A
in (mm)
AA
in (mm)
AB
in (mm)
CP
in (mm)
D
in (mm)
E
in (mm)
J
in (mm)
L
in (mm)
O
in (mm)
182TC
12.19 (310)
1.00 (25)
7.13 (181)
22.63 (575)
4.50 (114)
4.50 (114)
13.09 (332)
7.25 (184)
8.69 (221)
184TC
12.19 (310)
1.00 (25)
7.13 (181)
23.19 (589)
4.50 (114)
5.50 (140)
13.09 (332)
7.25 (184)
8.69 (221)
213TC
14.44 (367)
1.38 (35)
8.69 (221)
25.75 (654)
5.25 (133)
5.50 (140)
14.09 (358)
7.63 (194)
10.25 (260)
215TC
14.44 (367)
1.38 (35)
8.69 (221)
26.31 (668)
5.25 (133)
7.00 (178)
14.09 (358)
7.63 (194)
10.25 (260)
256TC
14.69 (373)
1.38 (35)
9.63 (245)
30.41 (772)
6.25 (159)
10.00 (254)
15.47 (393)
8.50 (216)
12.88 (327)
284TSC
20.63 (524)
2.00 (51)
13.13 (334)
32.94 (837)
7.00 (178)
9.50 (241)
16.09 (409)
9.13 (232)
14.63 (372)
286TSC
20.63 (524)
2.00 (51)
13.13 (334)
32.94 (837)
7.00 (178)
11.00 (279)
16.09 (409)
9.13 (232)
14.63 (372)
324TSC
23.13 (588)
2.00 (51)
14.13 (359)
35.44 (900)
8.00 (203)
10.50 (267)
17.16 (436)
9.69 (246)
16.50 (419)
326TSC
23.13 (588)
2.00 (51)
14.13 (359)
35.44 (900)
8.00 (203)
12.00 (305)
17.16 (436)
9.69 (246)
16.50 (419)

*AA = Conduit Size

Fluid Head

MODEL
SUCTION
in (mm)
DISCHARGE
in (mm)
X
in (mm)
Y
in (mm)
Z
in (mm)
C328
3.00 (76) or 4.00 (102)
2.00 (51)
5.50 (140)
2.22 (56)
4.75 (121)

"S" Clamp connections only.

NOTE: Dimensions are for guidance purposes only. Contact your WCB Representative if more detailed measurements are needed.

Note: Waukesha Cherry-Burrell (WCB) curves are intended for use as an aid for preliminary selection of pumps by trained and qualified engineers. All selections must be reviewed by authorized WCB personnel prior to placing an order. WCB is not responsible for unauthorized or incorrect selections resulting from the use of these curves.

60 Hz - 1750 RPM Curves:

3" x 2" x 8" Model C-328 - 60 Hz Pump Curve, 95-07070 PDF || PDF

4" x 2" x 8" Model C-328 - 60 Hz Pump Curve, 95-07071 PDF || PDF

60 Hz - 3500 RPM Curves:

3" x 2" x 8" Model C-328 - 60 Hz Pump Curve, 95-07061 PDF || PDF

4" x 2" x 8" Model C-328 - 60 Hz Pump Curve, 95-07062 PDF || PDF

50 Hz - 1450 RPM Curves:

3" x 2" x 8" Model C-328 - 50 Hz Pump Curve, 95-07096 PDF || PDF

50 Hz - 2900 RPM Curves:

3" x 2" x 8" Model C-328 - 50 Hz Pump Curve, 95-07100 PDF || PDF

Downloads
Brochures
C-Series - Sanitary Centrifugal Pump ID-7032 GB
Manuals
C-Series User Manual 95-03008-IEC US
